Designed to meet the highest expectations and standards of today's extreme PC enthusiasts and system builders while pushing the limit of clean and reliable power delivery system utilizing advanced circuitry design that can only be found on Toughpower Grand series of high-efficiency power supplies. Smart cable management not only enables professional-looking system build, but also accelerates airflow through the computer case for highly efficient heat dissipation. All of the above are achieved while enabling the Toughpower Grand power supply to deliver 1200W of continuous power output even operating in 50C environment, making it the Toughest power supply on the block.

Features

• Compliance with Intel ATX 12V 2.3 & SSI EPS 12V 2.92 standards.


• 80 PLUS Gold certified – extreme efficiency PSU series with 87-92% efficiency @ 20-100% load to cut down electric cost.


• 24/7 @ 50°C: Guaranteed to deliver 1200W continuous power.


• Pure aesthetic design with uncompromising performance.


• Proprietary dual ball bearing 14cm flower-shape fan enables longer lifespan and lowers overall noise output by dramatically reducing bearing frictions.


• 100% 105°C (221°F ) Japanese made electrolytic capacitors: the foundation of a robust and reliable power source even under the harshest operating environment.


• Double-forward switching circuitry: offers low power loss and high reliability.


• Unparalleled DC to DC converter provides highest efficiency, most stable performance, and perfect regulation.


• 3oz PCB design reduces heat generation and allows greater efficiency.


• Robust & dedicated +12V output: comes with dual +12V rails design providing up to 40A for 12V1 and 85A for 12V2.


• FanDelayCool Technology allows 14cm fan to continue to operate 15-30 sec after system shuts-down to ensure all components are properly cooled.


• Multi-GPU ready: comes with 8 x PCI-E 6+2pin for cutting-edge gaming machine.


• Auto switching circuitry for universal AC input from 90-264V.


• Active Power Factor Correction (PFC) with PF value of 0.95 at full load.


• High reliability: MTBF>120,000 hours.


• DIMENSION: 5.9”(W) x 3.4”(H) x 7.1” (L);150mm(W) x 86mm(H) x 180mm(L)


• Built-in industry grade protections : Over Current, Over Power, Over Voltage, Under Voltage and Short-Circuit protection.


• Safety / EMI Approvals: CE, TUV, FCC, UL, CUL, GOST and BSMI certified.

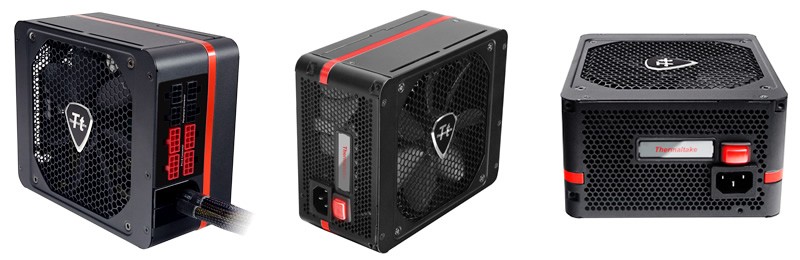

Pure Aesthetic Outer Chassis The Toughpower Grand series' unparalleled aesthetic exterior design has set itself above other PSUs currently available on the market. The Toughpower Grand series certainly is one of the Thermaltake's innovate hallmarks

Proprietary flower shape 14cm fan
Enables longer lifespan and lowers overall noise output by dramatically reducing bearing frictions
The unique fan blade shape increases airflow and reduce overall noise level.
The patented flower-shape fan edge reduces up to 3% of total noise output.

High Quality Japanese Made Electrolytic & Solid Capacitors
Toughpower Grand features 105C/221 Japanese made electrolytic capacitors and solid State capacitors with low ESR, which greatly improves the durability and offers the highest stability and reliability.

DC-DC Converter & Double Forward Circuit
Unparalleled DC to DC converters for 3.3V & 5V outputs reaches high efficiency and double forward circuit offers low power loss and high reliability
