SKU: 992-06322A
  • Efficiency up to 92%
  • 1 x +12V Rail
  • 8 x 6+2-pin PCI-E
  • MTBF: 120,000 hours
  • Dimensions: 150mm(W) x 86mm(H) x 160mm(D)
Our Price: Login to see price
Discontinued - Not orderable


Specifications

Efficiency
Up to 92%
Fans
1 x 140mm
MTBF
120,000 hours
Protection
OVP, SCP, OPP, UVP, OTP,OCP
Version Support
ATX 12V v2.4 and EPS v2.92
Current
12A
Frequency
50Hz - 60Hz
Output Power
1050W
Output Voltage

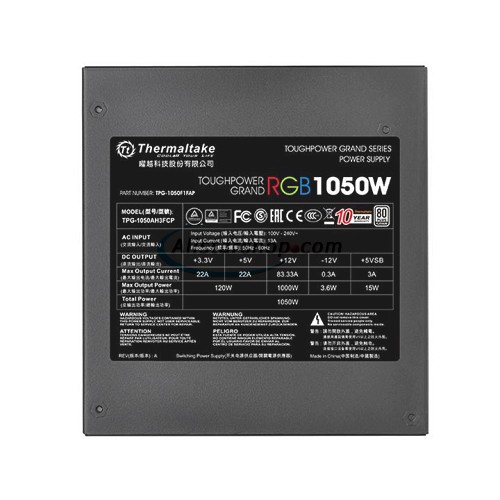

Output VoltageOutput Current
+3.3V22A
+5V22A
+12V183.83A
-12V0.3A
+5Vsb3A
Input Voltage
100V – 240V~
Connectors
  • 1 x 24-pin Main Power
  • 2 x 4+4-pin ATX12V
  • 12 x SATA
  • 8 x 6+2-pin PCI-E
  • 4 x Molex
  • 1 x FDD
Dimensions
150mm(W) x 86mm(H) x 160mm(D)
Certifications & Standards
80 PLUS Platinum

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Package Contents

  • Power Supply
  • Power cord
  • Modular Cables
