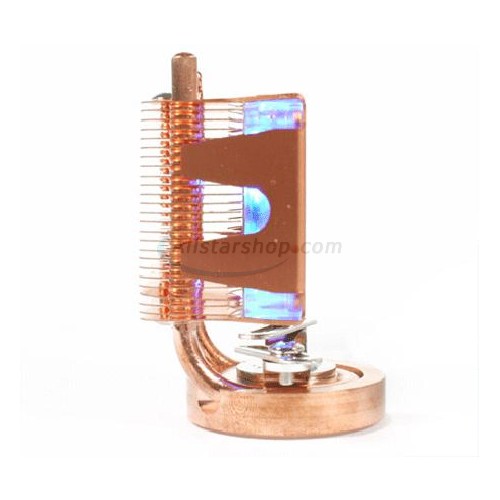

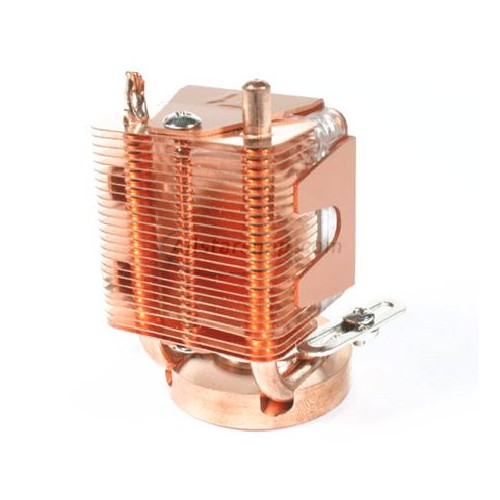

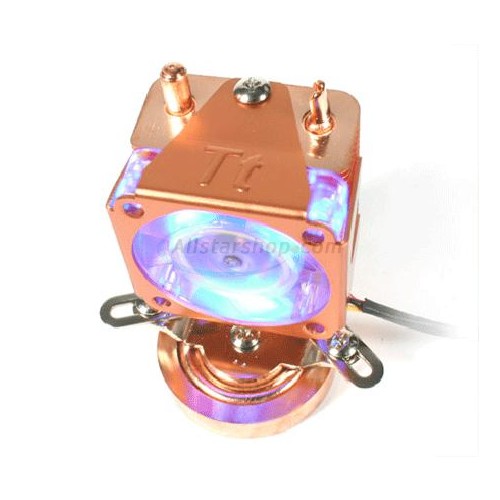

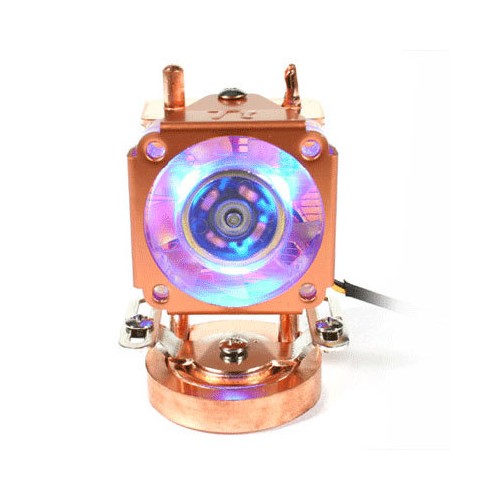

Thermaltake CL-C0034 Extreme Spirit II Chipset Cooler

Thermaltake CL-C0034 Extreme Spirit II Chipset Cooler - (Discontinued)

Support: (800)988-1088

Thermaltake CL-C0034 Extreme Spirit II Chipset Cooler - (Discontinued)

SKU:	960-63062A

Heatpipe technology provide efficient cooling
40x40x10mm Silent LED fan, 19dBA
All copper structure provides effective heat conductivity and dissipation

Our Price:	Login to see price
Discontinued	- Not orderable

What's New

: Thermaltake Versa H16 TG ARGB Micro Tower Chassis

: Thermaltake Versa H16 TG ARGB Snow Micro Tower Chassis

Thermaltake Extreme Spirit II chipset cooler is designed for cooling Northbridge chipset on the motherboard. It is built with copper with heatpipe technology providing efficient cooling.

Silent LED fan
A universal clip design fix all motherboard
Heatpipe technology provide efficient cooling
Seamless soldering process provides best contact for heat transfer
All copper structure provides effective heat conductivity and dissipation
Multi-direction installation (Rotatable clip can adjust to any direction for the best system air flow)

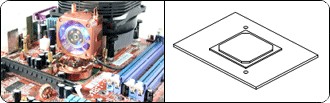

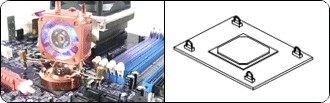

Application

Mounting holes

Anchor clips

Description

Thermaltake Extreme Spirit II chipset cooler is designed for cooling Northbridge chipset on the motherboard. It is built with copper with heatpipe technology providing efficient cooling.

Silent LED fan
A universal clip design fix all motherboard
Heatpipe technology provide efficient cooling
Seamless soldering process provides best contact for heat transfer
All copper structure provides effective heat conductivity and dissipation
Multi-direction installation (Rotatable clip can adjust to any direction for the best system air flow)

Application

Mounting holes

Anchor clips

Specifications

Air Flow

3.47 CFM

Fan Diameter

40mm

Fan Speed

4500 rpm - ±10%

Mounting Type

Clip Mount

Connectors

3-pin TX3

Weight

5.96 oz

Material

Copper Heatsink

Copper Heat Pipe

Dimensions

1.89" x 1.57" x 2.76" - Heatsink

1.57" x 1.57" x 0.39" - Fan

Application/Usage

Chipset

Additional information

Started Voltage: 7 V

Rated Voltage: 12 V

Power Input: 1.20 W

Rated Current: 0.1 A

Air Pressure: 1.61 mm H₂O

Compatibility

All Nortbridge Chipsets

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Warranty Length: 3 years
Warranty Provider: Thermaltake
Service Contact:
1. First 30-day from invoice date: Allstarshop On-line RMA Request
2. After 30-day from invoice date: Contact Thermaltake at (800)988-1088 Or visit Thermaltake customer service online.
Technical Support: Thermaltake (800)988-1088 or visit Thermaltake technical support online.
