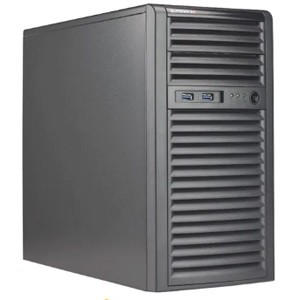

SKU: 850-11737F
  • LGA1200 Xeon E-2300
  • Max 128GB DDR4 3200MHZ ECC (4 DIMMs)
  • 2 x 5.25", 4 x 3.5" SATA Bays - Fix - RAID 0, 1, 5, 10
  • 1x PCIe x16, 2x PCIe x8, 1x PCIe x4
Our Price: Login to see price
Availability: Usually ships within 1-2 business days


Specifications

Server Case Form Factor
Mini Tower
Processor
  • Intel Xeon E-2300 Processor & 10th Gen Intel Pentium Processor
  • Single (Not Included)
Chipset
Intel C252
Bios
UEFI
Type of Memory Supported
DDR4-3200/2933/2666MHz ECC UDIMM
Installed Memory
0
Maximum Memory Supported
128GB
Number of Memory Slots
4
Slots
  • 1 x PCIe 4.0 x16 (max x8)
  • 1 x PCIe 4.0 x8
  • 1 x PCIe 4.0 x8 (max x4)
  • 1 x PCie 3.0 x4 (max x2)
Rear I/O Ports
  • 2 x USB 3.2 Gen1 Type-A ports
  • 2 x USB 2.0 port
  • 1 x VGA port
  • 2 x RJ45 LAN
  • 1 x Dedicated BMC LAN
  • 1 x Serial port
Video
ASPEED AST2600
LAN
  • 2 x Intel I210 Gigabit LAN
  • 1 x IPMI Dedicated LAN
SATA / SAS
6 x SATA 6Gb/s
Ext. Drive Bays
2 x 5.25"
Int. Drive Bays
4 x 3.5"
Power
400W Gold Level Certified High-Efficiency Power Supply
Dimensions
7.25" x 16.75" x 14.25" (W x D x H)
Motherboard Manufacturer
Supermicro X12STL-F
Manageability
IPMI KVM over LAN

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

  • Warranty Length: 1 year
  • Warranty Provider: Allstarshop.com
  • Service Contact: Allstarshop On-line RMA Request.
  • Technical Support: Supermicro (408) 503-8000 or visit Supermicro technical support online.

Compatible Accessories

CPU

Intel Xeon E-2324G 4-Core 3.1GHz LGA1200 w/8MB cache CPU (BOX)
  • 4x Cores/ 4x Threads / Turbo Boost: 4.6 GHz
  • Intel UHD Graphics P750: 350MHz / 1300 MHz
  • TDP: 65 W
  • 20x PCIe 4.0 Lanes
  • Heatsink/Fan Not Included
Manufacturer: Intel
Mfg P/N: BX80708E2324G
Availability: Usually ships with 1-2 business days
Intel Xeon E-2334 4-Core 3.4GHz LGA1200 w/8MB cache CPU (BOX)
  • 4x Cores/ 8x Threads / Turbo Boost: 4.8 GHz
  • TDP: 65 W
  • 20x PCIe 4.0 Lanes
  • Heatsink/Fan Not Included
Manufacturer: Intel
Mfg P/N: BX80708E2334
Availability: Usually ships with 1-2 business days
Intel Xeon E-2336 6-Core 2.9GHz LGA1200 w/12MB cache CPU (BOX)
  • 6x Cores/ 12x Threads / Turbo Boost: 4.8 GHz
  • TDP: 65 W
  • 20x PCIe 4.0 Lanes
  • Heatsink/Fan Not Included
Manufacturer: Intel
Mfg P/N: BX80708E2336
Availability: Usually ships with 1-2 business days
Intel Xeon E-2374G 4-Core 3.7GHz LGA1200 w/8MB cache CPU (BOX)
  • 4x Cores/ 8x Threads / Turbo Boost: 5.0 GHz
  • Intel UHD Graphics P750: 350MHz / 1300 MHz
  • TDP: 80 W
  • 20x PCIe 4.0 Lanes
  • Heatsink/Fan Not Included
Manufacturer: Intel
Mfg P/N: BX80708E2374G
Availability: Usually ships with 1-2 business days
Intel Xeon E-2378G 8-Core 2.8GHz LGA1200 w/16MB cache CPU (BOX)
  • 8x Cores/ 16x Threads / Turbo Boost: 5.1 GHz
  • Intel UHD Graphics P750: 350MHz / 1300 MHz
  • TDP: 80 W
  • 20x PCIe 4.0 Lanes
  • Heatsink/Fan Not Included
Manufacturer: Intel
Mfg P/N: BX80708E2378G
Availability: Usually ships with 1-2 business days

Memory

Kingston 8GB DDR4-3200 ECC CL22 SRx8 288-pin UDIMM
  • PC4-25600
  • single-rank x8
  • Thermal Sensor on DIMM
  • ECC UDIMM
Manufacturer: Kingston
Mfg P/N: KSM32ES8/8HD
Availability: Usually ships same day

Cooling

Supermicro SNK-P0051AP4 4U Active Heatsink for LGA1155/1150/1151
  • 4U Active CPU Heat Sink
  • Socket LGA1155/1150/1151
  • 3,800 RPM
Manufacturer: Supermicro
Mfg P/N: SNK-P0051AP4
Availability: Usually ships with 1-2 business days
