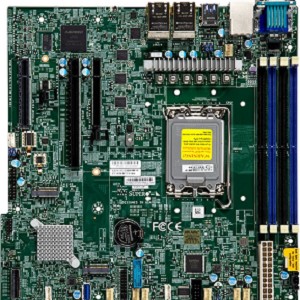

Supermicro X13SCH-LN4F C266 LGA1700 mATX motherboard

Support: (408) 503-8000

Supermicro X13SCH-LN4F C266 LGA1700 mATX motherboard

SKU:	800-11741E

Max 128GB / 4 Dimm DDR5-4800 ECC UDIMM
8x SATA 6Gb/s, 2x M.2 / RAID 0, 1, 5, 10
Up to 5x USB 3.2 G1, 6x USB 2.0
1x PCIe 5.0 x16, 2x PCIe 4.0 x8

Our Price:	Login to see price
Availability:	Temporarily out of stock

Accessories

: Intel Xeon 6315P 4C/4T 2.8 GHz w/ 12M LGA16A CPU (Tray)

: Intel Xeon 6325P 4C/8T 3.5 GHz w/ 12M LGA16A CPU (Tray)

: Intel Xeon 6333P 6C/12T 3.1 GHz w/ 18M LGA16A CPU

Built with the Intel PCH C266 chipset, the X13SCH-LN4F supports an Intel Xeon 6300 series / E-2400 series processor and up to 128GB DDR5 ECC UDIMM memory. It features one PCIe 5.0, two PCIe 4.0 slots, up to 8 SATA 3.0 connections via SlimSAS, two M.2 slots in the 2280/22110 form factors, Quad Gigabit Ethernet with Intel i210 and a Trusted Platform Module (TPM) header.

Description

Specifications

CPU Support

Intel Xeon 6300 series / E-2400 series processor

Number of Processor (s)

Single (Not Included)

Chipset

Intel C266

System Bios

AMI 32MB AMI UEFI

Number of Memory Slots

Type of Memory Supported

DDR5 ECC UDIMM

Maximum RAM

128GB

Back Panel I/O

2 x USB 3.2 Gen1 Type-A ports
2 x USB 2.0
1 x VGA
4 x RJ45 LAN
1 x RJ45 Dedicated IPMI LAN
1 x Serial port

Number of PCI/PCI Express Slots

1 x PCIe 5.0 x16
2 x PCIe 4.0 x8 (Max x4)

Integrated SATA/SAS

8 x SATA via Slimline SAS x8 connector

Integrated SATA/SAS RAID

RAID 0, 1, 5, 10

# of M.2 Ports

2 x M.2 with M key, type 2280/22110 support PCIe 4.0 x4 mode

Integrated Audio

N/A

Integrated Video

ASPEED AST2600

Integrated LAN

Quad Intel i210 Gigabit Ethernet
Dedicated LAN for IPMI

IPMI

ASPEED AST2600 BMC

USB

2 x USB 3.2 Gen1 Type-A ports on Back Panel I/O
3 x USB 3.2 Gen1 Type-A ports via header
2 x USB 2.0 on Back Panel I/O
4 x USB 2.0 via headers

Serial/Parallel Ports

1 x Serial port on Back Panel I/O
1 x Serial port via header

Form Factor

Micro-ATX

Dimensions

9.6" x 9.6"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Warranty Length: 1 year
Warranty Provider: Supermicro
Service Contact:
1. First 30-day from invoice date: Allstarshop On-line RMA Request
  This item is returnable for replacement only. It can only be exchanged with the same item.
2. After 30-day from invoice date: Contact Supermicro at (408) 503-8000 Or visit Supermicro customer service online.
Technical Support: Supermicro (408) 503-8000 or visit Supermicro technical support online.
