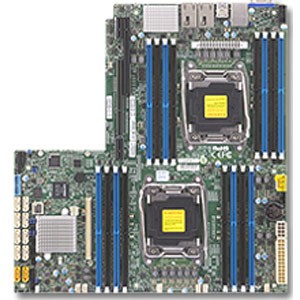

Supermicro MBD-X10DRW-i -O X10DRW-i C612 XEON DDR4 eATX Server Board

Supermicro X10DRW-i C612 XEON DDR4 eATX Server Board - (Discontinued)

Support: (408) 503-8000

Supermicro X10DRW-i C612 XEON DDR4 eATX Server Board - (Discontinued)

SKU:

800-11777

Max 1TB / 16 Dimm DDR4 2133/1866/1600MHz ECC Registered
10x SATA 6Gb/s / RAID 0, 1, 5, 10
Up to 2x USB 3.0, 4x USB 2.0
1 x PCIe X32, 1x PCIe X16
Integrated IPMI 2.0 with KVM and Dedicated LAN

Our Price:	Login to see price
Discontinued	- Not orderable

Accessories

: Supermicro SC116AC2-R706WB 1U Rackmount w/ 2x 700W PSU

Dual socket R3 (LGA 2011) Supports Intel Xeon processor E5-2600 v4, v3 family
Intel C612 chipset
Up to 1TB ECC DDR4 2133MHz; 16x DIMM slots
Riser card support:
- Left side - 1 PCI-E 3.0 x32
- Right side - 1 PCI-E 3.0 x16
Intel i350-AM2 Dual port GbE LAN
10x SATA3 (6Gbps); RAID 0, 1, 5, 10
Integrated IPMI 2.0 and KVM with Dedicated LAN

Chassis (Optimized for X10DRW-i )
1U Chassis:

SC113TQ-600WB
SC113TQ-R700WB
SC116AC-R700WB
SC116AC2-R706WB
SC116TQ-R700WB
SC815TQ-600WB
SC815TQ-R706WB

2U Chassis:

SC213A-R740WB
SC825TQ-R740WB
SC826BA-R920WB

Description

Dual socket R3 (LGA 2011) Supports Intel Xeon processor E5-2600 v4, v3 family
Intel C612 chipset
Up to 1TB ECC DDR4 2133MHz; 16x DIMM slots
Riser card support:
- Left side - 1 PCI-E 3.0 x32
- Right side - 1 PCI-E 3.0 x16
Intel i350-AM2 Dual port GbE LAN
10x SATA3 (6Gbps); RAID 0, 1, 5, 10
Integrated IPMI 2.0 and KVM with Dedicated LAN

Chassis (Optimized for X10DRW-i )
1U Chassis:

SC113TQ-600WB
SC113TQ-R700WB
SC116AC-R700WB
SC116AC2-R706WB
SC116TQ-R700WB
SC815TQ-600WB
SC815TQ-R706WB

2U Chassis:

SC213A-R740WB
SC825TQ-R740WB
SC826BA-R920WB

Specifications

CPU Support

Intel Xeon processor E5-2600 v4
Intel Xeon processor E5-2600 v3

Number of Processor (s)

Dual (Not Included)

Chipset

Intel C612

System Bios

128Mb SPI Flash EEPROM with AMI BIOS

Number of Memory Slots

Type of Memory Supported

Maximum RAM

Back Panel I/O

4 x USB 2.0
1 x 15-pin VGA
2 x RJ45 LAN ports
1x RJ45 Dedicated IPMI LAN port

Number of PCI/PCI-Express Slots

Left side - 1 PCI-E 3.0 x32
Right side - 1 PCI-E 3.0 x16

Integrated SATA/SAS

10 x SATA 6Gb/s

Integrated SATA/SAS RAID

SATA: RAID 0, 1, 5, 10

Integrated Audio

Not Available

Integrated Video

ASPEED AST2400 BMC

Integrated LAN

Intel i350-AM2 Dual Port Gigabit Ethernet
1x Realtek RTL8211E PHY (dedicated IPMI)

IPMI

IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

USB

4 x USB 3.0 on Back Panel I/O
2 x USB 3.0 ports via headers

IEEE 1394

Not Available

Serial/Parallel Ports

1 x Serial port via header

PS/2 Ports

Not Available

Form Factor

E-ATX
Proprietary WIO

Dimensions

12.3" x 13"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Warranty Length: 1 year
Warranty Provider: Supermicro
Service Contact:
1. First 30-day from invoice date: Allstarshop On-line RMA Request
  This item is returnable for replacement only. It can only be exchanged with the same item.
2. After 30-day from invoice date: Contact Supermicro at (408) 503-8000 Or visit Supermicro customer service online.
Technical Support: Supermicro (408) 503-8000 or visit Supermicro technical support online.

Compatible Accessories

Chassis

Supermicro SC116AC2-R706WB 1U Rackmount w/ 2x 700W PSU

Motherboard: E-ATX, ATX, micro-ATX
10 x 2.5" Hot-swap SAS/SATA HD bays
700W Gold Level Redundant Power
4 x 40mm 14.4K RPM Fans
SAS3 12Gb/s direct attached storage HDD backplane

Manufacturer: Supermicro

Mfg P/N: CSE-116AC2-R706WB

Availability: Lead time: 1 week
