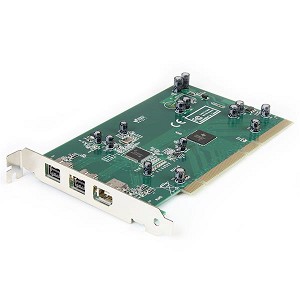

SKU: 459-17400
  • 2 x FireWire 800 Ports (Transfer rate up to 800 Mbps)
  • 1 x FireWire 400 Ports (Transfer rate up to 400 Mbps)
  • Plug and Play
Our Price: Login to see price
Availability: Temporarily out of stock


Specifications

Host Interface
PCI
Data Transfer Rate
  • 800Mbps FireWire 800 Maximum
  • 400Mbps FireWire 400 Maximum
  • Platform Support
  • PC
  • Mac
  • Ports
  • 1 x 6-pin Female IEEE 1394a - FireWire 400
  • 2 x 9-pin Female IEEE 1394b - FireWire 800
  • Form Factor
    Full-length Plug-in Card
    Shipping Dimensions
    1.75" Height x 6" Width x 8.5" Depth
    Shipping Weight
    0.66 lb
    Additional information
  • Auto detects connected devices and automatically configures data transfer speeds
  • Supports IEEE-1394b and is backwards compatible with 1394a-2000 and 1394-1995 standards
  • System Requirements
  • An available PCI slot (supports 32 and 64-bit, and 3.3v and 5v interfaces)
  • Optical drive (CD or DVD-ROM) for software installation
  • Note: A 64-bit PCI slot is required for a 800 Mbits/sec. data transfer rate.

    Compatibility
  • Plug and Play

    OS Support:

  • Windows 98SE
  • Windows Me
  • Windows 2000
  • Windows XP
  • Windows 2003
  • Mac OS 10.2.4 and up
  • Certifications & Standards
  • Safety Standards Europe: CE
  • Safety Standards International: UL
  • Safety Standards North America: FCC
  • Standards Compliancy:
    • PCI 2.2
    • OHCI
    • IEEE-1394B
    • IEEE-1394A
    • IEEE-1394

    The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

    Warranty and Service

    • Warranty Length: Limited Lifetime Warranty
    • Warranty Provider: StarTech
    • Service Contact:
      1. First 30-day from invoice date: Allstarshop On-line RMA Request
      2. After 30-day from invoice date: Contact StarTech at (519) 455-4931
    • Technical Support: StarTech (519) 455-4931

    Package Contents

    • 1 x FireWire 800 PCI Card
    • 1 x FireWire 9-pin to 6-pin cable (5 foot)
    • 1 x Installation CD
    • 1 x Instruction Manual
    • 1 x Ulead VideoStudio Software CD
