SKU: 310-18740A
  • GPU: 3060 MHz Boost / Memory: 20Gbps
  • Max Resolution: 7680 x 4320 (Digital)
  • 12.99" x 5.06" x 2.59" / Slot Width: 3.2 Slots
  • Recommended PSU: 750W / 3x 8-pin Power Connector
  • 2x HDMI / 2x DisplayPort 2.1a
Our Price: Login to see price
Availability: Usually ships within 1-2 business days


Specifications

Controller
AMD Radeon RX 9070 XT
Bus Type
PCIe 5.0 x16
Memory
16GB 256-bit GDDR6
Memory Clock
20 Gbps Effective
Engine Clock
  • Boost Clock: Up to 3060 MHz
  • Game Clock: Up to 2520MHz
Stream Processors
4096
# of Monitors Supported
4
Max Resolution
7680 × 4320
Connector (s)
  • 2 x HDMI
  • 2x DisplayPort 2.1a
Power Connectors
3 x 8-pin
Dimensions
330.8 x 128.5 x 65.68mm (L x W x H)
Power Requirements
  • Minimum 750 Watt
  • 12V-2x6(H++) Power Connector (3x8-pin power adapter is also included

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

  • Warranty Length: 2 years
  • Warranty Provider: Sapphire
  • Service Contact:
    1. First 30-day from invoice date: Allstarshop On-line RMA Request
    2. After 30-day from invoice date: Contact Sapphire at (909) 594-0597
  • Technical Support: Sapphire (909) 594-0597

Package Contents

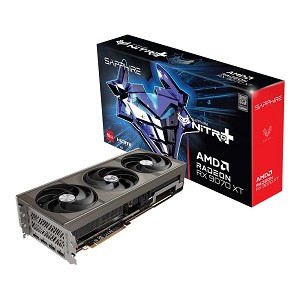

  • Sapphire NITRO+ AMD Radeon RX 9070 XT
  • L-Shape Support Bracket
  • 3pin 5V ARGB Cable
  • Magnetic Backplate
  • 12V-2x6(H++) to PCI Express 3x8-pin power adapter
