SKU: 459-17032
  • 3 x 1394b (9-pin) Ports for multiple FireWire connections
  • Supports serial bus data transfer rates up to 800 Mb/s
Our Price: $53.95
List Price: $69.00 You save: $15.05
Availability: Temporarily out of stock
  Alert Me | Alternatives?



Specifications

General Information
Brand Name
SIIG
Manufacturer
SIIG, Inc
Manufacturer Part Number
NN-FW0012-S1
Package Type
Retail
Packaged Quantity
1
Product Model
NN-FW0012-S1
Product Name

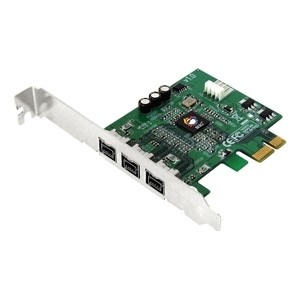

NN-FW0012-S1 2 Port FireWire Adapter
Product Type
FireWire Adapter
Interfaces/Ports
Number of FireWire/i.LINK 800 Ports
3
Total Number of FireWire/i.LINK Ports
3
Miscellaneous
Additional information
  • Provides 3 FireWire 800 ports (9-pin) for multiple device connections
  • Works with DV camcorders, FireWire hard disks, digital cameras, scanners, CD-RW/DVD drives, video game systems, & other audio/video devices
  • Installs in standard height or low profile chassis with included brackets
  • Compliant with IEEE 1394b & backward compatible with 1394a-2000 and 1394-1995 standards
  • Compliant with PCI Express Base Specification Revision 1.0a
  • Installs in any available PCI Express slot and supports serial bus data transfer rates of 100, 200, 400, 800 Mbps
  • Hot-swapping allows you to connect/detach devices without first turning your system off
  • Onboard power connector to provide more reliable power source
Assembly Required
No
Country of Origin
China
Green Compliance Certificate/Authority
China RoHS
Green Compliant
Yes
Platform Supported
Mac
Physical Characteristics
Color
Green
Depth
3.3"
Form Factor
Plug-in Card
Height
4.8"
Thickness
750 mil
Weight (Approximate)
2.40 oz
Technical Information
Host Interface
PCI Express x1
Warranty
Limited Warranty
Lifetime

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

  • Warranty Length: Limited Lifetime Warranty
  • Warranty Provider: SIIG
  • Service Contact:
    1. First 30-day from invoice date: Allstarshop On-line RMA Request
    2. After 30-day from invoice date: Contact SIIG at
  • Technical Support: SIIG

Package Contents

  • NN-FW0012-S1 2 Port FireWire Adapter
  • Spare low profile bracket
  • Y-split power cable
  • Driver CD
  • User's manual
