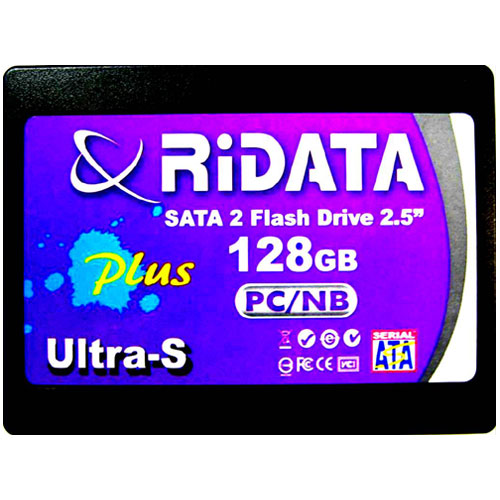

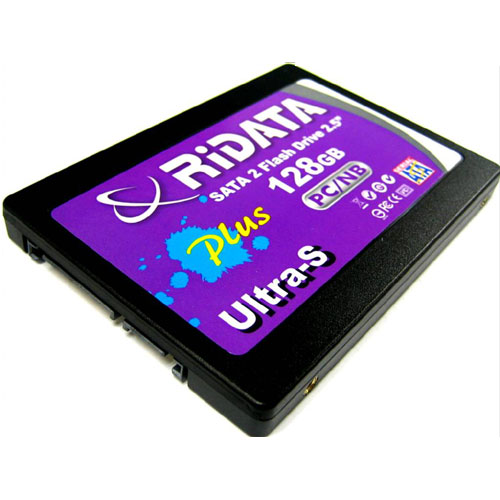

The Ridata Ultra-S PLUS series is designed for high computing performance in a variety of harsh environments. The Ridata 128 GB Ultra-S PLUS SSD is a flash-based alternative to a hard drive. It features no moving parts and a sustained read time of up to 120MB/s and a sustained write time of up to 80MB/s. For continuing data integrity the card also offers static wear leveling.

• Virtually no heat generation


• No acoustic noise or vibration


• Data Safety


• High Reliability


• Low power consumption


• Enhanced endurance by static wear-leveling


• S.M.A.R.T (Self-Monitoring, Analysis and Reporting Technology)functions


• Bad block management


• RoHS Compliant

Ideal applications for the Ultra-S Series include: Laptop (Notebook ) computer, Industrial, Medical Equipment, Defense, First Response, Aerospace and Avionics.

Product Specifications

• Host Interface: SATA (1.5Gb / 3 Gb/s)


• Form Factor: 2.5" SSD


• Connector:

  • 7-pin signal segment


  • 15-pin power segment SATA connector.


• Flash: MLC (Multi Level Cell) NAND Flash


• Capacity: 128GB


• Data Transfer Speed

  • Max Seq Read - up to 152 MB/s


  • Max Seq Write - up to 93MB/s


• Environment: 0-70˚ C

• Reliability: Mean Time Between Failure (MTBF) > 1,000,000 hrs


• Safety: ECC correction - Built in ECC corrects up to 3 rndom 12-bit symbols of error per 512-byte sector


• Write endurance: P/E cycle > 1,000,000 times
