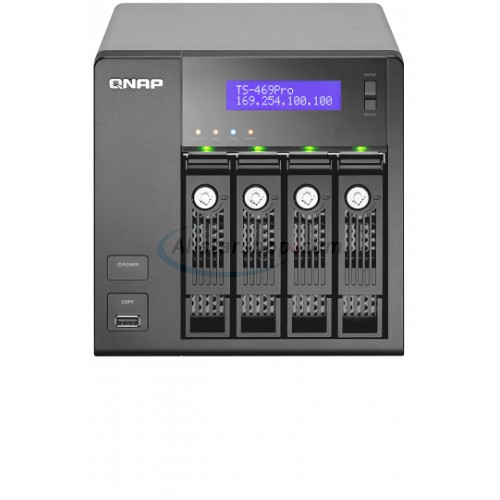

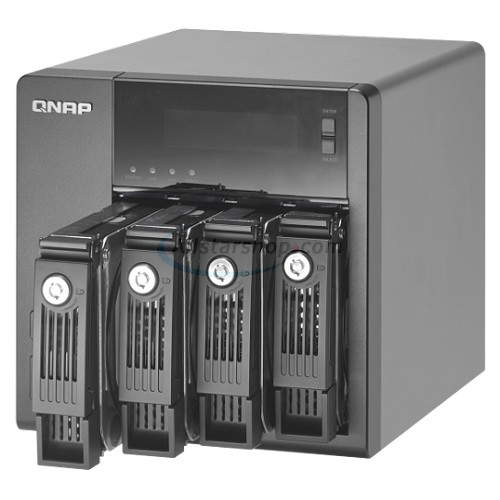

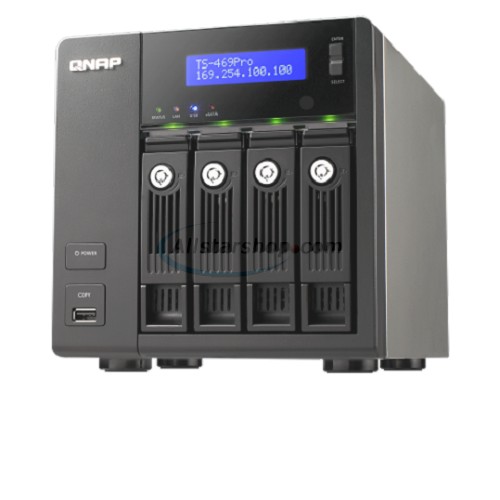

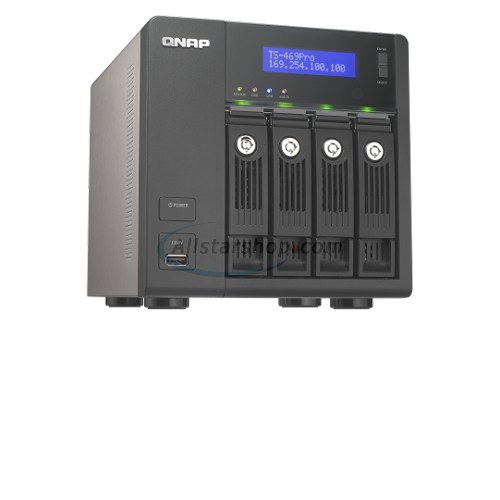

SKU: 210-27127
  • Diskless - Supports up to 4 x 3.5" or 2.5" SATA HDD/SSD
  • Intel Atom 2.13GHz Dual-Core CPU / 1GB RAM
  • RAID 0, 1, 5, 5+hot spare, 6, 6+hot spare, 10, 10+hot spare, single, and JBOD
  • VMware Ready and Citrix Ready
  • 2 x Gigabit RJ-45 / 5 x USB 2.0 / 2 x USB 3.0 / 2 x eSATA
Our Price: Login to see price
Discontinued - Not orderable


Specifications

General Information
Manufacturer
QNAP Systems
Manufacturer Part Number
TS-469-PRO-US
Manufacturer Website Address
Brand Name
QNAP
Product Model
TS-469 Pro
Product Type
Network Storage Server
Storage
RAID Levels
  • 6
  • 5
  • 10
  • 0
  • JBOD
  • 1
  • 5+Hot Spare
  • Clustering Supported
    Yes
    Processor & Chipset
    Processor
    Intel Atom D2700 Dual-core (2 Core) 2.13 GHz
    Memory
    Standard Memory
    1 GB DDR3 SDRAM
    Maximum Memory
    3 GB DDR3 SDRAM
    Network & Communication
    Network Cards
    Gigabit Ethernet IEEE 802.3ab 10/100/1000Mbps RJ-45
    I/O Expansions
    Bays
  • 4 x Hot-swappable Total
  • 4 x Hot-swappable Free
  • Interfaces/Ports
    Interfaces/Ports
  • 5 x USB 2.0 - USB
  • HDMI
  • 2 x 7-pin - eSATA
  • 2 x RJ-45 - Network
  • 15-pin HD-15 - VGA
  • 2 x USB 3.0 - USB
  • Software
    Operating System
    Linux
    Management & Protocols
    Protocols
  • SFTP
  • iSCSI
  • IPv4
  • LDAP
  • TCP/IP
  • FTP
  • DDNS
  • SSL/TLS
  • AFP 3.1
  • Telnet
  • CHAP
  • AFP 3.2
  • NAT
  • FXP
  • Bonjour
  • DFS
  • SMTP
  • CIFS/SMB
  • WEBDAV
  • NFS
  • SNMPv2
  • DHCP
  • RSync
  • SSH
  • HTTP
  • SNMPv3
  • IPP
  • IPv6
  • NTLMv2
  • HTTPS
  • AFP
  • SNMP
  • UPnP
  • Management

    Disk Management:

    • Online RAID Capacity Expansion & Online RAID Level Migration
    • Bad Block Scan & HDD S.M.A.R.T
    • Global Spare Drive
    • AES 256-bit Volume-based Encryption
    • RAID Recovery
    • Bitmap Support
    • Supports ISO Mounting (via Web File Manager)

    Power Management:

    • Wake on LAN
    • Scheduled Power on/off (Max 15 settings)
    • Automatic Power on after Power Recovery

    Access Right Management:

    • Max User Accounts: 4,096
    • Max Groups: 512
    • Max. Share Folder: 512
    • Batch Creating Users
    • Import/Export Users
    • User Quota Management
    • Subfolder Permissions Support
    Power Description
    Input Voltage
  • 110 V AC
  • 220 V AC
  • Power Supply
    250 W
    Physical Characteristics
    Height
    7.0"
    Depth
    9.3"
    Form Factor
    Tower
    Weight (Approximate)
    8.00 lb
    Miscellaneous
    Green Compliant
    Yes
    Green Compliance Certificate/Authority
    RoHS

    The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

    Warranty and Service

    • Warranty Length: 2 years
    • Warranty Provider: QNAP
    • Service Contact:
      1. First 30-day from invoice date: Allstarshop On-line RMA Request
      2. After 30-day from invoice date: Contact QNAP at (909)595-2819
    • Technical Support: QNAP (909)595-2819

    Package Contents


    • TS-469 Pro Network Storage Server
    • 2 x Ethernet Cable
    • 12 x Flat Head Screw (for 2.5" HDD)
    • 16 x Flat Head Screw (for 3.5" HDD)
    • 1 x Hard Disk Lock
    • Power Cord
    • Quick Installation Guide
    • CD-ROM
