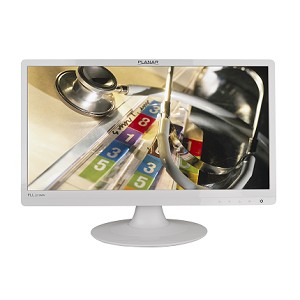

SKU: 331-26008B
  • Resolution: 1920 x 1080
  • Brightness: 250 cd/m2
  • Contrast Ratio: 1000:1
  • Response Time: 5 ms
  • DVI-D / VGA
Our Price: Login to see price
Discontinued - Not orderable


Specifications

Viewable Area
22"
Brightness
250 Nit
Contrast Ratio
1000:1
Response Time
5 ms
Viewing Angle
  • Horizontal: 170°
  • Vertical: 160°
    • Pixel Pitch
    0.24825
    Resolution
    1920 x 1080
    Analog Input
    15-pin D-sub
    Digital Input
    DVI-D
    HDMI Input
    No
    Built-in Speakers
    Yes
    Built-in USB Hub
    No
    Built-in TV Tuner
    No
    Pivot Function
    No
    Power Consumption
    25W
    Wall Mount (VESA)
    100 x 100mm
    General Information
    Manufacturer
    Planar Systems, Inc
    Manufacturer Part Number
    997-6404-00
    Manufacturer Website Address
    www.planar.com
    Brand Name
    Planar
    Product Model
    PLL2210MW
    Product Type
    LCD Monitor
    Technical Information
    Number of Screens
    1
    Screen Mode
    Full HD
    Screen Surface
    Anti-glare
    Maximum Response Time
    5 ms
    Aspect Ratio
    16:9
    Horizontal Viewing Angle
    170°
    Vertical Viewing Angle
    160°
    Adjustable Display Angle
    Yes
    Backlight Technology
    LED
    HDCP Supported
    Yes
    Video
    Standard Refresh Rate
    75 Hz
    Color Supported
    16.7 Million Colors
    Audio
    Speakers
    Yes
    Interfaces/Ports
    DVI
    Yes
    VGA
    Yes
    Headphone
    Yes
    Built-in Devices
    Built-in Devices
    Speaker
    Power Description
    Input Voltage
  • 110 V AC
  • 220 V AC
    • Operating Power Consumption
    25 W
    Standby Power Consumption
    500 mW
    Physical Characteristics
    VESA Mount Compatible
    Yes
    VESA Mount Standard
    100 x 100
    Color
    White
    Height
    12.6"
    Depth
    1.9"
    Height with Stand
    15.35"
    Width with Stand
    20"
    Depth with Stand
    7"
    Weight (Approximate)
    7 lb
    Miscellaneous
    Certifications & Standards
    • cTUVus
    • CE
    • FCC-B
    Platform Supported
  • Mac
  • PC
    • Green Compliant
    Yes
    Green Compliance Certificate/Authority
    RoHS

    The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

    Warranty and Service

    • Warranty Length: 1 year
    • Warranty Provider: Planar
    • Service Contact:
      1. First 30-day from invoice date: Allstarshop On-line RMA Request
      2. After 30-day from invoice date: Contact Planar at 866-752-6271
    • Technical Support: Planar 866-752-6271

    Package Contents

    • PLL2210MW Widescreen LCD Monitor
    • Power Cord
    • VGA Cable
    • DVI Cable
    • Audio Cable
    • User's Guide
