SKU: 992-16401
  • 83% efficiency / 80 plus Certified / nVidia SLI Certified
  • 1 x +12V rail
  • 2 x 6-pin PCI-E & 2 x 6+2-pin PCI-E connectors
  • MTBF: 100,000 hours
  • ATX12V / EPS12V
Our Price: Login to see price
Discontinued - Not orderable


Specifications

Efficiency
83%
Fans
Ball Bearing Single
MTBF
100000Hour
Holdup Time
16 ms
Protection Type
  • Over Current
  • Over Voltage
    • Current
  • 0.8A @ -12V DC - Output Current
  • 3A @ 5V DC - Standby - Output Current
  • 24A @ 3.3V DC - Output Current
  • 60A @ 12V DC - Output Current
  • 30A @ 5V DC - Output Current
    • Frequency
    47 Hz to 63 Hz
    Output Power
    750 W
    Output Voltage
    Output VoltageOutput CurrentRegulation
    +3.3V24A+3,-3%
    +5V30A+3,-3%
    +12V160A+3,-3%
    -12V0.8A+5,-5%
    +5Vsb3A+3,-3%
    Input Voltage
    90V AC to 264V AC
    Additional information
  • Up to 90% (10dB) Less Noise per Watt
  • High Efficiency (83%); .99 Active PFC
  • Rock-Solid, Super-Clean DC Output
  • Automatic Fan Speed Control Circuit

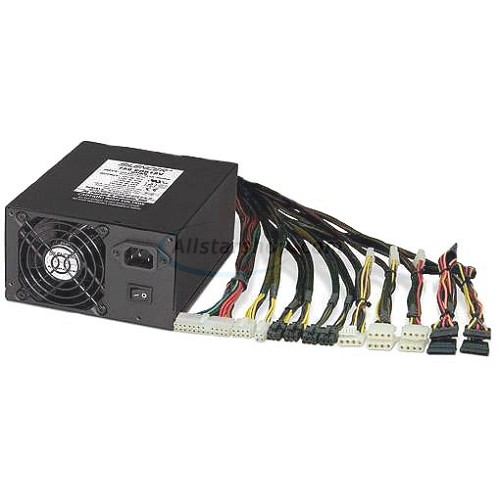

    • Connectors
  • 1 x 24-pin ATX Motherboard
  • 2 x 6-pin PCI-E
  • 1 x 4-pin ATX12V Motherboard
  • 6 x Serial ATA
  • 8 x Molex
  • 1 x LP4 Peripheral Device
  • 1 x 8-pin EPS12V Motherboard
  • 2 x 8-pin PCI-E
    • Certifications & Standards
  • NVIDIA SLI

    • EMI:

  • FCC-B
  • CE

    • Agency Approval:

  • UL
  • ULC
  • CE
  • CB
  • RoHS

    • The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

    Warranty and Service

    • Warranty Length: 5 years
    • Warranty Provider: PC Power & Cooling
    • Service Contact:
      1. First 30-day from invoice date: Allstarshop On-line RMA Request
      2. After 30-day from invoice date: Contact PC Power & Cooling at (800) 722-6555
    • Technical Support: PC Power & Cooling (800) 722-6555
