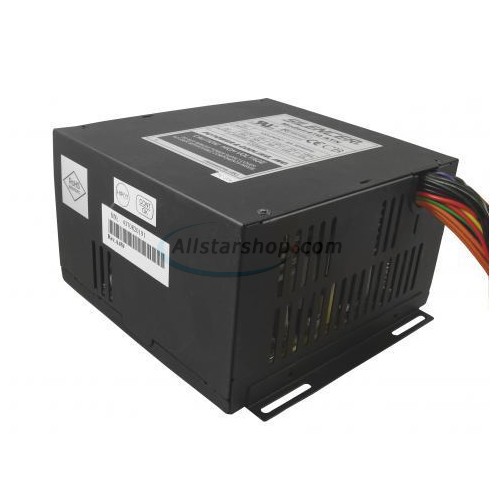

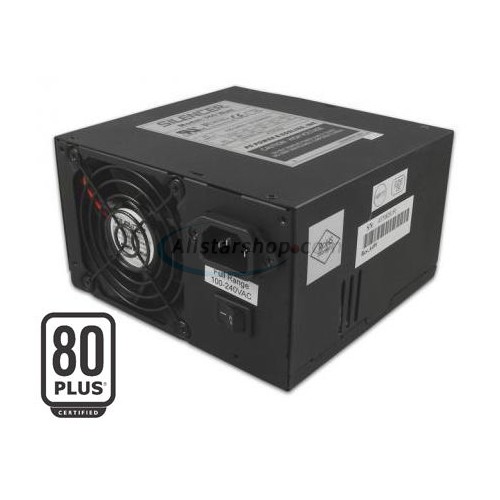

PC Power & Cooling Silencer PPCS420X 420W ATX12V PSU

PC Power & Cooling Silencer PPCS420X 420W ATX12V PSU - (Discontinued)

Support: (800) 722-6555

PC Power & Cooling Silencer PPCS420X 420W ATX12V PSU - (Discontinued)

SKU:

992-16404

82% efficiency / 80 plus Certified
1 x +12V rail
1 x 6-pin PCI-E connector
MTBF: 100,000 hours
ATX12V

Our Price:	Login to see price
Discontinued	- Not orderable

What's New

: Asus Prime GeForce RTX 5080 16GB GDDR7 OC PCIe 5.0 Video Card

: Asus Prime RTX 5070 TI 16GB GDDR7 OC PCIe 5.0 Video Card

: Gigabyte B850 AORUS ELITE WIFI7 AMD B850 AM5 ATX Motherboard

Part of the award-winning Ultra-Quiet Silencer Series, the economical Silencer 420W ATX power supply has a premium quality fan and low-turbulence circuitry that reduces audible noise by up to 90% (10db). With legendary PC Power & Cooling performance and reliability, the Silencer 420W ATX power supply strikes a perfect balance between power, reliability, and acoustics.

Output Connectors

20+4-pin Main Power x 1


4-pin Peripheral x 6	4-pin Floppy x 1	SATA x 3	4-pin 12V x 1	6-pin PCI-Express x 1

Description

20+4-pin Main Power x 1


4-pin Peripheral x 6	4-pin Floppy x 1	SATA x 3	4-pin 12V x 1	6-pin PCI-Express x 1

Specifications

Efficiency

82%

MTBF

100,000 hours

Current

Frequency

47~63Hz

Output Power

420W

Output Voltage

Output Voltage	Output Current	Regulation
+3.3V	20A	+5,-5%
+5V	20A	+5,-5%
+12V1	30A	+5,-5%
-12V	0.8A	+10,-10%
+5Vsb	2.5A	+5,-5%

Connectors

1 x 20+4-pin Main Connector 1 x 4-pin 12V Connector 1 x 6-pin PCI-E Connector 3 x SATA Connector 6 x Peripheral Connector 1 x Floppy Connector

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Warranty Length: 5 years
Warranty Provider: PC Power & Cooling
Service Contact:
1. First 30-day from invoice date: Allstarshop On-line RMA Request
2. After 30-day from invoice date: Contact PC Power & Cooling at (800) 722-6555
Technical Support: PC Power & Cooling (800) 722-6555
