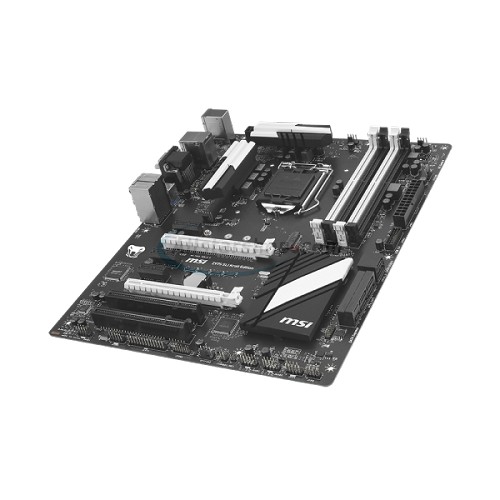

MSI Z97S SLI KRAIT Z97 LGA1150 ATX motherboard - (Discontinued)

Support: (626) 913-0828

MSI Z97S SLI KRAIT Z97 LGA1150 ATX motherboard - (Discontinued)

SKU:	800-14008C

Integrated Intel Graphics - DVI / HDMI / VGA
Max 32GB / 4 Dimm DDR3 1866/1600/1333
1x SATAe, 4x SATA 6Gb/s, 1x M.2 / RAID 0, 1, 10, 5
Up to 6x USB 3.0, 8x USB 2.0
2x PCIe X16, 3x PCIe X1, 2x PCI

Our Price:	Login to see price
Discontinued	- Not orderable

Accessories

: WD Blue 1TB 7200RPM 64MB Buffer SATA 6Gb/s HDD

: LG 24X Dual Layer DVD±RW Drive - SATA (Black/OEM)

Looking for that creative, one-off build? Black & White design makes a system look classic, sophisticated and full of class. Famous case modders around the world cheer for our design choices. The Z97S SLI Krait Edition supports the 4th and 5th Gen Intel Core processors for LGA 1150 Socket.

PUSH YOUR SSD TO THE LIMIT
Enjoy a blazing fast system boot up and insanely fast loading of applications and games with selected MSI motherboards. We offer the next generation of high speed storage support through M.2 and SATA Express. M.2 and SATA Express transfer data through a PCI Express 2.0 x2 interface up to 10 Gb/s, making it 67% faster than SATA 3.0 solutions.

Faster storage solutions with M.2
M.2 is the successor to mSATA, offering a 67% performance increase up to 10 Gb/s. M.2 is packed in a small form factor and is compatible with 3 different sizes to fit most storage solutions.

Flexible fast storage with SATA Express
SATA Express introduces a new solution in high speed storage through PCI Express, providing more bandwidth for the latest generation SSDs. We offer flexible solutions with a M.2 to SATA Express converter for more convenience

OPTIMIZED FOR MULTIPLE GRAPHICS CARDS
MSI motherboards feature one or more PCI Express 3.0 slots, perfectly aligned and with enough space for an optimal airflow when using multiple graphics cards. That way, you will never have to worry about an overheating PC, while you are enjoying the best graphics jumping off from your monitor when running Nvidia SLI or AMD CrossFire gaming setup

MILITARY CLASS 4
Military Class 4 is the next step in high quality components. The Dark Choke and Solid CAP will make sure that your PC runs more stable under extreme gaming conditions.

SUPER FERRITE CHOKES
uper Ferrite Chokes use a Ferrite core that is Super-Permeable. This allows the Super Ferrite Chokes to run at a 35 degree Celsius lower temperature, have a 30% higher current capacity, a 20% improvement in power efficiency and better overclocking power stability.

DARK CHOKE
Dark Choke uses the special core design and allows the Dark Choke to run at a lower temperature with higher capacity and better power efficiency and stability.

Description

Specifications

CPU Support

Socket 1150 for 4th and 5th generation Intel Core processors

Number of Processor (s)

Single (Not Included)

Chipset

Intel Z97 chipset

Video card slot

PCIe 3.0 X16

Number of Memory Slots

Type of Memory Supported

240-pin DDR3 1600/1333 MHz Non-ECC, Un-buffered Memory

Maximum RAM

32GB

Back Panel I/O

1 x PS/2 keyboard/mouse
4 x USB 3.0
2 x USB 2.0
1 x DVI-D
1 x D-Sub
1 x HDMI
1 x RJ45 LAN port
1 x Audio I/O

Number of PCI/PCI-Express Slots

2 x PCIe 3.0/2.0 x16 (Single at x16, dual at x8/x8)
3 x PCIe 2.0 x1
2 x PCI

On-Board EIDE/Floppy

Integrated SATA/SAS

6 x SATA 6Gb/s, 2 ports from 1 x SATA Express

# of SATA Express Ports

1 x SATA Express compatible with 2 x SATA 6Gb/s

# of M.2 Ports

1 x M.2 Socket

Integrated SATA/SAS RAID

RAID 0, 1, 5 and 10

Integrated Audio

Realtek ALC892 8-Channel High Definition Audio CODEC

Integrated Video

Integrated Intel Graphics

Integrated LAN

Realtek 8111G Gigabit LAN

USB

4 x USB 3.0 ports on Back Panel I/O
2 x USB 3.0 ports via headers
2 x USB 2.0 ports on Back Panel I/O
4 x USB 2.0 ports via headers

IEEE 1394

Serial/Parallel Ports

1 x Serial port via header

PS/2 Ports

1 x PS/2 keyboard/mouse

Form Factor

ATX

Dimensions

12" x 9.6"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Warranty Length: 3 years
Warranty Provider: MSI
Service Contact:
1. First 30-day from invoice date: Allstarshop On-line RMA Request
  This item is returnable for replacement only. It can only be exchanged with the same item.
2. After 30-day from invoice date: Contact MSI at (626) 913-0828 Or visit MSI customer service online.
Technical Support: MSI (626) 913-0828 or visit MSI technical support online.

Package Contents

MSI Z97S SLI KRAIT Z97 LGA1150 PCIe 3.0 ATX motherboard
