MSI PRO B650-P WIFI Socket AM5 ATX Motherboard

Support: (626) 913-0828

MSI PRO B650-P WIFI Socket AM5 ATX Motherboard

SKU:	800-14067E

Integrated Radeon Graphics - HDMI / DisplayPort
Max 128GB / 4x DDR5 DIMM / Up to 4800
6x SATA 6GB/s, 2x M.2 / RAID 0, 1, 10
5x USB 3.2 G2 (2x USB-C), 4x USB 3.2 G1, 4x USB 2.0
2x PCIe 4.0 x16, 2x PCIe 3.0 x1

Our Price:	Login to see price
Availability:	Usually ships within 1-2 business days

Accessories

: AMD Ryzen 7 7700X 8-Core 4.5GHz /8MB cache AM5 CPU (Retail)

: AMD Ryzen 9 7900X 12-Core 4.7GHz /12MB cache AM5 CPU (Retail)

: Kingston Fury Beast 32GB Kit (2x16GB) DDR5-5200 CL36 288-pin DIMM

Specifications

CPU Support

AMD Ryzen 7000 series processors

Number of Processor (s)

Single (Not Included)

Chipset

AMD B650

System Bios

UEFI AMI BIOS

Video card slot

PCIe 4.0 x16

Number of Memory Slots

Type of Memory Supported

DDR5-4800

Maximum RAM

128GB

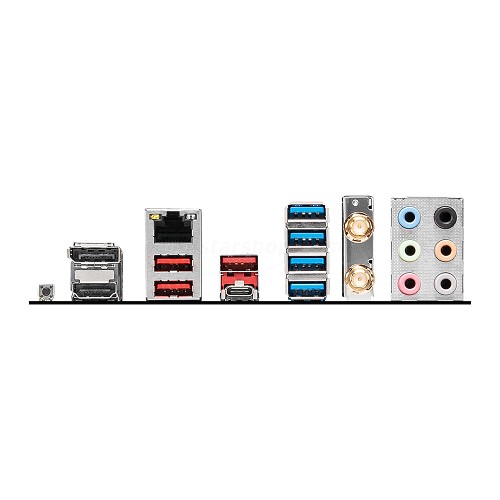

Back Panel I/O

1 x USB 3.2 Gen 2x2 Type-C port
3 x USB 3.2 Gen2 Type-A ports
2 x USB 3.2 Gen1 Type-A ports
1 x HDMI
1 x DisplayPort
1 x RJ45 LAN
1 x Audio I/O
2 x Antenna connectors

Number of PCI/PCI-Express Slots

1 x PCIe 4.0 x16
1 x PCIe 4.0 x16 (max x4)
2 x PCIe 3.0 x1

Integrated SATA/SAS

6 x SATA 6Gb/s

# of M.2 Ports

1 x M.2 socket, with M key, type 2280/22110 supports PCIe 4.0 x4 mode
1 x M.2 socket, with M key, type 2260/2280 supports PCIe 4.0 x4 mode

Integrated SATA/SAS RAID

RAID 0, 1, 10

Integrated Audio

Realtek ALC897 7.1 Surround Sound High Definition Audio CODEC

Integrated Video

Integrated Graphics from processor (Actual support may vary by CPU)

Integrated LAN

Realtek RTL8125BG 2.5 Gb Ethernet

Integrated Wifi

AMD Wi-Fi 6E & Bluetooth 5.2

USB

1 x USB 3.2 Gen 2x2 Type-C port on Back Panel I/O
1 x USB 3.2 Gen2 Type-C port via header
3 x USB 3.2 Gen2 Type-A ports on Back Panel I/O
2 x USB 3.2 Gen1 Type-A ports on Back Panel I/O
2 x USB 3.2 Gen1 Type-A ports via header
4 x USB 2.0 via headers

Form Factor

ATX

Dimensions

12" x 9.6"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Warranty Length: 3 years
Warranty Provider: MSI
Service Contact:
1. First 30-day from invoice date: Allstarshop On-line RMA Request
  This item is returnable for replacement only. It can only be exchanged with the same item.
2. After 30-day from invoice date: Contact MSI at (626) 913-0828 Or visit MSI customer service online.
Technical Support: MSI (626) 913-0828 or visit MSI technical support online.
