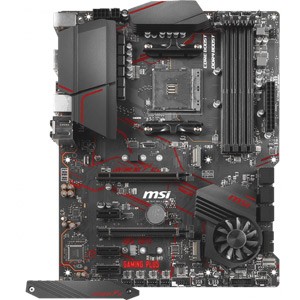

SKU: 800-14100C
  • Max 128GB / 4x DDR4 DIMM / Up to 4400(O.C.)
  • 6x SATA 6GB/s, 2x M.2 / RAID 0, 1, 10
  • Up to 2x USB 3.2 G2/G1 (1x USB-C), 8x USB 3.2 G1, 6x USB 2.0
  • 2x PCIe x16, 3x PCIe x1
Our Price: $171.50
List Price: $209.95 You save: $38.45
Availability: Temporarily out of stock
  Alert Me



Specifications

CPU Support
AMD AM4 3rd and 2nd Gen Ryzen processor
Number of Processor (s)
Single (Not Included)
Chipset
AMD X570
Video card slot
PCIe 4.0/3.0 x16
Number of Memory Slots
4
Type of Memory Supported
  • 3rd Gen AMD Ryzen: DDR4 4400(O.C) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3200 / 3000 / 2933 /2800 / 2666 / 2400 / 2133 MHz Un-buffered Memory
  • 2nd Gen AMD Ryzen: DDR4 3466(O.C.) /3200 / 3000 / 2933 /2800 / 2666 / 2400 / 2133 MHz Un-buffered Memory
Maximum RAM
128GB
Back Panel I/O
  • 1 x PS/2 keyboard/mouse combo port
  • 1 x USB 3.2 Gen 2 (3rd Gen Ryzen) / Gen 1 (2nd Gen Ryzen) Type-A port
  • 1 x USB 3.2 Gen 2 (3rd Gen Ryzen) / Gen 1 (2nd Gen Ryzen) Type-C port
  • 4 x USB 3.2 Gen 1 Type-A ports
  • 2 x USB 2.0 ports
  • 1 x HDMI
  • 1 x RJ45 LAN
  • 1 x Audio I/O
Number of PCI/PCI-Express Slots
  • 1 x PCIe x16:
    • 3rd Gen Ryzen: PCIe 4.0 x16
    • 2nd Gen Ryzen: PCIe 3.0 x16
    • 2nd Gen Ryzen with Radeon Vega Graphics: PCIe 3.0 x16 (x8 mode)
  • 1 x PCIe 4.0 x16 (max at x4 mode)
  • 3 x PCIe 4.0 x1
Integrated SATA/SAS
6 x SATA 6Gb/s
# of M.2 Ports
  • 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110:
    • 3rd Gen Ryzen: PCIE 4.0 x4 modes
    • 2nd Gen Ryzen: PCIE 3.0 x4
  • 1 x M.2_2 socket 3, with M Key, Type 2260/2280 PCIE 4.0 x4 and SATA modes storage devices support
Integrated SATA/SAS RAID
RAID 0, 1, 10
Integrated Audio
Realtek ALC1220 8-Channel High Definition Audio CODEC
Integrated Video
Integrated Graphics from processor (Actual support may vary by CPU)
Integrated LAN
Realtek 8111H Gigabit LAN
USB
  • 1 x USB 3.2 Gen 2 (3rd Gen Ryzen) / Gen 1 (2nd Gen Ryzen) Type-A port on Back Panel I/O
  • 1 x USB 3.2 Gen 2 (3rd Gen Ryzen) / Gen 1 (2nd Gen Ryzen) Type-C port on Back Panel I/O
  • 4 x USB 3.2 Gen 1 Type-A ports on Back Panel I/O
  • 4 x USB 3.2 Gen 1 Type-A ports via headers
  • 2 x USB 2.0 ports on Back Panel I/O
  • 4 x USB 2.0 ports via headers
PS/2 Ports
1 x PS/2 keyboard/mouse combo port
Form Factor
ATX
Dimensions
12" x 9.6"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.
