SKU: 800-14049E
  • Integrated Intel Graphics - HDMI / DisplayPort
  • Max 128GB / 4x DDR5 DIMM / Up to 6400 (O.C.)
  • 6x SATA 6Gb/s, 4x M.2 / RAID 0, 1, 5, 10
  • 5x USB 3.2 G2 (2x USB-C), 4x USB 3.2 G1, 6x USB 2.0
  • 1x PCIe 5.0 x16, 2x PCIe 3.0 x16, 1x PCIe x1
Our Price: Login to see price
Discontinued - Not orderable


Specifications

CPU Support
LGA1700 socket for 14th, 13th & 12th Generation Intel Core Processors
Number of Processor (s)
Single (Not Included)
Chipset
Intel Z690 chipset
System Bios
UEFI AMI BIOS
Video card slot
PCIe 5.0 x16
Number of Memory Slots
4
Type of Memory Supported
DDR5-6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 5000(O.C.) / 4800 Non-ECC, Un-buffered Memory
Maximum RAM
128GB
Back Panel I/O
  • 1 x USB 3.2 Gen 2x2 Type-C port
  • 3 x USB 3.2 Gen 2 Type-A port
  • 2 x USB 3.2 Gen 1 Type-A ports
  • 2 x USB 2.0 ports
  • 1 x HDMI
  • 1 x DisplayPort
  • 1 x RJ45 LAN
  • 2 x Antenna ports
  • 1 x Audio I/O
Number of PCI/PCI-Express Slots
  • 1 x PCIe 5.0 x16
  • 1 x PCIe 3.0 x16 (max x4)
  • 1 x PCIe 3.0 x16 (max x1)
  • 1 x PCIe 3.0 x1
Integrated SATA/SAS
6 x SATA 6Gb/s
# of M.2 Ports
  • 1 x M.2 socket, with M key, type 2242/2260/2280/22110 support PCIe 4.0 x4 mode
  • 1 x M.2 socket, with M key, type 2242/2260/2280 support PCIe 4.0 x4 mode
  • 1 x M.2 socket, with M key, type 2242/2260/2280 support PCIe 3.0 x4 & SATA mode
  • 1 x M.2 socket, with M key, type 2242/2260/2280 support PCIe 4.0 x4 mode
Integrated SATA/SAS RAID
RAID 0, 1, 5, 10
Integrated Audio
Realtek ALC4080 7.1 Surround Sound High Definition Audio CODEC
Integrated Video
Integrated Intel Graphics from processor
Integrated LAN
Intel I225-V 2.5G Ethernet
Integrated Wifi
802.11 a/b/g/n/ac/ax & Bluetooth 5.2
USB
  • 1 x USB 3.2 Gen 2x2 Type-C port on Back Panel I/O
  • 3 x USB 3.2 Gen 2 Type-A ports on Back Panel I/O
  • 1 x USB 3.2 Gen 2 Type-C port via header
  • 2 x USB 3.2 Gen 1 Type-A ports on Back Panel I/O
  • 2 x USB 3.2 Gen 1 Type-A ports via header
  • 2 x USB 2.0 ports on Back Panel I/O
  • 4 x USB 2.0 ports via headers
Form Factor
ATX
Dimensions
12" x 9.6"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Package Contents

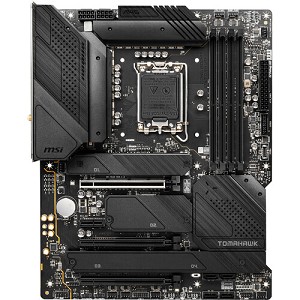

  • MSI MAG Z690 TOMAHAWK WIFI motherboard
  • User Guide
  • Support USB Drive
  • 2 x SATA cable
  • WiFi Antenna
  • M.2 clips
  • MSI Case Badge
  • MAG Stickers
  • Product Registration Card
  • MSI Product Catalog
