SKU: 800-14033E
  • Max 128GB / 4x DDR4 DIMM / Up to 4400+(O.C.)
  • 6x SATA 6GB/s, 2x M.2 / RAID 0, 1, 10
  • Up to 2x USB 3.2 G2 (1x USB-C), 5x USB 3.2 G1 (1x USB-C), 8x USB 2.0
  • 2x PCIe x16, 2x PCIe x1
Our Price: Login to see price
Availability: Temporarily out of stock


Specifications

CPU Support
  • AMD AM4 3rd Gen Ryzen processor
  • Not Compatible with AMD Ryzen 5 3400 G and Ryzen 3200 G
Number of Processor (s)
Single (Not Included)
Chipset
AMD B550
System Bios
AMI UEFI BIOS
Video card slot
PCIe 4.0/3.0 x16
Number of Memory Slots
4
Type of Memory Supported
DDR4 4400+(O.C) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3333(O.C.) / 3200 / 3000/ 2800 / 2666 / 2400 / 2133 MHz ECC and non-ECC, Un-buffered Memory
Maximum RAM
128GB

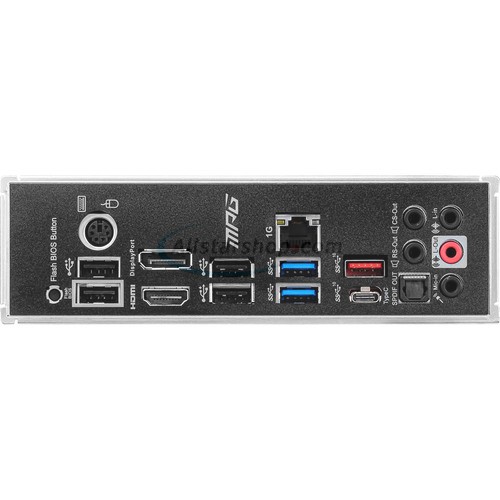

Back Panel I/O
  • 1 x PS/2 keyboard/ mouse
  • 1 x USB 3.2 Gen2 Type-A port
  • 1 x USB 3.2 Gen2 Type-C port
  • 2 x USB 3.2 Gen1 Type-A ports
  • 4 x USB 2.0 Type-A ports
  • 1 x DisplayPort
  • 1 x HDMI
  • 1 x RJ45 LAN
  • 1 x Audio I/O
Number of PCI/PCI-Express Slots
  • 1 x PCIe 4.0 x16
  • 1 x PCIe 3.0 x16 (Max x4)
  • 2 x PCIe 3.0 x1
Integrated SATA/SAS
6 x SATA 6Gb/s
# of M.2 Ports
  • 1 x M.2 socket 3, with M Key, Type 2242/2260/2280/22110 supports SATA & PCIE 4.0 x4 storage devices
  • 1 x M.2 socket 3, with M Key, Type 2242/2260/2280 supports PCIE 3.0 x4 storage devices
Integrated SATA/SAS RAID
RAID 0, 1, 10
Integrated Audio
Realtek ALC892 7.1 CH HD Audio Codec
Integrated Video
Integrated Graphics from processor (Actual support may vary by CPU)
Integrated LAN
Realtek 8111H Gigabit LAN
USB
  • 1 x USB 3.2 Gen2 Type-A port on Back Panel I/O
  • 1 x USB 3.2 Gen2 Type-C port on Back Panel I/O
  • 2 x USB 3.2 Gen1 Type-A ports on Back Panel I/O
  • 2 x USB 3.2 Gen1 Type-A ports via header
  • 1 x USB 3.2 Gen1 Type-C ports via header
  • 4 x USB 2.0 Type-A ports on Back Panel I/O
  • 4 x USB 2.0 Type-A ports via headers
PS/2 Ports
1 x PS/2 keyboard/ mouse
Form Factor
ATX
Dimensions
12" x 9.6"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Package Contents

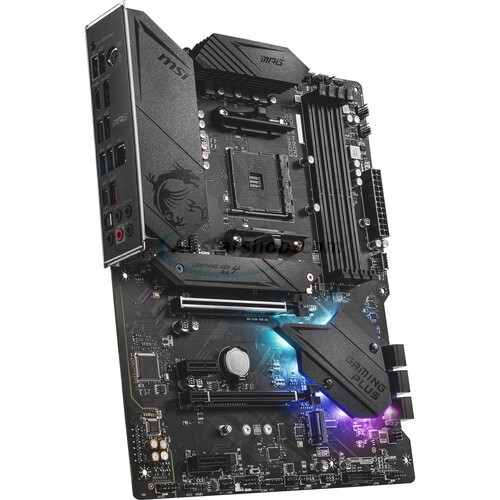

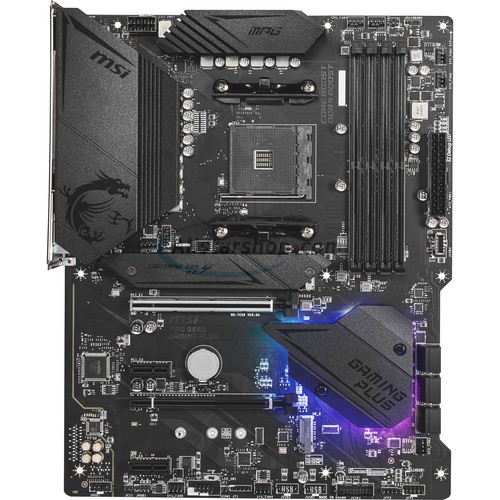

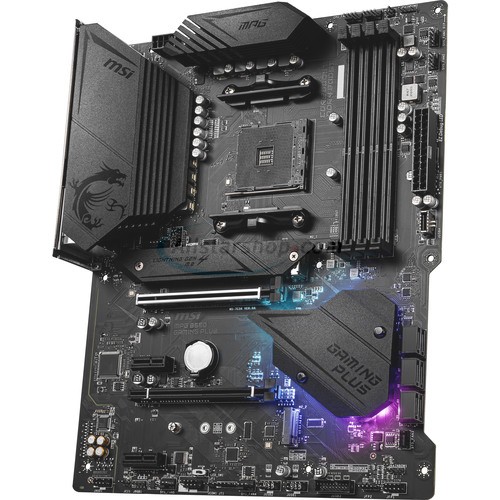

  • MSI MPG B550 GAMING PLUS motherboard
  • User manual
  • Quick installation guide
  • Driver DVD
  • 2 x SATA cables
