SKU: 455-82032D
  • Wireless Dual-Band N (2.4 or 5 GHz)
  • 3x Internal Antennas
  • WEP, WPA2, up to 128-bit encription
  • Optimized for streaming video & gaming

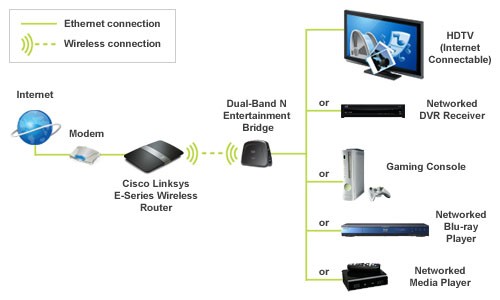

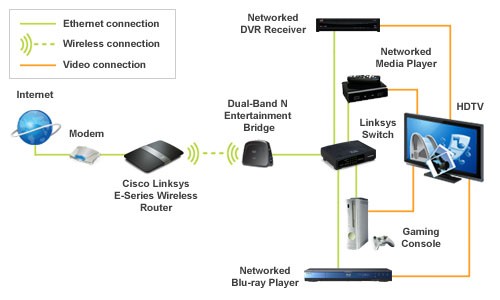

  • Convert wired devices to wireless
Our Price: Login to see price
Discontinued - Not orderable


Specifications

Wi-Fi Standard
IEEE 802.11n (draft)
ISM Band
Yes
UNII Band
Yes
ISM Maximum Frequency
2.4 GHz
UNII Maximum Frequency
5 GHz
Wireless Transmission Speed
54 Mbps
Depth
2 in
Height
4.2 in
Weight
5.6 oz
Form Factor
External
Networking
Connectivity Technology
Wireless, wired
Line Coding Format
CCK, 64 QAM, BPSK, QPSK, 16 QAM, OFDM
Data Link Protocol
IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n (draft 2.0)
Features
Auto-uplink (auto MDI/MDI-X), Wi-Fi Protected Setup (WPS)
Status Indicators
Port status, power
Antenna
Antenna
Internal integrated
Antenna Qty
3
Gain Level
1 dBi
Expansion / Connectivity
Interfaces
1 x network - Radio-Ethernet
1 x network - Ethernet 10Base-T/100Base-TX - RJ-45
Miscellaneous
Cables Included
1 x network cable
Compliant Standards
UL, cUL, ICES-003, RSS-210
Cables (Details)
1 x network cable
Encryption Algorithm
128-bit WEP, WPA2
Power
Power Device
Power adapter - external
Environmental Parameters
Min Operating Temperature
32 °F
Max Operating Temperature
104 °F
Humidity Range Operating
10 - 85%
Environmental Standards
EPA Energy Star Compliant
Yes
Manufacturer Warranty
Service & Support
1 year warranty
Service & Support Details
Limited warranty - 1 year

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

  • Warranty Length: 3 years
  • Warranty Provider: Cisco
  • Service Contact:
    1. First 30-day from invoice date: Allstarshop On-line RMA Request
    2. After 30-day from invoice date: Contact Cisco at 800 553 2447
  • Technical Support: Cisco 800 553 2447

Package Contents

  • Wireless-N Ethernet Bridge with Dual-Band
  • Setup Software and User Guide on CD-ROM
  • Quick Installation Guide
  • Network Cable
  • Power Adapter
