SKU: 330-20214A
  • Resolution: 1920 x 1080
  • Brightness: 250 cd/m2
  • Contrast Ratio: 5,000,000:1 (dynamic)
  • Response Time: 5ms
  • DVI-D / VGA
Our Price: Login to see price
Discontinued - Not orderable


Specifications

Viewable Area
23" Widescreen
Brightness
250 cd/m2
Contrast Ratio
5,000,000:1(DFC)
Response Time
5 ms
Viewing Angle
178°/178°
Pixel Pitch
0.265mm
Resolution
1920 x 1080
Horizontal Frequency
30~83kHz
Vertical Frequency
56~75Hz
Analog Input
VGA 15-pin D-sub
Digital Input
DVI-D
HDMI Input
No
Built in Speakers
2 x 1W (Hidden)
Built-in USB Hub
No
Built-in TV Tuner
No
Pivot Function
Yes
Power Consumption
35W
Dimensions
21.6" x 8.8" x 18.8" (W x D x H)
Wall Mount (VESA)
75mm x 75mm
Display Type
LCD display / TFT active matrix - LED backlight
TFT Technology
IPS
Built-in Devices
Stereo speakers
Depth
2.2 in
Height
13.2 in
Weight
8.2 lbs
Enclosure Color
Black
Display
Diagonal Size
23" - widescreen
Dot Pitch / Pixel Pitch
0.265 mm
Max Resolution
1920 x 1080
Video Format
1080p (FullHD)
Color Support
16.7 million colors
Max Sync Rate (V x H)
75 Hz x 83 kHz
Display Positions Adjustments
Height, pivot (rotation), swivel, tilt
OSD Languages
Hindi, Ukrainian, English, German, French, Italian, Portuguese, Polish, Finnish, Swedish, Russian, Spanish, Greek, Japanese, Chinese, Korean
Display Screen Coating
Anti-glare, hard coating
Tilt Angle
20
Swivel Angle
356
Height Adjustment
4.3 in
Signal Input
DVI-D, VGA
Image Aspect Ratio
16:9
Image Brightness
250 cd/m2
Image Contrast Ratio
5000000:1 (dynamic)
Image Max H-View Angle
178
Image Max V-View Angle
178
Video Input
Analog Video Signal
RGB
Digital Video Standard
Digital Visual Interface (DVI)
Audio Output
Type
Speaker(s) - stereo
Output Power / Channel
1 Watt
Expansion / Connectivity
Interfaces
1 x VGA - 15 pin HD D-Sub (HD-15)
1 x DVI-D - 24 pin digital DVI
Miscellaneous
Cables Included
1 x VGA cable
Flat Panel Mount Interface
Yes
Features
Wall mountable
Compliant Standards
FCC Class B certified, CE, UL, TUV GS, cUL, DDC-2B, ISO 13406-2, SEMKO, DDC/CI, RoHS, TCO Displays 5.0
Power
Voltage Required
AC 120/230 V
Power Consumption Operational
35 Watt
Power Consumption Stand by / Sleep
0.3 Watt
Environmental Standards
ENERGY STAR Qualified
Yes
Manufacturer Warranty
Service & Support
3 years warranty
Service & Support Details
Limited warranty - parts and labor - backlight - 3 years
Dimensions & Weight Details
Dimensions & Weight Details
Without stand - 21.6 in x 2.2 in x 13.2 in x 8.2 lbs
With stand - 21.6 in x 8.8 in x 18.8 in x 10.4 lbs

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Package Contents

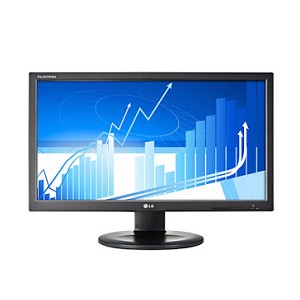

  • LG 23" Widescreen IPS LED Monitor
  • Power Cord
  • VGA Cable
  • User's Guide
