SKU: 992-21101AB
  • 70% efficiency
  • 2 x +12V rails
  • 2 x 6-pin PCI-E connectors
  • MTBF: 100,000 hours
  • ATX12V 2.2
Our Price: Login to see price
Discontinued - Not orderable


Specifications

Efficiency
70%
Fans
  • Ball Bearing single
  • 120mm
    • MTBF
    100,000 hours
    Protection
  • Over Current
  • Over Voltage
  • Short Circuit
    • Version Support
  • ATX 12V Ver. 2.2
    • Current
  • 6.8A @ 115V AC - Maximum - Input Current
  • 4.0A @ 230V AC - Maximum - Input Current
  • 1.0A to 21A @ 3.3V DC - Output Current
  • 1A to 26A @ 5V DC - Output Current
  • 0.5A to 16A @ 12V DC - V1 Output Current
  • 0.5A to 17A @ 12V DC - V2 Output Current
  • 0A to 0.6A @ -12V DC - Output Current
  • 0.1A to 2.0A @ 5V DC - StandbyOutput Current
    • Frequency
    47 Hz to 63 Hz
    Output Power
    450W Maximum
    Output Voltage
    Output VoltageMin. LoadMax. LoadRegulationNoise
    +3.3V1.0A21A+5,-5%50mV
    +5V1.0A26A+5,-5%50mV
    +12V10.5A16A+5,-5%120mV
    +12V20.5A17A+5,-5%120mV
    -12V0A0.6A+10,-10%120mV
    +5Vsb0.1A2.0A+5,-5%50mV
    Input Voltage
    115V AC to 230V AC
    Connectors
  • 1 x 4-pin SP4 Floppy Drive
  • 5 x 4-pin LP4 Peripheral Device
  • 2 x 5-pin SATA
  • 1 x 6-pin PCI-E
  • 1 x 20+4-pin ATX Motherboard
    • Dimensions
    5.3/4" (L) x 5 7/8" (W) x 3 3/8" (H)
    Certifications & Standards
    CB, CE, UL, FCC

    The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

    Warranty and Service

    • Warranty Length: 1 year
    • Warranty Provider: Kingwin
    • Service Contact:
      1. First 30-day from invoice date: Allstarshop On-line RMA Request
      2. After 30-day from invoice date: Contact Kingwin at (888) 588-5733
    • Technical Support: Kingwin (888) 588-5733

    Package Contents

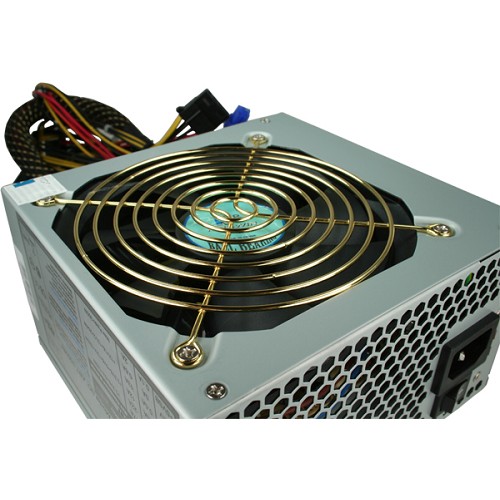

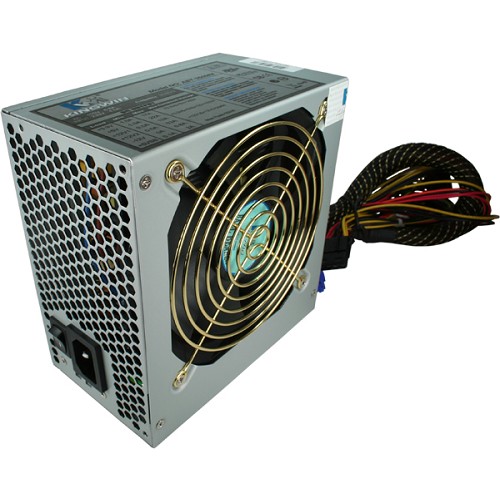

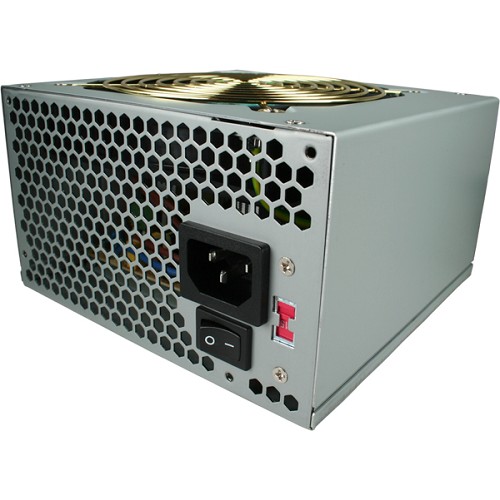

    • 1 Kingwin ABT-450MM Power Supply
