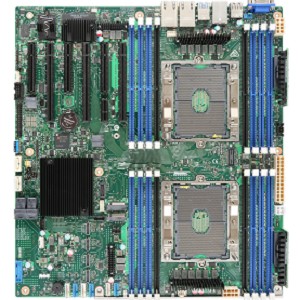

SKU: 800-28046C
  • Max 2TB / 16 DIMM DDR4 2933/2666/2400 MHz ECC Registered
  • 4x OCuLink, 2x SATA 6Gb/s, 2x M.2, 2x SFF-8643 / RAID 0, 1, 10
  • Up to 5x USB 3.0, 2x USB 2.0
  • 3x PCIe X16, 3x PCIe X8
Our Price: Login to see price
Discontinued - Not orderable


Specifications

CPU Support
  • 1st and 2nd Gen Intel Xeon processor Scalable family with maximum TDP of 205W.
  • Socket P
Number of Processor (s)
Dual (Not Included)
Chipset
Intel C624 Chipset
Number of Memory Slots
16
Type of Memory Supported
DDR4 2933/2666/2400 MHz ECC RDIMM, LRDIMM
Maximum RAM
2TB
Back Panel I/O
  • 2 x USB 3.0 ports
  • 2 x USB 2.0 ports
  • 1 x VGA
  • 2 x 10GbE
  • 1 x Dedicated Management Port
Number of PCI/PCI Express Slots
  • Slot1: PCIe 3.0 x8 (x8 electrical) handled by CPU2
  • Slot2: PCIe 3.0 x16 (x16 electrical) handled by CPU2 (riser capable)
  • Slot3: PCIe 3.0 x8 (x8 electrical) handled by CPU2
  • Slot4: PCIe 3.0 x16 (x16 electrical) handled by CPU2
  • Slot5: PCIe 3.0 x8 (x8 electrical) handled by CPU1
  • Slot6: PCIe 3.0 x16 (x16 electrical) handled by CPU2 (riser capable)
Integrated SATA/SAS
    12 x SATA:
    • 2 x SATA 6Gb/s
    • 2 x M.2 - SATA / PCIe
    • 2 x 4-port mini-SAS (SFF-8643)
Integrated SATA/SAS RAID
Software RAID 0/1/10 (5 optional)
# of M.2 Ports
  • Top Connector - PCIe x4 / sSATA port 1
  • Bottom Connector - PCIe x2 / sSATA port 2
Integrated Video
Integrated 2D video controller
Integrated LAN
  • Dual port RJ45 10GbE ports
  • Dedicated Management port
IPMI
IPMI 2.0 compliant
USB
  • 2 x USB 3.0 ports on Back Panel I/O
  • 1 x internal USB 3.0 Type-A
  • 2 x USB 2.0 ports on Back Panel I/O
  • 2 x USB 3.0 port via header
Serial/Parallel Ports
1 x Serial port via header
Form Factor
SSI EEB
Dimensions
12" x 13"
Additional information
  • 4 x OCuLink connectors
  • Intel VMD support
  • Intel RSTe VROC support (accessory option)

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

  • Warranty Length: 3 years
  • Warranty Provider: Intel
  • Service Contact:
    1. First 30-day from invoice date: Allstarshop On-line RMA Request
    2. After 30-day from invoice date: Contact Intel at (800) 538-3373
  • Technical Support: Intel (800) 538-3373
