SKU: 850-28069 Mfg P/N: BOXNUC8I7BEH1
  • Intel Core i7-8559U 4 cores/8 threads / 2.7 - 4.5 GHz / 8MB buffer
  • Intel Iris Plus Graphics 655 - HDMI 2.0a / USB-C Thunderbolt 3
  • 2x DDR4-2400 SODIMM slots / 1x 2.5" SATA / 1x M.2 slot
  • 5x USB 3.1 (1x USB-C) / 802.11ac / Bluetooth 5.0
  • MicroSDXC slot / Dual-array Microphones
Our Price: $509.95
List Price: $599.00 You save: $89.05
Availability: Usually ships within 1-2 business days
Quantity:


Specifications

Processor
Intel Core i7-8559U quad-core, 2.7 / 4.5 GHz, soldered-down
Type of Memory Supported
DDR4-2400 1.2V SO-DIMM
Installed Memory
0
Maximum Memory Supported
32GB
Number of Memory Slots
2
I/O Ports

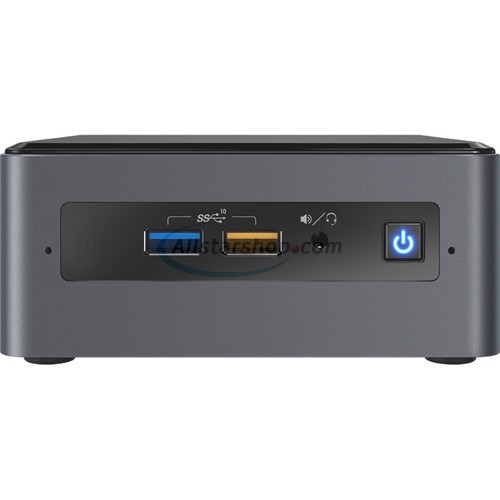

    Front:
    • 2 x USB 3.1 Gen 2 Type-A ports

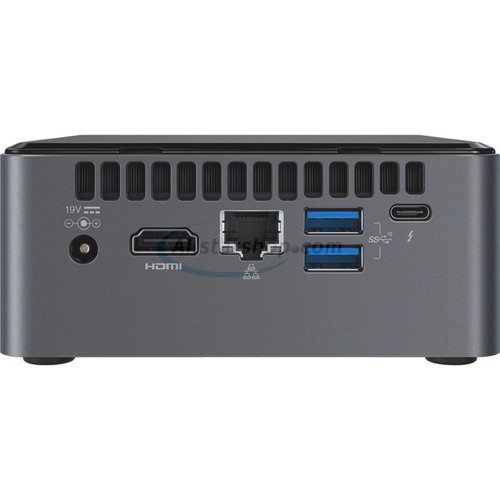

    Back:
    • 2 x USB 3.1 Gen 2 Type-A ports
    • 1 x USB 3.1 Gen 2 Type-C port (Thunderbolt)
    • 1 x HDMI
    • 1 x RJ 45 LAN
Audio
  • Intel High Definition Audio
  • Dual-Array Microphones and Audio Jack
  • Video
  • Intel Iris Plus Graphics 655
  • HDMI 2.0
  • DP 1.2 via USB-C
  • LAN
  • Intel I219V Gigabit Ethernet
  • Integrated WiFi Intel Wireless-AC 9560 + Bluetooth 5.0
  • Storage
    • 1 x SATA 6 Gb/s
    • 1 x M.2 2280 (key type M and B+M) modules
    USB Port (s)
      Front:
      • 2 x USB 3.1 Gen 2 Type-A ports
      Back:
      • 2 x USB 3.1 Gen 2 Type-A ports
      • 1 x USB 3.1 Gen 2 Type-C port (Thunderbolt)
    Card Reader
    microSDXC with UHS-I support
    Power
    19V, 90W power brick
    Dimensions
    4.60" x 4.40" x 2.01"

    The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

    Warranty and Service

    • Warranty Length: 3 years
    • Warranty Provider: Intel
    • Service Contact:
      1. First 30-day from invoice date: Allstarshop On-line RMA Request
      2. After 30-day from invoice date: Contact Intel at (800) 538-3373
    • Technical Support: Intel (800) 538-3373

    Compatible Accessories

    Memory

    Crucial 16GB DDR4-2400 PC4-19200 CL17 Notebook SODIMM
    • 1 x 16GB module
    • Dual Ranked x8
    Manufacturer: Crucial
    Mfg P/N: CT16G4SFD824A
    Availability: Usually ships with 1-2 business days
    $136.75Add
    Crucial 8GB DDR4-2400 PC4-19200 CL17 Notebook SODIMM
    • SR x 8
    Manufacturer: Crucial
    Mfg P/N: CT8G4SFS824A
    Availability: Usually ships with 1-2 business days
    $70.50Add
    Kingston 16GB DDR4-2400 CL17 2Rx8 SODIMM
    Manufacturer: Kingston
    Mfg P/N: KVR24S17D8/16
    Availability: Usually ships with 1-2 business days
    $133.25Add
    Kingston 8GB DDR4-2400 CL17 1Rx8 SODIMM
    Manufacturer: Kingston
    Mfg P/N: KVR24S17S8/8
    Availability: Usually ships with 1-2 business days
    $68.25Add

    SSD

    Intel SSD 760p 256GB PCIe 3.0 x4 NVMe M.2 SSD
    • Sequential Read: 3210 MB/s / Write: 1315 MB/s
    • Random 4KB Read (up to): 205000 IOPS / Write (up to): 265000 IOPS
    • Endurance Rating: 144 TBW
    • MTBF: 1.6M hours
    • Form Factor: M.2 22 x 80mm
    Manufacturer: Intel
    Mfg P/N: SSDPEKKW256G801
    Availability: Usually ships with 1-2 business days
    $104.95Add
    Intel SSD 760p 512GB PCIe 3.0 x4 NVMe M.2 SSD
    • Sequential Read: 3230 MB/s / Write: 1625 MB/s
    • Random 4KB Read (up to): 340000 IOPS / Write (up to): 275000 IOPS
    • Endurance Rating: 288 TBW
    • MTBF: 1.6M hours
    • Form Factor: M.2 22 x 80mm
    Manufacturer: Intel
    Mfg P/N: SSDPEKKW512G801
    Availability: Usually ships with 1-2 business days
    $174.95Add
    WD Black PCIe NVMe M.2 2280 SSD - 1TB
    • Sequential Read (up to): 3400 MB/s / Write (up to): 2800 MB/s
    • Random 4KB Read (up to): 500k IOPS / Write (up to): 400k IOPS
    • Endurance Rating: 600 TBW
    • MTBF: 1.75M hours
    • Form Factor: M.2 22 x 80mm
    Manufacturer: Western Digital
    Mfg P/N: WDS100T2X0C
    Availability: Usually ships with 1-2 business days
    $340.75Add
    WD Black PCIe NVMe M.2 2280 SSD - 500GB
    • Sequential Read (up to): 3400 MB/s / Write (up to): 2500 MB/s
    • Random 4KB Read (up to): 410k IOPS / Write (up to): 330k IOPS
    • Endurance Rating: 300 TBW
    • MTBF: 1.75M hours
    • Form Factor: M.2 22 x 80mm
    Manufacturer: Western Digital
    Mfg P/N: WDS500G2X0C
    Availability: Usually ships same day
    $143.75Add

    Software

    Microsoft Windows 10 Home 64-bit Full Edition License (OEM/1pk)
    Manufacturer: Microsoft
    Mfg P/N: KW9-00140
    Availability: Usually ships with 1-2 business days
    $110.50Add
    Microsoft Windows 10 Pro 32/64-bit Full Edition - USB Drive
    • USB flash drive
    • 32/64-bit
    • License and Media
    Manufacturer: Microsoft
    Mfg P/N: FQC-08788/FQC-10069
    Availability: Usually ships same day
    $196.95Add
    Microsoft Windows 10 Pro 64-bit Full Edition License (OEM/1pk)
    Manufacturer: Microsoft
    Mfg P/N: FQC-08930
    Availability: Usually ships same day
    $144.95Add
