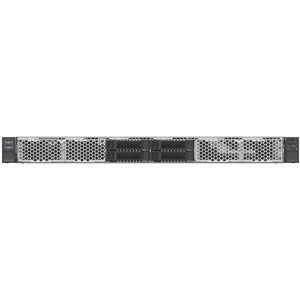

SKU: 850-28066A
  • 2x 4th Gen Intel Xeon Scalable Processors
  • Max 12TB DDR5 4800MHz ECC RDIMM (32 DIMMs)
  • 4x 2.5" bays - Hot Swap
  • Integrated IPMI 2.0 with KVM and Dedicated LAN
Our Price: Login to see price
Discontinued - Not orderable


Specifications

Server Case Form Factor
  • 1U
  • 17.24" x 30.2" x 1.69" (W x L x H)
Processor
  • 4th Gen Intel Xeon Scalable processors
  • Dual (Not Included)
  • Up to 350W
Chipset
Intel C741
Type of Memory Supported
DDR5-4800 RDIMM, 3DS-RDIMM, 9x4 RDIMM
Maximum Memory Supported
12TB
Number of Memory Slots
32
Slots
1 x PCIe 5.0 LP/HL slot via FCP1URISER1 Riser Card
Front I/O Ports
  • 1 x USB 3.0
  • 2 x USB 2.0
Rear I/O Ports
  • 1 x USB 3.0
  • 2 x USB 2.0
  • 1 x VGA
  • 1 x RJ45 Remote Management
  • 1 x RJ45 Serial Port
Video
Integrated 2D video controller
LAN
OCPv3 Not Included
SATA / SAS
  • 8 x SATA via Mini-SAS (SFF-8643)
  • 2 x M.2 SATA / PCIe
USB Port (s)
    Front:
    • 1 x USB 3.0
    • 1 x USB 2.0
    Rear:
    • 1 x USB 3.0
    • 2 x USB 2.0
Ext. Drive Bays
  • 4 x 2.5"
  • SATA: CYPCBLHDHDXXX1 require
  • NVMe: CBLMCSL1204KIT require
Power
NO PSU included
Motherboard Manufacturer
Intel Server Board M50FCP2SBSTD
Manageability
IPMI 2.0

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

  • Warranty Length: 3 years
  • Warranty Provider: Intel
  • Service Contact:
    1. First 30-day from invoice date: Allstarshop On-line RMA Request
    2. After 30-day from invoice date: Contact Intel at (800) 538-3373
  • Technical Support: Intel (800) 538-3373

Package Contents

  • 1 x 1U 2.5" chassis – iPN M36832-xxx
  • 1 x Server board – iPC M50FCP2SBSTD
  • 1 x 4 x 2.5" combo HSBP – iPC CYPHSBP1204
  • 4 x Drive mounting rails – iPN K53035-xxx
  • 4 x 2.5" SSD blank – iPN K71491- xxx
  • 1 x Riser #1 Bracket
  • 1 x 1-Slot x16 LP PCIe riser card (Riser Slot #1) – iPC FCP1URISER1
  • 1 x Riser #2 Bracket - iPN K72604-001
  • 1 x Front panel (left) with two USB ports – iPN K48177- xxx
  • 1 x Front Panel (left) USB cable– iPN K67061- xxx
  • 1 x Front panel (right) with control panel – iPN K48178- xxx
  • 1 x Front panel (right) cable pin – iPN K67060- xxx
  • 8 x Dual-rotor system fans – iPC CYPFAN1UKIT
  • 16 x DIMM slot blanks – iPN M45676- xxx
  • 2 x EVAC CPU heat sinks – iPN FCP1UHSEVAC
  • 2 x E1A (XCC) processor clips – iPN AXXSPRXCCCC
  • 2 x E1B (MCC) processor clips - iPN AXXSPRMCCCC
  • 1 x Air baffle (left) – iPN K72602- xxx
  • 1 x Air baffle (right) – iPN K72603- xxx
  • 1 x Intel RAID Maintenance Free Backup Unit (RMFBU) bracket

Compatible Accessories

Cable

Intel CYPCBLHDHDXXX1 Base Board to HSBP MiniSAS HD Cable
Manufacturer: Intel
Mfg P/N: CYPCBLHDHDXXX1
Availability: Temporarily out of stock
Intel CBLMCSL1204KIT 1U - 2.5" x4 System, Cable Kit
Manufacturer: Intel
Mfg P/N: CBLMCSL1204KIT
Availability: Temporarily out of stock

CPU

Intel Xeon Silver 4410T 10-Core 2.7GHz w/26.25MB LGA4677 CPU (Tray)
  • 10x Cores / 20x Threads / Turbo Boost: 4.0 GHz
  • Supported Memory: DDR5-4000
  • Max # of PCIe 5.0 Lane: 80
  • TDP: 150W
Manufacturer: Intel
Mfg P/N: PK8071305121601
Availability: Usually ships with 1-2 business days
Intel Xeon Silver 4410Y 12-Core 2GHz w/30MB LGA4677 CPU (Tray)
  • 12x Cores / 24x Threads / Turbo Boost: 3.9 GHz
  • Supported Memory: DDR5-4000
  • Max # of PCIe 5.0 Lane: 80
  • TDP: 150W
Manufacturer: Intel
Mfg P/N: PK8071305120002
Availability: Usually ships same day

Memory

Kingston 16GB DDR5-4800 ECC Reg CL40 1Rx8 288-pin RDIMM
  • PC5-38400
  • Single-rank x8
  • ECC RDIMM
Manufacturer: Kingston
Mfg P/N: KSM48R40BS8KMM-16HMR
Availability: Usually ships same day
Kingston 32GB DDR5-4800 ECC Reg CL40 2Rx8 288-pin RDIMM
  • PC5-38400
  • Dual-rank x8
  • ECC RDIMM
Manufacturer: Kingston
Mfg P/N: KSM48R40BD8KMM-32HMR
Availability: Usually ships with 1-2 business days
Kingston 64GB DDR5-4800 ECC Reg CL40 2Rx4 288-pin RDIMM
  • PC5-38400
  • Dual-rank x4
  • ECC RDIMM
Manufacturer: Kingston
Mfg P/N: KSM48R40BD4TMM-64HMR
Availability: Usually ships with 1-2 business days

Networking Card

Intel X710-T2L for OCP 3.0 Ethernet Network Adapter
  • 10GbE/5Gbe/2.5GbE/1GbE/100Mb Data Rate Per Port
  • RJ45 Category 6, Category 6A, Category 5e up to 100m
  • 8.0GT/s x 8 Lane
Manufacturer: Intel
Mfg P/N: X710T2LOCPV3
Availability: Usually ships with 1-2 business days
