SKU: 850-28018E
  • Support 2x LGA2011-3 E5-2600 v3 / v4
  • Max: 512GB / 8x memory slots
  • 1 x PCIe x16 Gen 3 via riser card
Our Price: Login to see price
Discontinued - Not orderable


Specifications

Processor & Chipset
Number of Processors Supported
2
Processor Socket
Socket R3 (LGA2011-3)
Processor Supported
Xeon
64-bit Processing
Yes
Memory
Maximum Memory
512 GB
Memory Technology
DDR4 SDRAM
Memory Standard
DDR4-2133/PC4-17000
Number of Total Memory Slots
8
Controllers
Controller Type
Serial ATA
RAID Supported
Yes
Network & Communication
Ethernet Technology
Gigabit Ethernet
I/O Expansions
Number of Total Expansion Slots
2
Number of PCI Express x16 Slots
2
Interfaces/Ports
Total Number of USB Ports
4
Number of SATA Interfaces
10
Physical Characteristics
Form Factor
Rack-mountable
Rack Height
1U
Warranty
Limited Warranty
3 Year

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

  • Warranty Length: 3 years
  • Warranty Provider: Intel
  • Service Contact:
    1. First 30-day from invoice date: Allstarshop On-line RMA Request
    2. After 30-day from invoice date: Contact Intel at (800) 538-3373
  • Technical Support: Intel (800) 538-3373

Package Contents

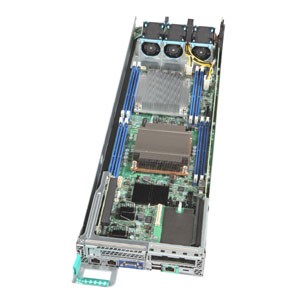

  • Compute Module HNS2600KPR
  • 1 x Intel Server Board S2600KPR
  • 1 x Bridge Board
  • 1 x Node Power Board
  • 1 x PCIe x16 Riser Card
  • 2 x 1U Passive 91.5mm x 91.5mm heat sink
  • 3 x 4056 Dual Rotor Fan
  • 1 x Airduct
  • 1 x 1U Node Tray
