SKU: 800-28103C
  • Max 16GB / 4 x Dimm DDR3 1600/1333/1066
  • 6 x SATA, 2 x eSATA / RAID 0, 1, 10, 5 / 0 x IDE / 0 x FDD
  • Up to 14 x USB 2.0, 2 x IEEE 1394a
  • 1 x PCI-E 2.0 X16, 1 x PCI-E X8, 1 x PCI-E X4, 2 x PCI-E X1, 2 x PCI
Our Price: Login to see price
Discontinued - Not orderable


Specifications

CPU Support
    LGA1156 socket:
    • Intel Core i7
    • Intel Core i5
Number of Processor (s)
Single (Not Included)
Chipset
Intel P55
Video card slot
PCI-Express 2.0 X16
Number of Memory Slots
4
Type of Memory Supported
240-pin DDR3 1600/1333/1066 Memory
Maximum RAM
16GB

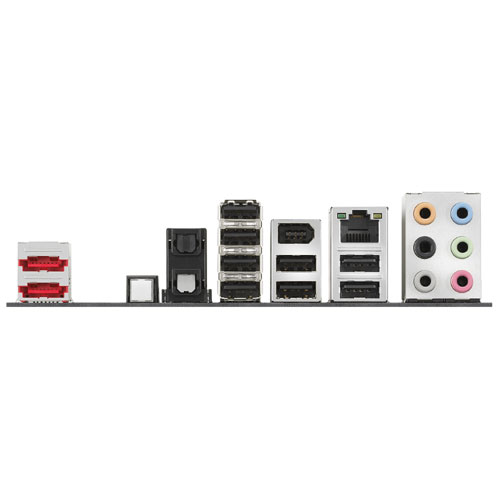

Back Panel I/O
  • 1 x Optical S/PDIF In/Out
  • 2 x eSATA ports
  • 8 x USB 2.0 ports
  • 1 x RJ45 LAN port
  • 1 x IEEE 1394 port
  • 1 x Audio I/O
    Number of PCI/PCI-Express Slots
    • 1 x PCI-Express 2.0 X16
    • 1 x PCI-Express X8
    • 1 x PCI-Express X4
    • 2 x PCI-Express X1
    • 2 x PCI
    On-Board EIDE/Floppy
    • No PATA connector
    • No floppy drive connector
    Integrated SATA/SAS
      Intel P55:
      • 6 x SATA II 3.0Gb/s
      Marvell 88E6145:
      • 2 x eSATA 3.0Gb/s
    Integrated SATA/SAS RAID
      Intel P55:
      • Supports RAID 0, 1, 5 and 10
    Integrated Audio
    Realtek ALC889 8-Channel High Definition Audio CODEC
    Integrated Video
    No
    Integrated LAN
    Intel 82578DC Gigabit Ethernet Controller
    USB
      Up to 14 x USB ports:
      • 8 x USB ports on Back Panel I/O
      • 6 x USB ports via headers
    IEEE 1394
      Up to 2 x IEEE 1394 ports:
      • 1 x IEEE 1394 port on Back Panel I/O
      • 1 x IEEE 1394 port via header
    Serial/Parallel Ports
    • No parallel port connector
    • No serial port connector or header
    PS/2 Ports
    • No PS/2 connectors
    Form Factor
    ATX
    Dimensions
    12" x 9.6"
    Additional information
    • No parallel port connector
    • No floppy drive connector
    • No serial port connector or header
    • No PS/2 connectors

    The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

    Warranty and Service

    • Warranty Length: 3 years
    • Warranty Provider: Intel
    • Service Contact:
      1. First 30-day from invoice date: Allstarshop On-line RMA Request
      2. After 30-day from invoice date: Contact Intel at (800) 538-3373
    • Technical Support: Intel (800) 538-3373

    Package Contents

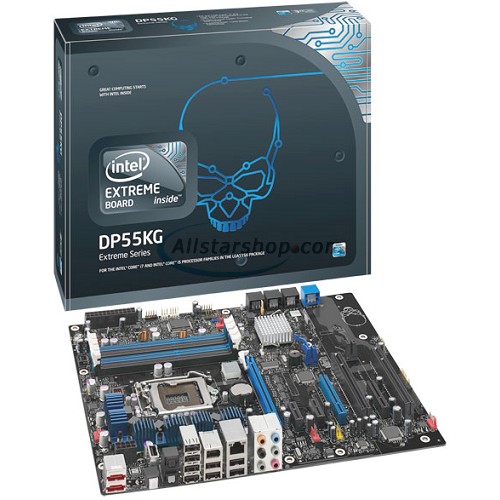

    • 1 x DP55KG motherboard
    • 2 x SATA cables
    • 4 x UV SATA cables
    • I/O Shield
    • DVD, Express Installer
    • Configuration Label
    • Quick Reference Guide
    • SLI Adapter
