Intel DH67CF iH67 LGA1155 USB 3.0/SATA 6Gb/s mini-ITX motherboard - (Discontinued)

Support: (800) 538-3373

Intel DH67CF iH67 LGA1155 USB 3.0/SATA 6Gb/s mini-ITX motherboard - (Discontinued)

SKU:	800-28002F

Integrated Intel Graphics - DVI-I / HDMI / DisplayPort
Max 32GB / 4 Dimm DDR3 1333/1066
2 x SATA 6Gb/s, 1 x SATA, 2 x eSATA / RAID 0, 1, 10, 5 / 0 x IDE / 0 x FDD
Up to 2 x USB 3.0, 10 x USB 2.0
1 x PCI-E X16

Our Price:	Login to see price
Discontinued	- Not orderable

What's New

: WD Red SN700 PCIe 3.0 x4 NVMe M.2 2280 SSD - 2TB

: WD Red SN700 PCIe 3.0 x4 NVMe M.2 2280 SSD - 1TB

: AMD EPYC 9105 8-Core 3.95GHz 64MB Cache CPU (Tray)

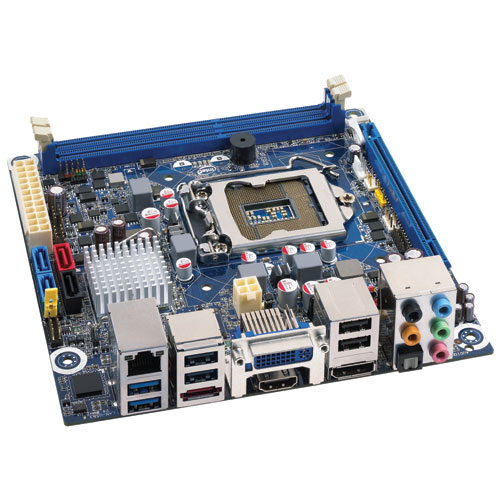

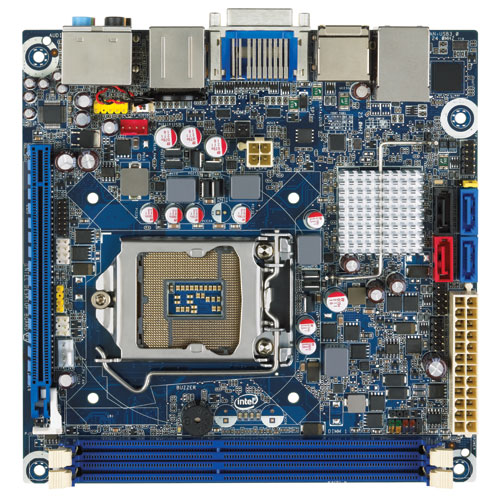

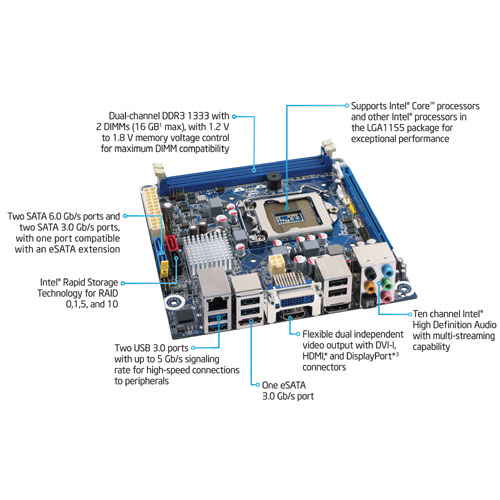

The Intel Desktop Board DH67CF is an Intel H67 Express chipset-based desktop board in Mini-ITX form factor. It supports the 2nd generation Intel Core i5 processor and other Intel processors in the LGA1155 package. This board is featured with DVI-I, HDMI, and DisplayPort connectors, and supports dual independent display. Powered by the 2nd generation Intel Core processors, DH67CF delivers a superb visual performance for sharper images, richer color, and life-like audio and video. Intel Desktop Board DH67CF also offers premium features such as two SATA 6 Gb/s ports and two USB 3.0 ports with 5Gb/s link speed. The Mini-ITX form factor provides maximum design flexibility for system designs ranging from all-in-one to portable systems.

Description

Specifications

CPU Support

LGA1155 socket:

Core i7-2000 processor series
Core i5-2000 processor series

Number of Processor (s)

Single (Not Included)

Chipset

Intel H67

Video card slot

PCI-Express 2.0 X16

Number of Memory Slots

Type of Memory Supported

240-pin DDR3 1333/1066 MHz

Maximum RAM

16GB

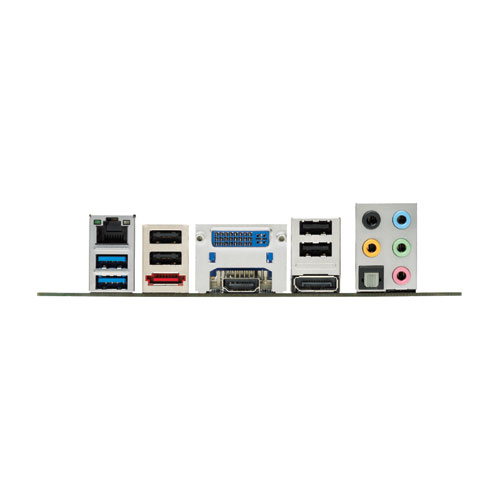

Back Panel I/O

2 x USB 3.0/2.0
4 x USB 2.0/1.1
1 x DVI-I
1 x HDMI
1 x DisplayPort
1 x eSATA
1 x LAN (RJ45) port
1 x Audio I/O

Number of PCI/PCI-Express Slots

1 x PCI-Express 2.0 X16

On-Board EIDE/Floppy

Integrated SATA/SAS

2 x SATA 6Gb/s
1 x SATA 3Gb/s
1 x eSATA 3Gb/s (Internal)
1 x eSATA 3Gb/s (Back Panel)

Integrated SATA/SAS RAID

Supports RAID 0, 1, 10 and 5

Integrated Audio

Realtek ALC892 10-Channel High Definition Audio CODEC

Integrated Video

Integrated Intel Graphics

Integrated LAN

Intel 8259V Gigabit Ethernet Controller

USB

2 x USB 3.0 ports on Back Panel I/O
4 x USB 2.0 ports on Back Panel I/O
6 x USB 2.0 ports via headers

IEEE 1394

Serial/Parallel Ports

PS/2 Ports

Form Factor

Mini-ITX

Dimensions

6.7" x 6.7"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Warranty Length: 3 years
Warranty Provider: Intel
Service Contact:
1. First 30-day from invoice date: Allstarshop On-line RMA Request
  This item is returnable for replacement only. It can only be exchanged with the same item.
2. After 30-day from invoice date: Contact Intel at (800) 538-3373
Technical Support: Intel (800) 538-3373
