Mfg Intel
Mfg P/N BOXD945GCLF2
SKU 800-28077T
Product Link
Warranty and Service
What's included?
Intel   Support:(800) 538-3373

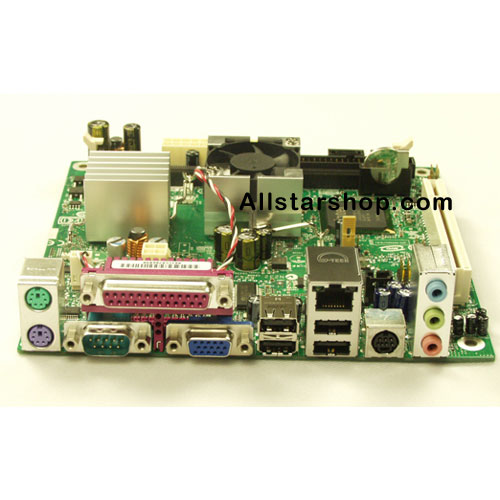

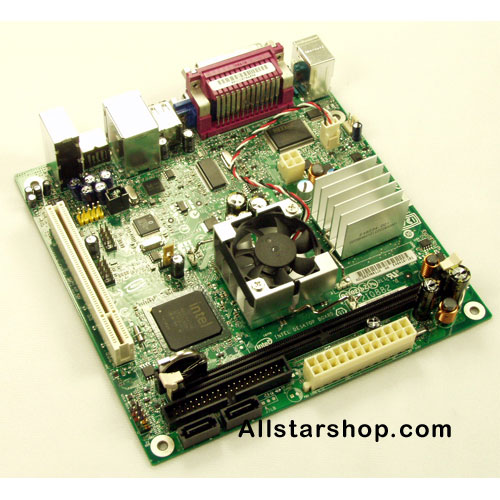

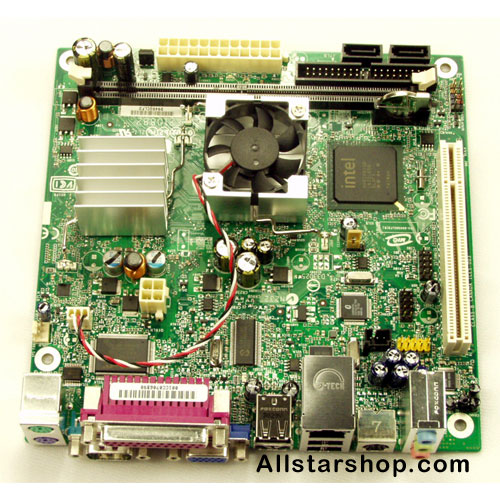

Intel D945GCLF2 i945GC Mini-ITX motherboard with Atom 330
Integrated Intel Graphics Media Accelerator 950 - VGA & S-Video
Max 2GB / 1 x Dimm DDR2 533/400
2 x SATA / 1 x IDE / 0 x FDD
Up to 8 x USB 2.0
1 x PCI
Our Price: $90.95
List Price:
$105.00 You Save: $14.05
Temporarily out of stock
We currently do not carry this product and is not orderable.
Accessories
In Win BM639 Mini-ITX Mini Tower..
$68.95 Add
Kingston 1GB DDR2-667 PC2-5300 C..
$34.50 Add
Kingston 2GB DDR2-667 PC2-5300 C..
$56.95 Add
WD Caviar Blue 160GB 7200 RPM SA..
$41.95 Add
More Accessories
Check the boxes and click "Add to cart" button to add to your basket.
Description
The Intel Desktop Board D945GCLF2 is designed to support Internet-centric computing delivering incredible capabilities for the new flexible Mini-ITX form factor.
Featuring the integrated 45nm Intel Atom processor and the Intel 945GC Express Chipset, this board is an energy-efficient solution for home users as well as for unique vertical market needs. Designed with Intel's leading edge 45nm Hi-k metal gate processor, this board delivers incredible opportunities to communicate, listen, watch, play, and learn via Internet connectivity.

Specifications
CPU SupportIntel Atom processor 330
Number of Processor (s)Single (onboard)
Chipset
  • Intel 945GC
  • Intel ICH7
Front Side Bus (FSB)533 MHz
Video card slotNo
Number of Memory Slots1
Type of Memory Supported
  • 240-pin DDR2 533/400 DIMM
  • DDR2 800 MHz and DDR 667 MHz validated to run at 533 MHz only
Maximum RAM2GB
Back Panel I/O
  • 1 x PS/2 Mosue
  • 1 x PS/2 Keyboard
  • 1 x Parallel port
  • 1 x Serial port
  • 1 x VGA port
  • 1 x S-Video
  • 1 x RJ45 LAN port
  • 4 x USB 2.0 ports
Number of PCI/PCI-Express Slots
  • 1 x PCI
Number of ISA Slots (16 Bit)No
On-Board EIDE/Floppy1 x Ultra DMA 33/66/100 channel
On-Board IDE RAIDNo
Integrated SATA/SAS2 x SATA channels
Integrated SATA/SAS RAIDNo
Integrated AudioRealtek ALC662 audio codec
Integrated VideoIntel GMA950 onboard graphics controller
Integrated LANRealtek RTL8102EL Ethernet Controller
Integrated SCSINo
USB
    Up to 8 x USB ports:
    • 4 x USB ports on Back Panel I/O
    • 4 x USB ports via Headers
IEEE 1394No
Serial/Parallel Ports
  • 1 x Parallel port
  • 1 x Serial port
PS/2 Ports
  • 1 x PS/2 Mosue
  • 1 x PS/2 Keyboard
Form FactorMini-ITX, compatible with microATX
Dimensions6.75" x 6.75"
Additional information
  • Atom 330 533MHz CPU pre-installed
    • The above specifications are for reference only. Please contact the original manufacturer for the most updated specifications.
    Warranty and Service
    • Warranty Length: 3 years
    • Warranty Provider: Intel Corp.
    • Service Contact:
      1. First 30-day from invoice date: Allstarshop On-line RMA Request
        This item is returnable for replacement only. It can only be exchanged with the same item.
      2. After 30-day from invoice date: Intel Corp. (800) 538-3373
    • Technical Support: Intel Corp. (800) 538-3373

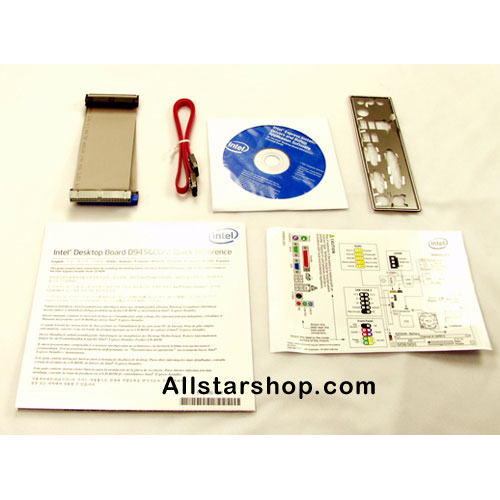

    Package Contents
    • 1 x motherboard

    • I/O plate

    • 1x SATA cable

    • 1 x IDE cable

    • Driver CD
