|  | WinTV-HVR-1800 has these great features
- Watch and record ATSC high definition digital TV or analog cable TV on your PC, in a window or full screen! ATSC HD is the over-the-air high definition TV standard for North America.
- Watch and record 'clear QAM' digital TV channels. Clear QAM digital TV channels are TV channels which are broadcast "in the clear" on your cable TV network.
- Two tuners on board: a 125 channel cable ready TV tuner and an ATSC/QAM digital TV tuner.
- Includes Hauppauge's WinTV v6 application, which allows you to toggle between analog cable TV, QAM and ATSC digital TV channels.
|

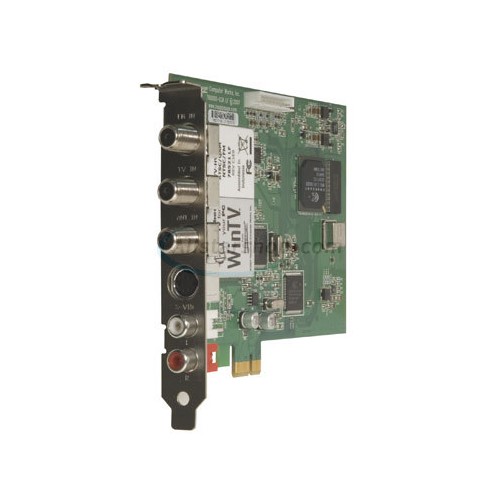

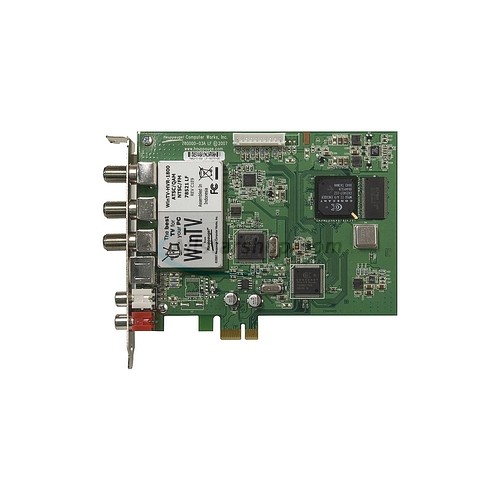

Dual tuner PCI Express NTSC/ATSC/QAM TV tuner board for Windows Vista. Watch and record analog cable TV plus hi-definition ATSC or clear QAM digital TV on your PC!
- Dual tuner TV board for your PC: one analog TV tuner and one digital TV tuner
- Single slot PCI Express (PCIe) X1 board, full height
- Built-in hardware MPEG-2 encoder for recording analog cable TV, for the best system performance
- Watch and record all ATSC formats, including the highest definition 1080i format
- Supports clear QAM digital cable TV channels with the new WinTV v6 application
ATSC Digital TV features
- ATSC over-the-air digital TV tuner built-in. Supports all ATSC formats, up to the high definition 1080i format!
- Supports Dolby Digital AC3 audio
- Record ATSC digital TV to your PC's hard disk using high quality MPEG-2. TV recordings will typically consume 5 GB of disk space per hour for ATSC high definition.
Analog TV features
- Built-in high quality hardware MPEG-2 encoder, so your PC continues to run at full speed while watching, pausing and recording analog cable TV
- 125 channel cable ready TV tuner built-in. With dbx-TV stereo decoder, for great TV sound.
- Composite/S-Video and audio inputs, for cable or satellite set top boxes or VCRs.
|
| | PCI Express | | TV TuningVideo RecordingFM TuningDigital TV Receiver | | ATSCNTSC | | MPEG-2MPEG-1 | | Watch and record ATSC high definition digital TV or analog cable TV on your PC, in a window or full screen! ATSC HD is the over-the-air high definition TV standard for North America
Watch and record 'clear QAM' digital TV channels. Clear QAM are digital ATSC channels which are re-broadcast on digital cable TV
Two tuners on board: a 125 channel cable ready TV tuner and an ATSC digital TV tuner. Connect both cable TV and ATSC digital TV to the WinTV-HVR-1800 at the same time
ATSC over-the-air digital TV receiver built-in. Supports all ATSC formats, up to the high definition 1080i format | | PC | | 1 x Composite/S-Video Input RCA (Left/Right) Audio In 1 x FM Antenna Input 2 x TV Antenna Input | WinTV2000 | | Single slot PCI Express (PCIe) X1 board full height
Supports Dolby Digital AC3 audio | | 2.2 GHz P4 or equivalent (minimum) required for displaying ATSC high definition TV on your PC screen
Available PCIe X1 or X8 slot
Graphics with 64 MB memory (or greater)
Sound card
DVD or CD writer for burning Video CD's, S-VCD's or DVD's (optional)
Microsoft Windows XP Home
Microsoft Windows XP Pro
Microsoft Windows XP Media Center Edition
Windows Vista Premium certified | The above specifications are for reference only. Please contact the original manufacturer for the most updated specifications. |
