SKU: 800-58136A
  • Integrated Intel Graphics - HDMI / DVI
  • Max 64GB / 4x DDR4 DIMM / Up to 4000(O.C.)
  • 6x SATA 6Gb/s, 2x M.2 / RAID 0, 1, 5, 10
  • Up to 2x USB 3.1 (1x USB-C), 4x USB 3.0 , 4x USB 2.0
  • 2x PCIe x16, 2x PCIe x1
Our Price: $154.95
List Price: $179.00 You save: $24.05
Availability: Usually ships within 1-2 business days
Quantity:


Specifications

CPU Support
LGA1151 socket for 9th, 8th Generation Intel Core i9 / i7/ i5/ i3 Processors
Number of Processor (s)
Single (Not Included)
Chipset
Intel Z390 chipset
System Bios
UEFI AMI BIOS
Video card slot
PCIe 3.0 X16
Number of Memory Slots
4
Type of Memory Supported
288-pin DDR4 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3200(OC) / 2933(OC) / 2800(OC) / 2666 / 2400 / 2133 non-ECC, un-buffered memory
Maximum RAM
64GB
Back Panel I/O
  • 1 x PS/2 Keyboard/Mouse combo
  • 1 x USB 3.1 Gen2 Type-A port
  • 1 x USB 3.1 Gen2 Type-C port
  • 4 x USB 3.0 (USB 3.1 Gen1) ports
  • 1 x DVI-D
  • 1 x HDMI
  • 1 x RJ45 LAN
  • 1 x Audio I/O
Number of PCI/PCI-Express Slots
  • 1 x PCIe 3.0 x16
  • 1 x PCIe 3.0 x16 (max. x4)
  • 2 x PCIe 3.0 x1
Integrated SATA/SAS
6 x SATA 6Gb/s
# of M.2 Ports
  • 1 x M.2 Socket 3, with M Key, type 2242/2260/2280/22110 storage devices support (PCIe mode only)
  • 1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCIe mode)
Integrated SATA/SAS RAID
RAID 0, 1, 5, 10
Integrated Audio
Realtek ALC892 8-Channel High Definition Audio CODEC
Integrated Video
Integrated Intel Graphics from processor
Integrated LAN
Intel Gigabit LAN
USB
    Up to 12 x USB ports:
    • 1 x USB 3.1 Gen2 Type-A port on Back Panel I/O
    • 1 x USB 3.1 Gen2 Type-C port on Back Panel I/O
    • 4 x USB 3.0 (USB 3.1 Gen1) ports on Back Panel I/O
    • 2 x USB 3.0 (USB 3.1 Gen1) ports via headers
    • 4 x USB 2.0 ports via headers
Serial/Parallel Ports
1 x Serial port via header
PS/2 Ports
1 x PS/2 Keyboard/Mouse combo
Form Factor
MicroATX
Dimensions
9.6" x 9.6"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Package Contents

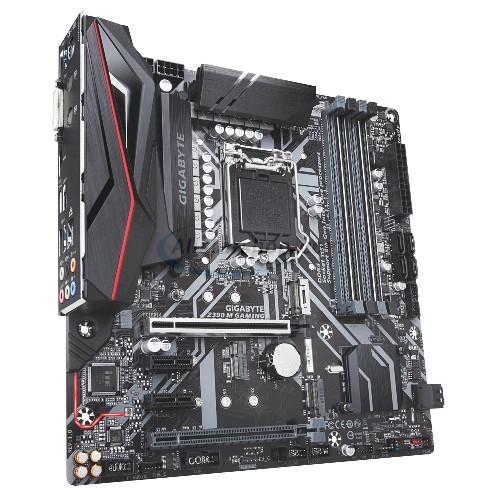

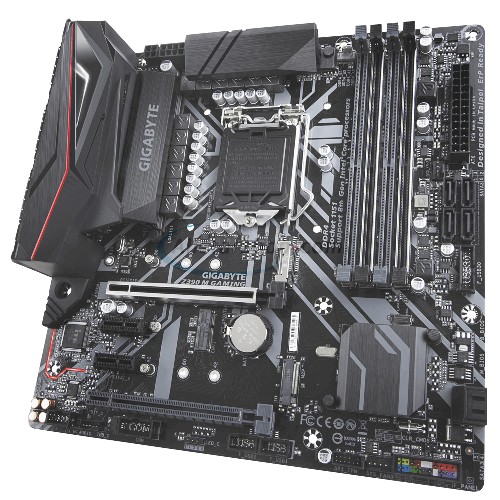

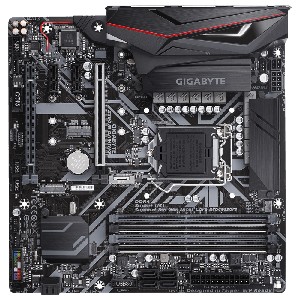

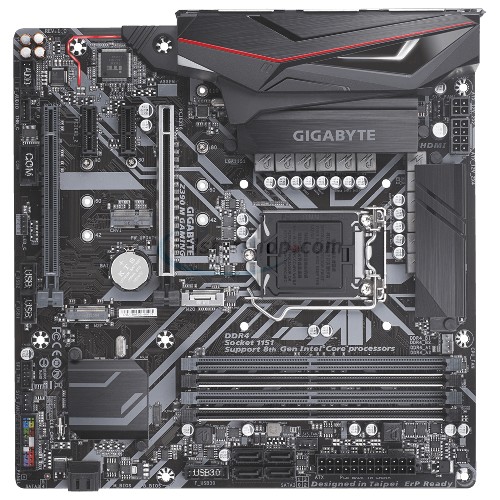

  • Z390 M GAMING motherboard
  • User's manual
  • Supporting DVD
  • 2 x SATA 6Gb/s cables
