SKU: 800-58150
  • Max 64GB / 2x DDR4 DIMM / Up to 4400(O.C.)
  • 4x SATA 6Gb/s, 2x M.2 / RAID 0, 1, 10
  • Up to 2x USB 3.2 G2 (1x USB-C), 6x USB 3.2 G1, 2x USB 2.0
  • 1x PCIe x16
Our Price: $232.75
List Price: $279.00 You save: $46.25
Availability: Usually ships within 1-2 business days
Quantity:


Specifications

CPU Support
AMD AM4 3rd and 2nd Gen Ryzen processor
Number of Processor (s)
Single (Not Included)
Chipset
AMD X570
System Bios
AMI UEFI BIOS
Video card slot
PCIe 4.0/3.0 x16
Number of Memory Slots
2
Type of Memory Supported
  • 3rd Gen AMD Ryzen: DDR4 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz
  • 2nd Gen AMD Ryzen: DDR4 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz
Maximum RAM
64GB
Back Panel I/O
  • 1 x USB 3.2 Gen 2 Type-A port
  • 1 x USB 3.2 Gen 2 Type-C port
  • 4 x USB 3.2 Gen 1 Type-A ports
  • 1 x DisplayPort
  • 2 x HDMI
  • 1 x RJ45 LAN
  • 1 x Audio I/O
Number of PCI/PCI-Express Slots
  • 1 x PCIe x16:
    • 3rd Gen AMD Ryzen: 1 x PCIe 4.0 x16
    • 2nd Gen AMD Ryzen: 1 x PCIe 3.0 x16
    • 2nd Gen AMD Ryzen with Radeon Vega Graphics: 1 x PCIe 3.0 x16 (x8 mode)
Integrated SATA/SAS
4 x SATA 6Gb/s
# of M.2 Ports
  • 1 x M.2_1 socket 3, with M Key, Type 2260/2280:
    • 3rd Gen Ryzen: PCIE 4.0 x4 and SATA modes
    • 2nd Gen Ryzen: PCIE 3.0 x4 and SATA modes
  • 1 x M.2_1 socket 3, with M Key, Type 2260/2280:
    • 3rd Gen Ryzen: PCIE 4.0 x4 and SATA modes
Integrated SATA/SAS RAID
RAID 0, 1, 10
Integrated Audio
Realtek ALC1220-VB 8-Channel High Definition Audio CODEC
Integrated Video
Integrated Graphics from processor (Actual support may vary by CPU)
Integrated LAN
  • Intel Gigabit LAN
  • 802.11a/b/g/n/ac/ax
  • BLUETOOTH 5.0
USB
  • 1 x USB 3.2 Gen 2 Type-A port on Back Panel I/O
  • 1 x USB 3.2 Gen 2 Type-C port on Back Panel I/O
  • 4 x USB 3.2 Gen 1 Type-A ports on Back Panel I/O
  • 2 x USB 3.2 Gen 1 Type-A ports via headers
  • 2 x USB 2.0 Type-A ports via headers
Form Factor
Mini-ITX
Dimensions
6.7" x 6.7"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Package Contents

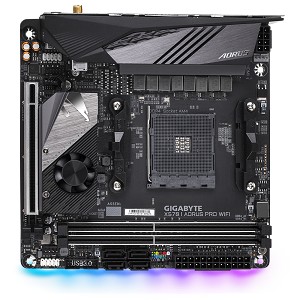

  • X570 I AORUS PRO WIFI motherboard
  • User's manual
  • 1 x Supporting DVD
  • 2 x SATA 6Gb/s cables
  • Thermal pad kit
  • RGB LED strip extension cable
  • Antenna
