SKU: 800-58151
  • Max 128GB / 4x DDR4 DIMM / Up to 4000(O.C.)
  • 6x SATA 6GB/s, 2x M.2 / RAID 0, 1, 10
  • Up to 8x USB 3.2 G1, 6x USB 2.0
  • 2x PCIe x16, 3x PCIe x1
Our Price: Login to see price
Discontinued - Not orderable


Specifications

CPU Support
AMD AM4 3rd and 2nd Gen Ryzen processor
Number of Processor (s)
Single (Not Included)
Chipset
AMD X570
System Bios
AMI UEFI BIOS
Video card slot
PCIe 4.0/3.0 x16
Number of Memory Slots
4
Type of Memory Supported
  • 3rd Gen AMD Ryzen: DDR4 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3200 / 3000 / 2933 /2800 / 2666 / 2400 / 2133 MHz Un-buffered Memory
  • 2nd Gen AMD Ryzen: DDR4 3200 / 3000 / 2933 /2800 / 2666 / 2400 / 2133 MHz Un-buffered Memory
Maximum RAM
128GB

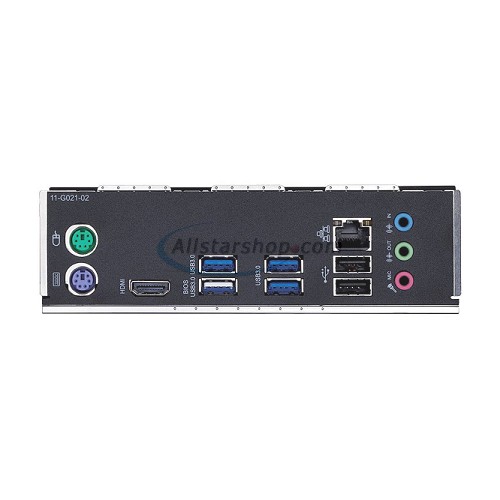

Back Panel I/O
  • 1 x PS/2 keyboard
  • 1 x PS/2 mouse
  • 4 x USB 3.2 Gen1 Type-A ports
  • 2 x USB 2.0 ports
  • 1 x HDMI
  • 1 x RJ45 LAN
  • 1 x Audio I/O
Number of PCI/PCI-Express Slots
  • 1 x PCIe x16:
    • 3rd Gen Ryzen: PCIe 4.0 x16
    • 2nd Gen Ryzen: PCIe 3.0 x16
    • 2nd Gen Ryzen with Radeon Vega Graphics: 1 x PCIe 3.0 x16 (x8 mode)
  • 1 x PCIe 4.0 x16 (max at x4 mode)
  • 3 x PCIe 4.0 x1
Integrated SATA/SAS
6 x SATA 6Gb/s
# of M.2 Ports
  • 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110:
    • 3rd Gen AMD Ryzen: PCIE 4.0 x4 and SATA modes
    • 2nd Gen AMD Ryzen: PCIE 3.0 x4 and SATA modes
  • 1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280/22110 PCIE 4.0 x4 and SATA modes storage devices support
Integrated SATA/SAS RAID
RAID 0, 1, 10
Integrated Audio
Realtek ALC887 8-Channel High Definition Audio CODEC
Integrated Video
Integrated Graphics from processor (Actual support may vary by CPU)
Integrated LAN
Realtek Gigabit LAN
USB
  • 4 x USB 3.2 Gen1 Type-A ports on Back Panel I/O
  • 4 x USB 3.2 Gen1 Type-A ports via headers
  • 2 x USB 2.0 ports on Back Panel I/O
  • 6 x USB 2.0 ports via headers
PS/2 Ports
  • 1 x PS/2 keyboard
  • 1 x PS/2 mouse
Form Factor
ATX
Dimensions
12" x 9.6"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Package Contents

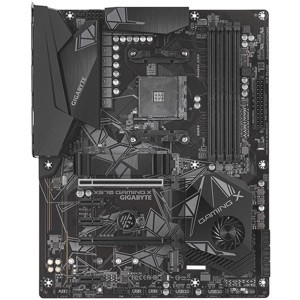

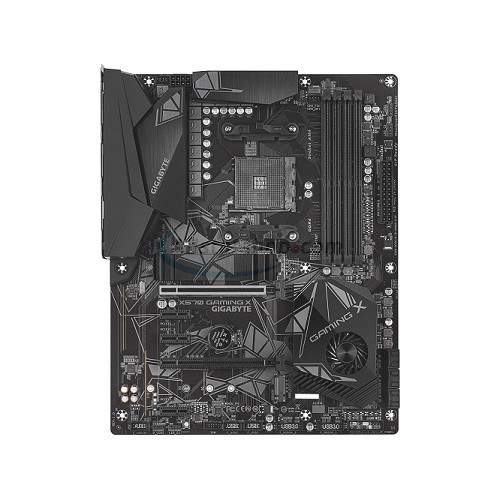

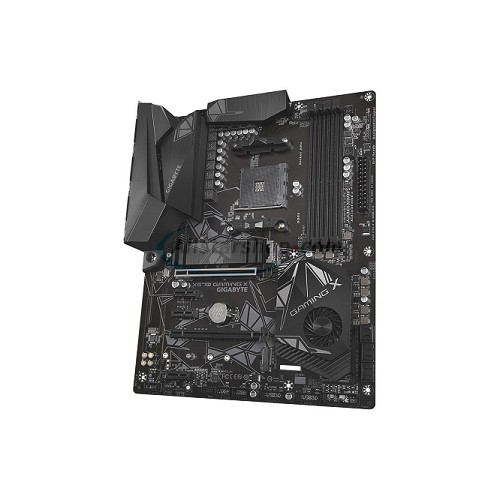

  • X570 GAMING X motherboard
  • Motherboard driver disk
  • User's Manual
  • 2 x SATA 6Gb/s cables
  • M.2 Screw/ M.2 Standoff
