SKU: 800-58149
  • Max 128GB / 4x DDR4 DIMM / Up to 4400(O.C.)
  • 6x SATA 6Gb/s, 3x M.2 / RAID 0, 1, 10
  • Up to 3x USB 3.2 G2 (2x USB-C), 1x USB 3.2 G2/G1, 7x USB 3.2 G1, 8x USB 2.0
  • 3x PCIe x16, 2x PCIe x1
Our Price: Login to see price
Discontinued - Not orderable


Specifications

CPU Support
AMD AM4 3rd and 2nd Gen Ryzen processor
Number of Processor (s)
Single (Not Included)
Chipset
AMD X570
System Bios
AMI UEFI BIOS
Video card slot
PCIe 4.0/3.0 x16
Number of Memory Slots
4
Type of Memory Supported
  • 3rd Gen AMD Ryzen: DDR4 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz
  • 2nd Gen AMD Ryzen: DDR4 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz
Maximum RAM
128GB

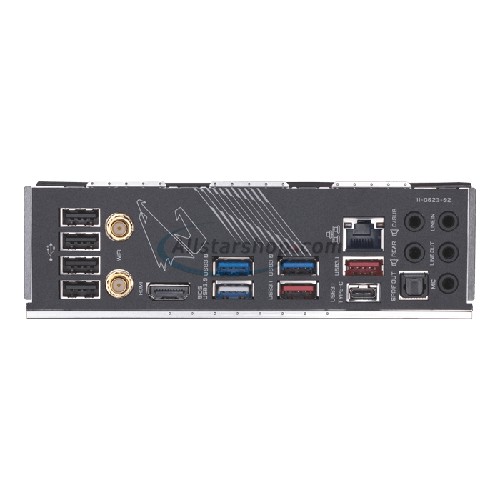

Back Panel I/O
  • 1 x USB 3.2 Gen2 Type-A port
  • 1 x USB 3.2 Gen2 Type-C port
  • 1 x USB 3.2 Gen2 (3rd Gen Ryzen)/Gen1 (2nd Gen Ryzen) Type-A port
  • 3 x USB 3.2 Gen1 Type-A ports
  • 4 x USB 2.0 ports
  • 1 x HDMI
  • 1 x RJ45 LAN
  • 1 x Audio I/O
  • 2 x SMA antenna connectors
Number of PCI/PCI-Express Slots
  • 2 x PCIe x16:
    • 3rd Gen AMD Ryzen: 1 x PCIe 4.0 x16, 1 x PCIe 4.0 x16 (x8 mode)
    • 2nd Gen AMD Ryzen: 1 x PCIe 3.0 x16, 1 x PCIe 3.0 x16 (x8 mode)
    • 2nd Gen AMD Ryzen with Radeon Vega Graphics: 1 x PCIe 3.0 x16 (x8 mode)
  • 1 x PCIe x16 (x4 mode):
    • 3rd Gen AMD Ryzen PCIe 4.0
    • 2nd Gen AMD Ryzen PCie 3.0
  • 2 x PCIe x1:
    • 3rd Gen AMD Ryzen PCIe 4.0
    • 2nd Gen AMD Ryzen PCie 3.0
Integrated SATA/SAS
6 x SATA 6Gb/s
# of M.2 Ports
  • 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110:
    • 3rd Gen Ryzen: PCIE 4.0 x4 and SATA modes
    • 2nd Gen Ryzen: PCIE 3.0 x4 and SATA modes
  • x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110:
    • 3rd Gen Ryzen: PCIE 4.0 x4 and SATA modes
    • 2nd Gen Ryzen: PCIE 3.0 x4 and SATA modes
  • 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280:
    • 3rd Gen Ryzen: PCIE 4.0 x4 and SATA modes
    • 2nd Gen Ryzen: PCIE 3.0 x4 and SATA modes
Integrated SATA/SAS RAID
RAID 0, 1, 10
Integrated Audio
Realtek ALC1220-VB 8-Channel High Definition Audio CODEC
Integrated Video
Integrated Graphics from processor (Actual support may vary by CPU)
Integrated LAN
Intel Gigabit LAN
USB
  • 1 x USB 3.2 Gen2 Type-A port on Back Panel I/O
  • 1 x USB 3.2 Gen2 Type-C port on Back Panel I/O
  • 1 x USB 3.2 Gen2 Type-C port via header
  • 1 x USB 3.2 Gen2 (3rd Gen Ryzen)/Gen1 (2nd Gen Ryzen) Type-A port on Back Panel I/O
  • 3 x USB 3.2 Gen1 Type-A ports on Back Panel I/O
  • 4 x USB 3.2 Gen1 Type-A ports via headers
  • 4 x USB 2.0 ports on Back Panel I/O
  • 4 x USB 2.0 ports via headers
Form Factor
ATX
Dimensions
12" x 9.6"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Package Contents

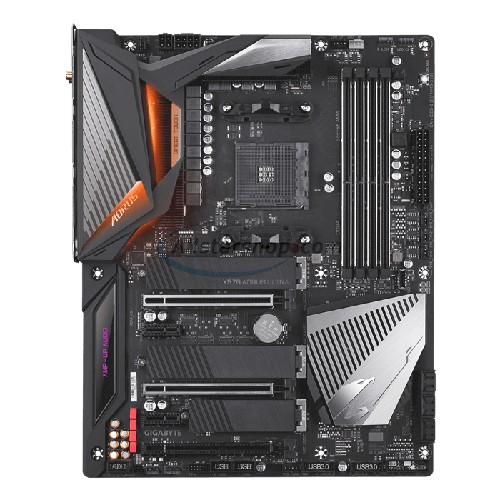

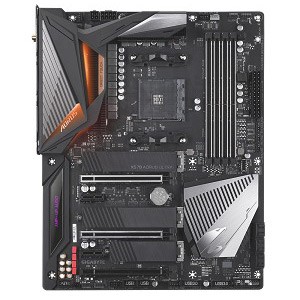

  • X570 AORUS ULTRA motherboard
  • Motherboard driver disk
  • User's Manual
  • 4 x SATA cables
  • 1 x Wi-Fi Antenna
  • M.2 screws/M.2 standoffs
  • 1 x G Connector
  • 1 x RGB LED strip extension cable
  • 2 x thermistors cables
  • 2 x Velcro cable ties
