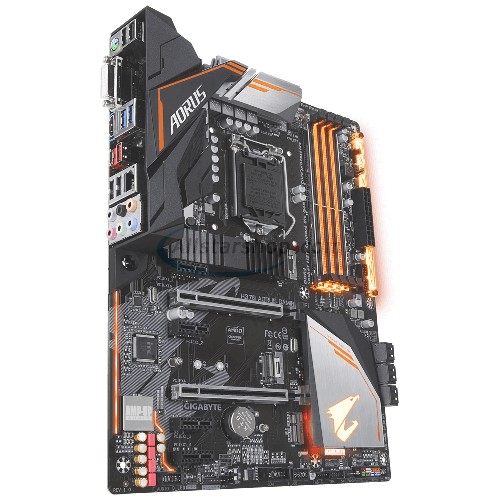

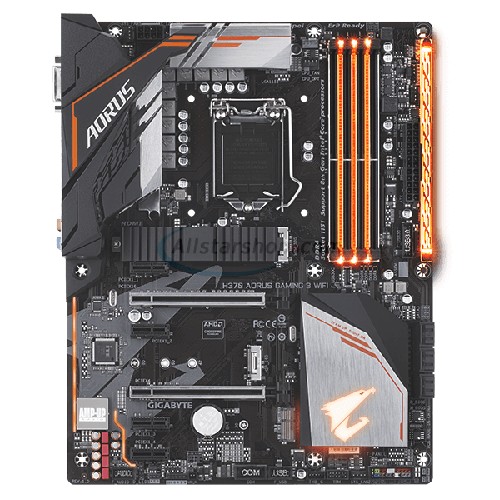

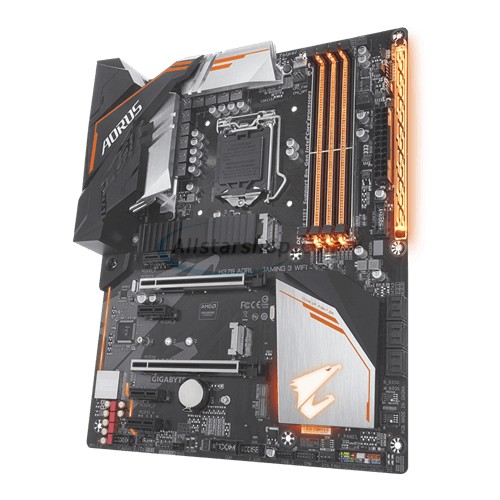

SKU: 800-58003E Mfg P/N: H370 AORUS GAMING 3 WIFI
  • Integrated Intel Graphics - DVI / HDMI
  • Max 64GB / 4x DDR4 DIMM / Up to 2666
  • 6x SATA 6Gb/s, 2x M.2 / RAID 0, 1, 5, 10
  • Up to 2x USB 3.1 (1x USB-C), 5x USB 3.0 (1x USB-C), 6x USB 2.0
  • 2x PCIe X16, 4x PCIe X1
Our Price: $138.50
List Price: $179.00 You save: $40.50
Availability: Usually ships within 1-2 business days
Quantity:


Specifications

CPU Support
LGA1151 socket for 8th Generation Intel Core i7/ i5/ i3 Processors
Number of Processor (s)
Single (Not Included)
Chipset
Intel H370 chipset
System Bios
UEFI AMI BIOS
Video card slot
PCIe 3.0 X16
Number of Memory Slots
4
Type of Memory Supported
288-pin DDR4 2666/2400/2133 MHz, non-ECC, un-buffered memory
Maximum RAM
64GB

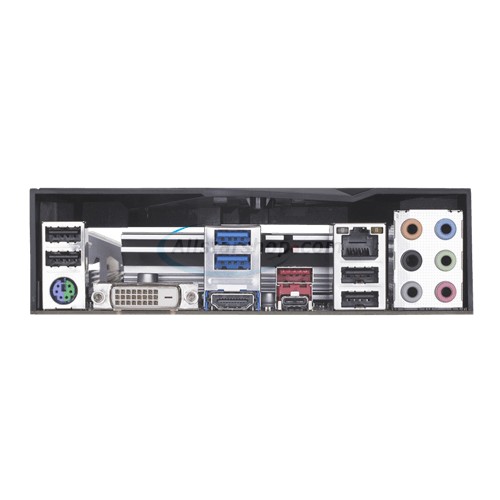

Back Panel I/O
  • 1 x PS/2 keyboard/mouse combo port
  • 1 x USB 3.1 Gen2 Type-A port
  • 1 x USB 3.1 Gen2 Type-C port
  • 2 x USB 3.0 (USB 3.1 Gen1) Type-A ports
  • 4 x USB 2.0 ports
  • 1 x HDMI
  • 1 x DVI
  • 1 x RJ45 LAN
  • 1 x Audio I/O
Number of PCI/PCI-Express Slots
  • 1 x PCIe 3.0 x16
  • 1 x PCIe 3.0 x16 (max. x4)
  • 4 x PCIe 3.0 x1
Integrated SATA/SAS
6 x SATA 6Gb/s
# of M.2 Ports
  • 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support)
  • 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x2 SSD support)
Integrated SATA/SAS RAID
RAID 0, 1, 5, 10
Integrated Audio
Realtek ALC1220 8-Channel High Definition Audio CODEC
Integrated Video
Integrated Intel Graphics from processor
Integrated LAN
Intel Gigabit LAN
USB
    Up to 13 x USB ports:
    • 1 x USB 3.1 Gen2 Type-A port on Back Panel I/O
    • 1 x USB 3.1 Gen2 Type-C ports on Back Panel I/O
    • 2 x USB 3.0 (USB 3.1 Gen1) Type-A ports on Back Panel I/O
    • 2 x USB 3.0 (USB 3.1 Gen1) ports via headers
    • 1 x USB 3.0 (USB 3.1 Gen1) Type-C port via header
    • 4 x USB 2.0 Ports on Back Panel I/O
    • 2 x USB 2.0 Ports via headers
Serial/Parallel Ports
1 x Serial port via header
PS/2 Ports
1 x PS/2 keyboard/mouse combo port
Form Factor
ATX
Dimensions
12" x 9.6"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Package Contents

  • H370 AORUS GAMING 3 WIFI motherboard
  • User's manual
  • Supporting DVD
  • I/O Shield
  • 2 x SATA 6Gb/s cables
  • M.2 screw(s)/M.2 standoff
  • G Connector
  • GC-CI22M_A CNVi Wi-Fi module
  • Wi-Fi antenna for the GC-CI22M_A
