SKU: 800-58091
  • Max 16GB / 4 x Dimm DDR3 2200(OC)/1333/1066/800
  • 2 x SATA 6Gb/s, 6 x SATA, 2 x eSATA / RAID 0, 1, 10, 5 / 1 x IDE / 1 x FDD
  • Up to 12 x USB 2.0 / 2 x USB 3.0 ports
  • 1 x PCI-E 2.0 X16, 1 x PCI-E X16 (X4), 3 x PCI-E X1, 2 x PCI
Our Price: Login to see price
Discontinued - Not orderable


Specifications

CPU Support
    LGA1156 socket:
    • Intel Core i7
    • Intel Core i5
Number of Processor (s)
Single (Not Included)
Chipset
  • Intel P55
System Bios
AWARD BIOS
Video card slot
PCI-Express 2.0 X16
Number of Memory Slots
4
Type of Memory Supported
240-pin DDR3 2200(OC)/1333/1066/800 Memory
Maximum RAM
16GB

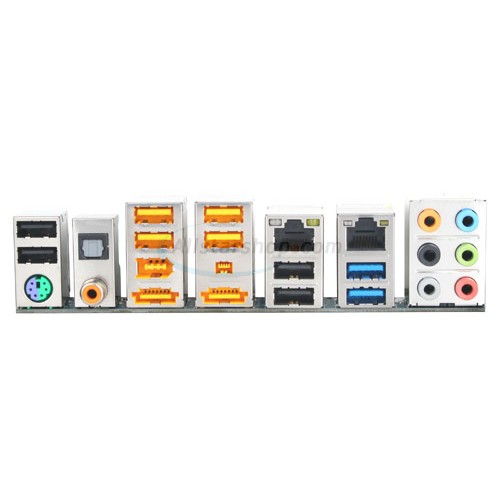

Back Panel I/O
  • 1 x PS/2 Keyboard/Mouse
  • 1 x Coaxial S/PDIF Out
  • 1 x Optical S/PDIF Out
  • 2 x eSATA ports
  • 8 x USB 2.0 ports
  • 2 x USB 3.0 ports
  • 2 x RJ45 LAN port
  • 1 x Audio I/O
    Number of PCI/PCI-Express Slots
    • 1 x PCI-Express 2.0 X16
    • 1 x PCI-Express X16 (X8)
    • 3 x PCI-Express X1
    • 2 x PCI
    On-Board EIDE/Floppy
    1 x UltraDMA 100/66/33 channel
    Integrated SATA/SAS
      Intel P55:
      • 6 x SATA II 3.0Gb/s
      Marvell 9128 :
      • 2 x SATA 6.0Gb/s
      JMB362 SATA2:
      • 2 x eSATA 3.0Gb/s
    Integrated SATA/SAS RAID
      Intel :
      • Supports RAID 0, 1, 5 and 10
    Integrated Audio
    Realtek ALC889 7.1 audio codec
    Integrated Video
    No
    Integrated LAN
    2 x Realtek 8111D Gigabit LAN controller
    USB
    Up to 12 x USB 2.0 ports:
    • 8 x USB ports on Back Panel I/O
    • 4 x USB ports via headers
    NEC chip:
    • 2 x USB 3.0/2.0 ports on the back panel
    IEEE 1394
  • T.I. TSB43AB23 chip
  • Up to 3 x IEEE 1394a ports:
    • 2 on the back panel
    • 1 via header
    • Serial/Parallel Ports
    • 1 x Serial Port via header
    • 1 x Parallel port via header
    PS/2 Ports
    1 x PS/2 Keyboard/Mouse
    Form Factor
    ATX
    Dimensions
    30.5cm x 24.4cm

    The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

    Warranty and Service

    Package Contents

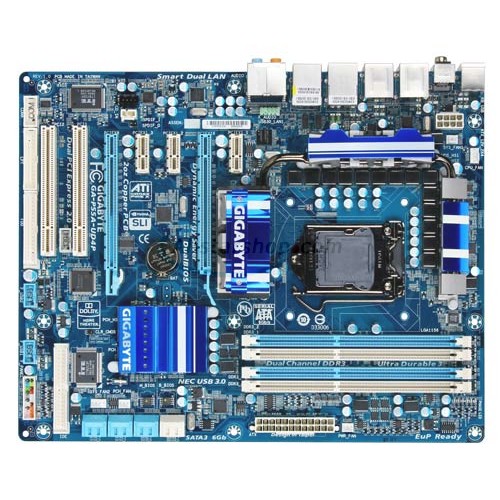

    • 1 x GA-P55-UD4P motherboard
    • 4 x SATA cables
    • 1 x IDE cable
    • I/O Shield
    • SLI bridge
    • User's Manual
    • Driver CD
