SKU: 800-58023A
  • Integrated AMD Radeon HD 7000 - DVI-D / HDMI / VGA
  • Max 64GB / 4 Dimm DDR3 1866/1600/1333/1066
  • 6 x SATA 6Gb/s / RAID 0, 1, 5, 10, JBOD
  • Up to 4 x USB 3.0, 8 x USB 2.0
  • 1 x PCIe 2.0 X16, 1 x PCIe 2.0 X16(X4), 1 x PCIe 2.0 X1, 1 x PCI
Our Price: Login to see price
Discontinued - Not orderable


Specifications

CPU Support
AMD Socket FM2 A-Series Processor
Number of Processor (s)
Single (Not Included)
Chipset
AMD A75 FCH
System Bios
AMI EFI BIOS
Video card slot
PCI-Express 2.0 X16
Number of Memory Slots
4
Type of Memory Supported
240-pin DDR3 1866/1600/1333/1066 MHz Non-ECC, Un-buffered Memory
Maximum RAM
64GB

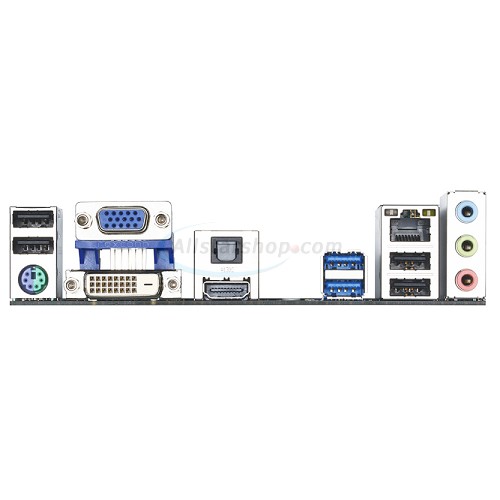

Back Panel I/O
  • 1 x PS/2 keyboard/mouse combo
  • 2 x USB 3.0
  • 4 x USB 2.0
  • 1 x DVI
  • 1 x 15-pin VGA
  • 1 x HDMI
  • 1 x RJ45 LAN port
  • 1 x Audio I/O
Number of PCI/PCI-Express Slots
  • 1 x PCI-Express 2.0 X16
  • 1 x PCIExpress 2.0 X4 using X16 slot
  • 1 x PCI-Express 2.0 X1
  • 1 x PCI
On-Board EIDE/Floppy
No
Integrated SATA/SAS
  • 6 x SATA 6Gb/s
Integrated SATA/SAS RAID
Supports RAID 0, 1, 10 and JBOD
Integrated Audio
Realtek ALC887 8-Channel High Definition Audio CODEC
Integrated Video
Integrated AMD Radeon HD 7000 Series Graphics in A-series APU
Integrated LAN
Realtek Gigabit LAN controller
Integrated SCSI
No
USB
    Up to 12 x USB ports:
    • 2 x USB 3.0 ports on Back Panel I/O
    • 2 x USB 3.0 ports via headers
    • 4 x USB 2.0 ports on Back Panel I/O
    • 4 x USB 2.0 ports via headers
eSATA
No
IEEE 1394
No
Form Factor
microATX
Dimensions
9.6" x 9.6"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.
