SKU: 800-58052
  • Support Dual AMD MP Athlon Class Processors (266MHz FSB)!
  • Supports Registered or Un-buffered DDR-266
  • Supports Dual ATA-133 IDE Channels with RAID 0,1
  • Intel 10/100 Mbps Ethernet LAN controllers onboard
  • Fan Fail/System Overheat Warning
Our Price: Login to see price
Discontinued - Not orderable


Specifications

CPU Support
Dual AMD MP Athlon Processor
Number of Processor (s)
Dual
Chipset
  • AMD 760 MPX Chipset
  • AMD 762 System Controller (Northbridge)
    • AMD 768 B2 Peripheral Bus Controller (Southbridge)
  • AMD 768 B2 Peripheral Bus Controller (Southbridge)
Front Side Bus (FSB)
266MHz
System Bios
Award BIOS on 2MB Flash RAM
Video card slot
4X
Number of Memory Slots
4X 184-pin DDR DIMM Sockets
Type of Memory Supported
Supports Registered or Un-buffered ECC DDR-266
Maximum RAM
  • Max. 4GB Registered (ECC) DDR-266 Memory
  • Max. 2GB Un-buffered (ECC) DDR-266

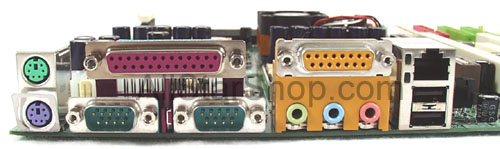

    • Back Panel I/O
    • 2X LAN (1X 10/100/1000, 1X 10/100)
    • 1 Parallel
    • 1 IrDA Connector
    • 2 COM ports
    • 4 USB ports (2 front, 2 rear)
    Number of PCI/PCI Express Slots
    • 2X 64-bit 66MHz
    • 3X 32-bit 33MHz
    Number of ISA Slots (16 Bit)
    No
    On-Board EIDE/Floppy
    • Dual ATA-133 IDE Channels
    • Dual ATA-100 IDE Channels
    Integrated IDE RAID
    Promise PDC 20276 RAID Controller Support RAID 0,1
    Integrated SATA/SAS
    No
    Integrated Audio
    AC97 Codec
    Integrated Video
    No
    Integrated LAN
    Intel 82550PM 10/100 Fast Ethernet LAN controllers onboard
    Integrated SCSI
    No
    USB
    4X USB (two front, two rear)
    IEEE 1394
    No
    Form Factor
    ATX
    Dimensions
    30.4cm x 26.9cm / 12¡¨W x 10.6¡¨D
    Additional information
    • Wake on LAN
    • Fan Fail/System Overheat Warning
    • System Voltage Detect
    • Case Open Intrusion
    • System Fan Revolution Detect
    • Support for Intel ZCR and Adaptec ZCR card (insert to the green PCI slot)

    The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

    Warranty and Service

    • Warranty Length: 1 year
    • Warranty Provider: Allstarshop.com
    • Service Contact: Allstarshop On-line RMA Request.
    • Technical Support: Gigabyte (626) 854-9338 or visit Gigabyte technical support online.

    Package Contents

    • 1X GA-7DPXDW-P Gigabyte Server Motherboard
    • IDE RAID drivers & User Manual
    • 3X IDE cable
    • 1X FDD cable
    • GA-7DPXDW-P User's Manual
    • Driver CD for motherboard driver & utility
    • I/O Back Panel
