SKU: 800-58046A

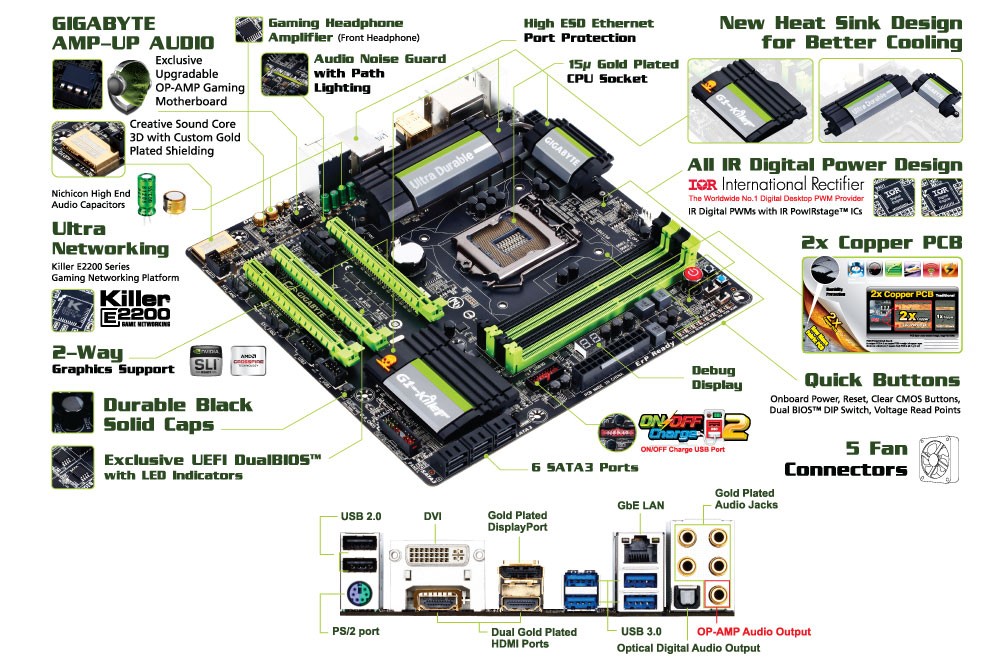

  • Integrated Intel Graphics - DVI / HDMI / DisplayPort
  • Max 32GB / 4 Dimm DDR3 1600/1333
  • 6 x SATA 6Gb/s / RAID 0, 1, 10, 5 / 0 x IDE / 0 x FDD
  • Up to 6 x USB 3.0, 6 x USB 2.0
  • 1 x PCIe 3.0 X16, 1 x PCIe 3.0 X16(X8), 1 x PCIe X16, 1 x PCIe X1
Our Price: Login to see price
Discontinued - Not orderable


Specifications

CPU Support
Socket 1150 for 4th generation Intel Core processors
Number of Processor (s)
Single (Not Included)
Chipset
Intel Z87 chipset
System Bios
AMI EFI BIOS
Video card slot
PCI-Express 3.0 X16
Number of Memory Slots
4
Type of Memory Supported
240-pin DDR3 1600/1333
Maximum RAM
32 GB

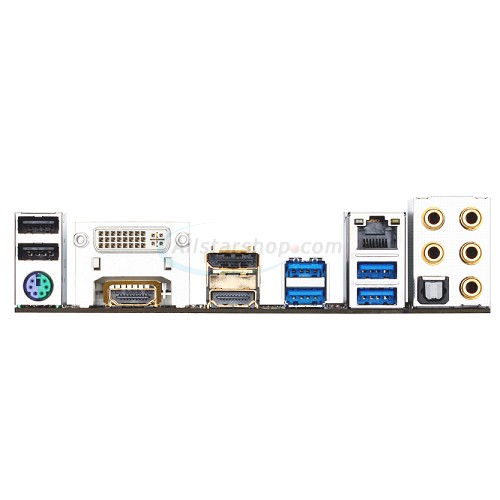

Back Panel I/O
  • 1 x PS/2 keyboard/mouse port
  • 4 x USB 3.0/2.0 ports
  • 2 x USB 2.0/1.1 ports
  • 1 x DVI port
  • 1 x HDMI port
  • 1 x DisplayPort
  • 1 x RJ-45 port
  • 1 x Audio I/O
Number of PCI/PCI-Express Slots
  • 1 x PCI-Express 3.0 X16
  • 1 x PCI-Express 3.0 X8 using X16 slot
  • 1 x 1 x PCI-Express X4 using X16 slot
  • 1 x PCI-Express X1
On-Board EIDE/Floppy
No
Integrated SATA/SAS
6 x SATA 6Gb/s through the Intel Z87 Express
Integrated SATA/SAS RAID
RAID 0, 1, 5 and 10
Integrated Audio
Creative Sound Core 3D 5.1-Channel High Definition Audio CODEC
Integrated Video
Integrated Intel Graphics
Integrated LAN
Qualcomm Atheros Killer E2201 Gigabit LAN
USB
    Up to 12 x USB ports:
    • 4 x USB 3.0 ports on Back Panel I/O
    • 2 x USB 3.0 ports via headers
    • 2 x USB 2.0 ports on Back Panel I/O
    • 4 x USB 2.0 ports via headers
eSATA
No
IEEE 1394
No
Serial/Parallel Ports
No
PS/2 Ports
1 x PS/2 keyboard/mouse port
Form Factor
microATX
Dimensions
9.6" x 9.6"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.
