SKU: 800-58145
  • Integrated Graphics - 2x DisplayPort
  • Max 64GB / 4 Dimm DDR4 2666 ECC UDIMM
  • 10x SATA 6Gb/s, 2x M.2 / RAID 0, 1, 5, 10
  • Up to 2x USB 3.1 (1x USB-C), 7x USB 3.0, 4x USB 2.0
  • 4x PCIe x16, 1x PCI
Our Price: Login to see price
Discontinued - Not orderable


Specifications

CPU Support
LGA1151 socket for Intel Xeon E-2100 family, Intel 9th, 8th Gen Core Processors
Number of Processor (s)
Single (Not Included)
Chipset
Intel C246 chipset
System Bios
AMI UEFI BIOS
Video card slot
PCIe 3.0 X16
Number of Memory Slots
4
Type of Memory Supported
288-pin DDR4 2666/2400 /2133 ECC/ non-ECC UDIMM
Maximum RAM
64GB

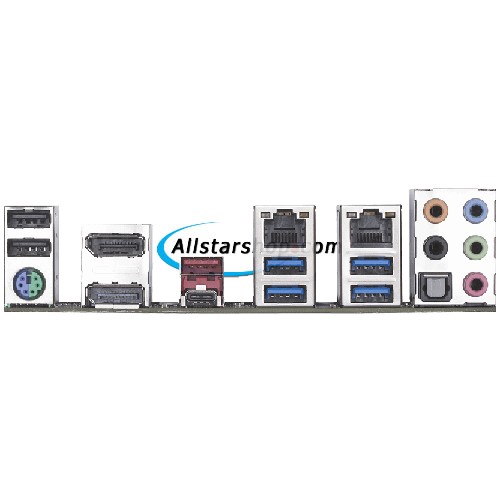

Back Panel I/O
  • 1 x PS/2 keyboard/mouse port
  • 1 x USB 3.1 Gen2 Type-A port
  • 1 x USB 3.1 Gen2 Type-C port
  • 4 x USB 3.0 (USB 3.1 Gen1) ports
  • 2 x USB 2.0 ports
  • 2 x DisplayPorts
  • 2 x RJ45 LAN
  • 1 x Audio I/O
Number of PCI/PCI-Express Slots
  • 1 x PCIe 3.0 x16
  • 1 x PCIe 3.0 x16 (max. x8)
  • 2 x PCIe 3.0 x16 (max. x4)
  • 1 x PCI
Integrated SATA/SAS
10 x SATA 6Gb/s
# of M.2 Ports
  • 1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA mode & x2 PCIe mode)
  • 1 x M.2 Socket 3, with M Key, type 2242/2260/2280/22110 storage devices support (x4 PCIe mode)
Integrated SATA/SAS RAID
RAID 0, 1, 5, 10
Integrated Audio
Realtek ALC1220-VB 8-channel high definition audio CODEC
Integrated Video
Integrated Intel Graphics from processor
Integrated LAN
2 x Intel I210 Gigabit Ethernet
USB
    Up to 13 x USB ports:
    • 1 x USB 3.1 Gen2 Type-A port on Back Panel I/O
    • 1 x USB 3.1 Gen2 Type-C port on Back Panel I/O
    • 4 x USB 3.0 (USB 3.1 Gen1) ports on Back Panel I/O
    • 1 x USB 3.0 (USB 3.1 Gen1) port internal
    • 2 x USB 3.0 (USB 3.1 Gen1) ports via headers
    • 2 x USB 2.0 ports on Back Panel I/O
    • 2 x USB 2.0 ports via headers
Serial/Parallel Ports
  • 2 x Serial ports via headers
  • 1 x Parallel port via header
PS/2 Ports
1 x PS/2 keyboard/mouse
Form Factor
ATX
Dimensions
12" x 9.6"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Package Contents

  • C246-WU4 motherboard
  • User's manual
  • I/O Shield
  • Supporting CD
  • 6 x SATA 6Gb/s cables
  • 1 x G Connector
  • 2 x Thermistors cables

Compatible Accessories

Memory

Kingston 8GB DDR4-2666 ECC CL19 SRx8 288-pin UDIMM
  • PC4-21300
  • single-rank x8
  • Thermal Sensor on DIMM
  • ECC UDIMM
  • Micron E-Die
Manufacturer: Kingston
Mfg P/N: KSM26ES8/8MR
Availability: Usually ships with 1-2 business days
