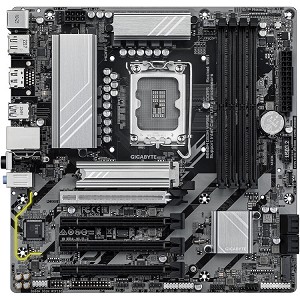

Gigabyte B860M DS3H WIFI6E B860 LGA1851 mATX Motherboard

Support: (626) 854-9338

Gigabyte B860M DS3H WIFI6E B860 LGA1851 mATX Motherboard

SKU:	800-58099F

Integrated Intel Graphics - 2x DisplayPort, HDMI
Max 256GB / 4x DDR5 DIMM / Up to 9066+ (O.C.)
4x SATA 6GB/s, 2x M.2 / RAID 0, 1, 10, 5
Up to 2x USB 3.2 G2 (1x USB-C), 4x USB 3.2 G1, 7x USB 2.0
1x PCIe 5.0 x16, 3x PCIe 4.0 x16 (x1)

Our Price:	Login to see price
Availability:	Temporarily out of stock

Accessories

: Intel Core Ultra 5 250K Plus 18-Core LGA1851 w/30MB cache CPU (BOX)

: Intel Core Ultra 7 270K Plus 24-Core LGA1851 w/36MB cache CPU (BOX)

: Kingston 16GB DDR5-5600 CL46 1Rx8 288-pin UDIMM

The B860M DS3H WIFI6E motherboard features the LGA 1851 socket, which support Intel Core Ultra processors (Series 2). With four DDR5 slots, one PCIe 5.0 x16 with PCIe UD Slot, two M.2 slots, and four SATA slots, this motherboard can provide the performance you need for both gaming and content creation.

Description

Specifications

CPU Support

LGA1851 socket for Intel Core Ultra Processors (Series 2)

Number of Processor (s)

Single (Not Included)

Chipset

Intel B860 chipset

System Bios

UEFI AMI BIOS

Video card slot

PCIe 5.0 x16

Number of Memory Slots

Type of Memory Supported

Up to DDR5 9066(O.C) ECC (operate in non-ECC mode), Non-ECC Un-buffered Memory

Maximum RAM

256GB

Back Panel I/O

1 x PS/2 keyboard/mouse port
1 x USB 3.2 Gen 2 Type-A port
2 x USB 3.2 Gen 1 ports
3 x USB 2.0/1.1 ports
1 x HDMI
2 x DisplayPorts
2 x antenna connectors (2T2R)
1 x RJ-45 port
1 x Audio I/O

Number of PCI/PCI-Express Slots

1 x PCIe 5.0 x16
3 x PCIe 4.0 x16 (x1 electrical)

Integrated SATA/SAS

4 x SATA 6Gb/s

# of M.2 Ports

1 x M.2 with M key, type 2280 supports PCIe 5.0 x4/x2
1 x M.2 with M key, type 2280 supports PCIe 4.0 x4/x2

Integrated SATA/SAS RAID

RAID 0, 1, 5, 10

Integrated Audio

Realtek 7.1 CH HD Audio

Integrated Video

Integrated Graphics from processor (Actual support may vary by CPU)

Integrated LAN

Realtek 2.5GbE LAN

Integrated Wifi

Intel Wi-Fi 6E AX211

USB

1 x USB 3.2 Gen 2 Type-A port on Back Panel I/O

1 x USB 3.2 Gen 2 Type-C port via header

2 x USB 3.2 Gen 1 ports on Back Panel I/O

2 x USB 3.2 Gen 1 ports via header

3 x USB 2.0/1.1 ports on Back Panel I/O

4 x USB 2.0/1.1 ports via headers

PS/2 Ports

1 x PS/2 keyboard/mouse port on Back Panel I/O

Form Factor

Micro ATX

Dimensions

9.6" x 9.6"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Warranty Length: 3 years
Warranty Provider: Gigabyte
Service Contact:
1. First 30-day from invoice date: Allstarshop On-line RMA Request
2. After 30-day from invoice date: Contact Gigabyte at (626) 854-9338 Or visit Gigabyte customer service online.
Technical Support: Gigabyte (626) 854-9338 or visit Gigabyte technical support online.
