Gigabyte B850I AORUS PRO AMD 850 Mini-ITX Motherboard

Support: (626) 854-9338

Gigabyte B850I AORUS PRO AMD 850 Mini-ITX Motherboard

SKU:	800-58000H

Integrated Radeon Graphics - HDMI
Max 128GB / 2x DDR5 DIMM / Up to 8400+ (O.C.)
2x SATA 6GB/s, 2x M.2 / RAID 0, 1
Up to 4x USB 3.2 G2 (2x USB-C), 4x USB 3.2 G1, 4x USB 2.0
1x PCIe 5.0 x16

Our Price:	Login to see price
Availability:	Usually ships within 1-2 business days

Accessories

: AMD Ryzen 7 7800X3D 8-Core 4.2GHz /8MB cache AM5 CPU (Retail)

: AMD Ryzen 7 9800X3D 8-Core 4.7GHz /8MB cache AM5 CPU (Retail)

: AMD Ryzen 7 9850X3D 8-Core 4.7GHz /8MB cache AM5 CPU (Retail)

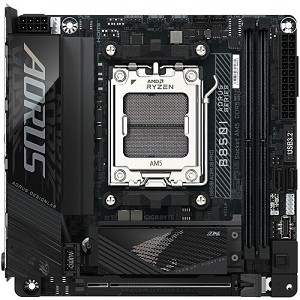

The Gigabyte B850I AORUS PRO is an AM5 mini-ITX motherboard that supports AMD Ryzen 7000, 8000, and 9000 Series processors. It features an 8+2+1 digital VRM design, which provides stable power delivery and is suitable for everything from mainstream Ryzen CPUs up to Ryzen 9 X3D processors.

Description

Specifications

CPU Support

AMD Ryzen 9000/ 8000/ 7000 series processors

Number of Processor (s)

Single (Not Included)

Chipset

AMD B850

System Bios

UEFI BIOS

Video card slot

PCIe 5.0 x16

Number of Memory Slots

Type of Memory Supported

Up to DDR5-8400 (O.C.)

Maximum RAM

128GB

Back Panel I/O

1 x USB 3.2 Gen2 Type-C port
2 x USB 3.2 Gen2 Type-A ports
2 x USB 3.2 Gen1 Type-A ports
2 x USB 2.0
1 x HDMI
1 x RJ45 LAN
1 x Audio I/O
2 x Antenna connectors

Number of PCI/PCI-Express Slots

1 x PCIe 5.0 x16

Integrated SATA/SAS

2 x SATA 6Gb/s

# of M.2 Ports

1 x M.2 with M key, type 2280
- Ryzen 9000/7000 supports PCIe 5.0 x4/x2
- Ryzen 8000 supports PCIe 4.0 x4/x2
1 x M.2 with M key, type 2280 supports PCIe 4.0 x4/x2

Integrated SATA/SAS RAID

SATA RAID 0, 1

Integrated Audio

Realtek ALC4080 HD Audio

Integrated Video

Integrated Graphics from processor (Actual support may vary by CPU)

Integrated LAN

Realtek 2.5Gbe LAN

Integrated Wifi

Realtek RTL8922AE Wi-Fi7 & Bluetooth 5.4

USB

1 x USB 3.2 Gen2 Type-C port on Back Panel I/O
1 x USB 3.2 Gen2 Type-C port via header
2 x USB 3.2 Gen2 Type-A ports on Back Panel I/O
2 x USB 3.2 Gen1 Type-A ports on Back Panel I/O
2 x USB 3.2 Gen1 Type-A ports via header
2 x USB 2.0 on Back Panel I/O
2 x USB 2.0 via header

Form Factor

Mini-ITX

Dimensions

6.7" x 6.7"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Warranty Length: 3 years
Warranty Provider: Gigabyte
Service Contact:
1. First 30-day from invoice date: Allstarshop On-line RMA Request
  This item is returnable for replacement only. It can only be exchanged with the same item.
2. After 30-day from invoice date: Contact Gigabyte at (626) 854-9338 Or visit Gigabyte customer service online.
Technical Support: Gigabyte (626) 854-9338 or visit Gigabyte technical support online.
