SKU: 800-58028F
  • Max 128GB / 4x DDR4 DIMM / Up to 4000(O.C.)
  • 4x SATA 6GB/s, 2x M.2 / RAID 0, 1, 10
  • Up to 6x USB 3.2 G1, 6x USB 2.0
  • 2x PCIe x16, 1x PCIe x1
Our Price: $108.95
List Price: $129.95 You save: $21.00
Availability: Temporarily out of stock
  Alert Me



Specifications

CPU Support
  • AMD AM4 3rd Gen Ryzen processor
  • Not Compatible with AMD Ryzen 5 3400 G and Ryzen 3200 G
Number of Processor (s)
Single (Not Included)
Chipset
AMD B550
System Bios
AMI UEFI BIOS
Video card slot
PCIe 4.0/3.0 x16
Number of Memory Slots
4
Type of Memory Supported
DDR4 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz ECC and non-ECC, Un-buffered Memory
Maximum RAM
128GB

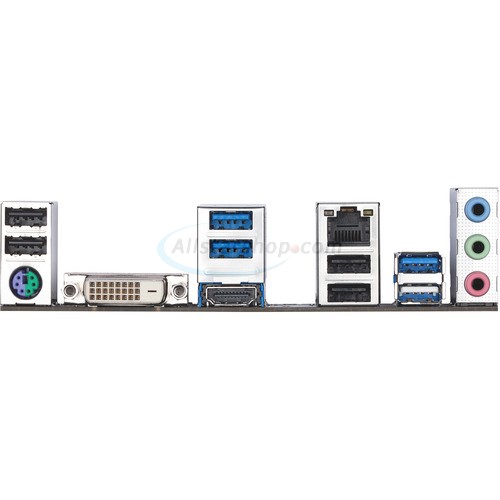

Back Panel I/O
  • 1 x PS/2 keyboard/mouse
  • 4 x USB 3.2 Gen1 ports
  • 4 x USB 2.0 ports
  • 1 x DVI-D
  • 1 x HDMI
  • 1 x RJ-45 LAN
  • 1 x Audio I/O
Number of PCI/PCI-Express Slots
  • 1 x PCIe 4.0 x16
  • 1 x PCIe 3.0x16 (Max. x4)
  • 1 x PCIe 3.0 x1
Integrated SATA/SAS
4 x SATA
# of M.2 Ports
  • 1 x M.2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support SATA & PCIe 4.0 x4 mode
  • 1 x M.2 socket 3, with M key, type 2242/2260/2280 storage devices support SATA & PCIe 3.0 x2 mode
Integrated SATA/SAS RAID
RAID 0, 1, 10
Integrated Audio
Realtek ALC887 7.1 CH HD Audio Codec
Integrated Video
Integrated Graphics from processor (Actual support may vary by CPU)
Integrated LAN
Realtek Gigabit LAN
USB
  • 4 x USB 3.2 Gen1 Type-A ports on Back Panel I/O
  • 2 x USB 3.2 Gen1 ports via header
  • 4 x USB 2.0 ports on Back Panel I/O
  • 2 x USB 2.0 ports via header
Serial/Parallel Ports
1 x Serial port via header
PS/2 Ports
1 x PS/2 keyboard/mouse
Form Factor
Micro ATX
Dimensions
9.6" x 9.6"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Package Contents

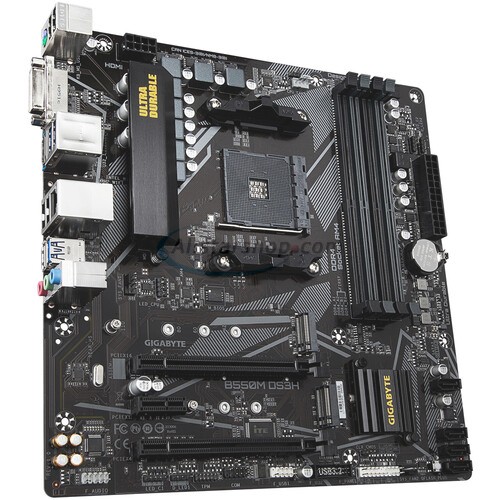

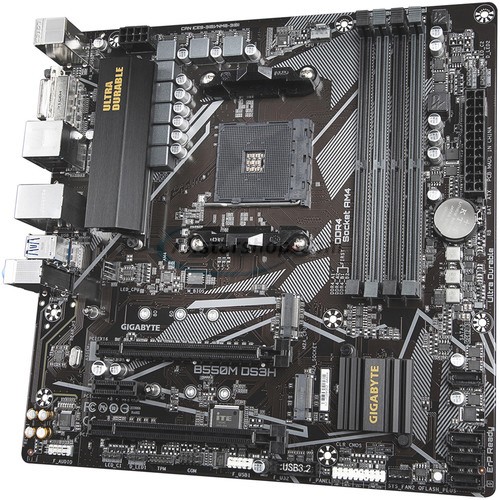

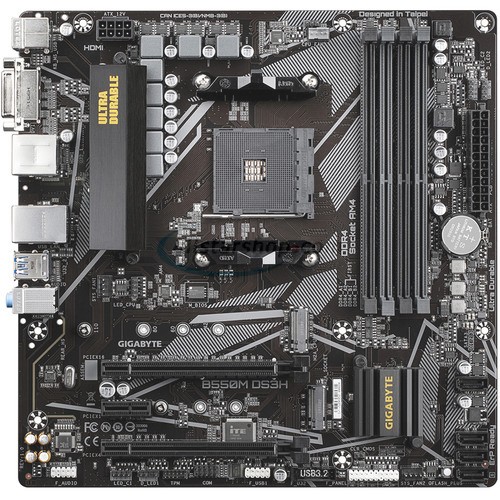

  • Gigabyte B550M DS3H motherboard
  • User's Manual
  • Support CD
  • I/O Shield
  • 2 x SATA Data Cables
