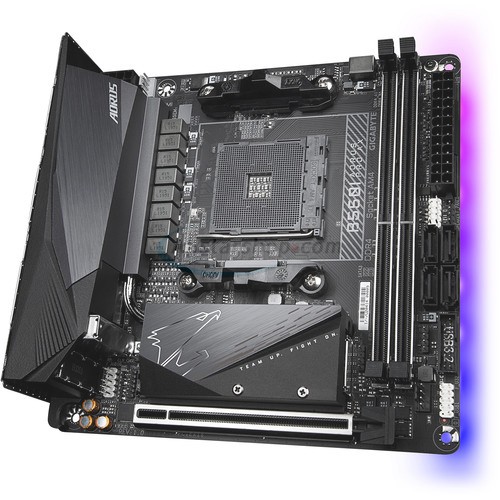

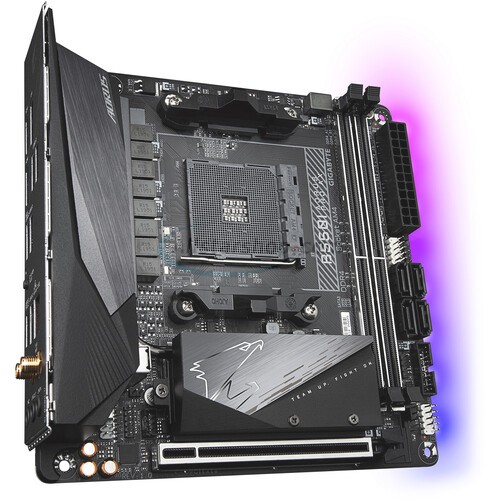

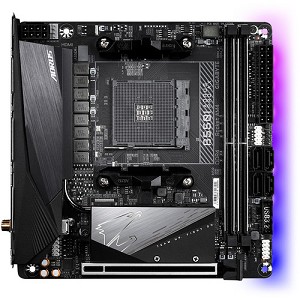

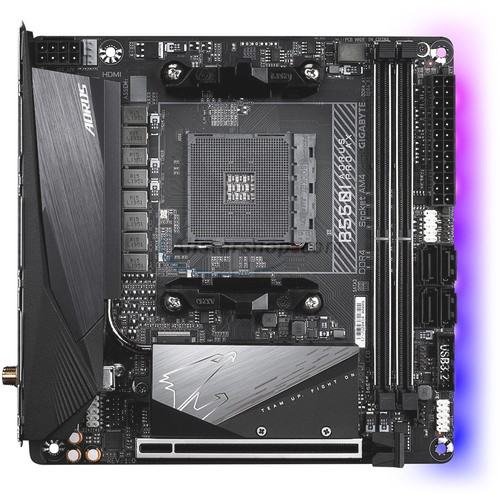

SKU: 800-58029F
  • Max 64GB / 2x DDR4 DIMM / Up to 4800(O.C.)
  • 4x SATA 6GB/s, 2x M.2 / RAID 0, 1, 10
  • Up to 2x USB 3.2 G2 (1x USB-C), 6x USB 3.2 G1, 2x USB 2.0
  • 1x PCIe x16
Our Price: $198.95
List Price: $234.95 You save: $36.00
Availability: Temporarily out of stock
  Alert Me



Specifications

CPU Support
  • AMD AM4 3rd Gen Ryzen processor
  • Not Compatible with AMD Ryzen 5 3400 G and Ryzen 3200 G
Number of Processor (s)
Single (Not Included)
Chipset
AMD B550
System Bios
AMI UEFI BIOS
Video card slot
PCIe 4.0/3.0 x16
Number of Memory Slots
2
Type of Memory Supported
DDR4 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz ECC and non-ECC, Un-buffered Memory
Maximum RAM
64GB

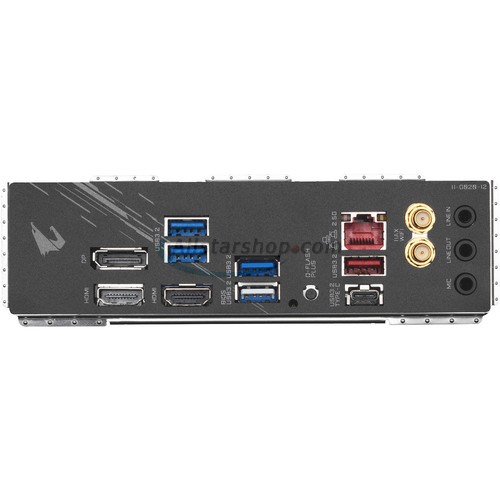

Back Panel I/O
  • 1 x USB 3.2 Gen2 Type-A port
  • 1 x USB 3.2 Gen2 Type-C port
  • 4 x USB 3.2 Gen1 Type-A ports
  • 1 x DisplayPort
  • 2 x HDMI
  • 1 x RJ-45 LAN
  • 1 x Audio I/O
  • 2 x SMA antenna connectors (2T2R)
Number of PCI/PCI-Express Slots
1 x PCIe 4.0 x16
Integrated SATA/SAS
4 x SATA 6Gb/s
# of M.2 Ports
  • 1 x M.2 socket 3, with M key, type 2260/2280 storage devices support SATA & PCIe 4.0 x4 mode
  • 1 x M.2 socket 3, with M key, type 2260/2280 storage devices support SATA & PCIe 3.0 x4 mode
Integrated SATA/SAS RAID
RAID 0, 1, 10
Integrated Audio
Realtek ALC1220-VB 7.1 CH HD Audio Codec
Integrated Video
Integrated Graphics from processor (Actual support may vary by CPU)
Integrated LAN
Realtek 2.5 Gigabit LAN
Integrated Wifi
Intel Wi-Fi 6 AX200
USB
  • 1 x USB 3.2 Gen2 Type-A port on Back Panel I/O
  • 1 x USB 3.2 Gen2 Type-C port on Back Panel I/O
  • 4 x USB 3.2 Gen1 Type-A ports on Back Panel I/O
  • 2 x USB 3.2 Gen1 ports via header
  • 2 x USB 2.0 ports via header
Form Factor
Mini-ITX
Dimensions
6.7" x 6.7"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Package Contents

  • Gigabyte B550I AORUS PRO AX motherboard
  • User's Manual
  • Support CD
  • 2 x SATA Data Cables
  • M.2 screw/M.2 standoff
  • Antenna
  • Fan power extension cable
  • RGB LED strip extension cable
