SKU: 800-58023F
  • Max 128GB / 4x DDR4 DIMM / Up to 5200(O.C.)
  • 6x SATA 6GB/s, 3x M.2 / RAID 0, 1, 10
  • Up to 6x USB 3.2 G2 (1x USB-C), 2x USB 3.1 G1, 10x USB 2.0
  • 3x PCIe x16
Our Price: $308.95
List Price: $359.00 You save: $50.05
Availability: Temporarily out of stock
  Alert Me



Specifications

CPU Support
  • AMD AM4 3rd Gen Ryzen processor
  • Not Compatible with AMD Ryzen 5 3400 G and Ryzen 3200 G
Number of Processor (s)
Single (Not Included)
Chipset
AMD B550
System Bios
AMI UEFI BIOS
Video card slot
PCIe 4.0/3.0 x16
Number of Memory Slots
4
Type of Memory Supported
DDR4 5200(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz ECC and non-ECC, Un-buffered Memory
Maximum RAM
128GB

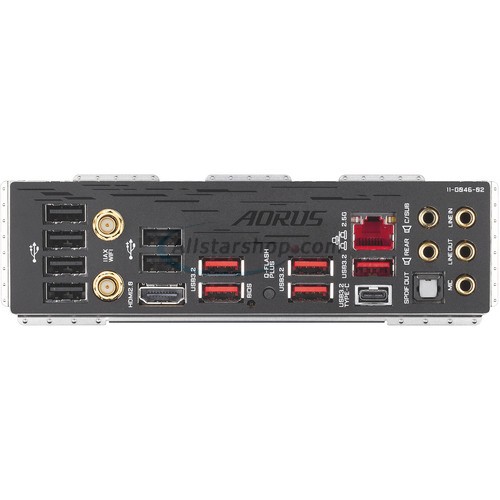

Back Panel I/O
  • 5 x USB 3.2 Gen2 Type-A ports
  • 1 x USB 3.2 Gen2 Type-C port
  • 6 x USB 2.0 ports
  • 1 x HDMI
  • 1 x RJ45 LAN
  • 1 x Audio I/O
  • 2 x SMA antenna connectors
Number of PCI/PCI-Express Slots
  • 1 x PCIe 4.0 x16
  • 2 x PCIe 3.0 x16 (Max. x4)
Integrated SATA/SAS
6 x SATA 6Gb/s
# of M.2 Ports
  • 1 x M.2 socket 3, with M key, type 2242/2280/22110 storage devices support SATA & PCIe 4.0 x4 mode
  • 2 x M.2 socket 3, with M key, type 2242/2280/22110 storage devices support PCIe 4.0 x4 mode
Integrated SATA/SAS RAID
RAID 0, 1, 10
Integrated Audio
Realtek ALC1220-VB 7.1 CH HD Audio Codec
Integrated Video
Integrated Graphics from processor (Actual support may vary by CPU)
Integrated LAN
Realtek 2.5 Gigabit LAN
Integrated Wifi
Intel Wi-Fi 6 AX200
USB
  • 5 x USB 3.2 Gen2 Type-A ports on Back Panel I/O
  • 1 x USB 3.2 Gen2 Type-C port on Back Panel I/O
  • 2 x USB 3.2 Gen1 ports via header
  • 6 x USB 2.0 ports on Back Panel I/O
  • 4 x USB 2.0 ports via headers
Form Factor
ATX
Dimensions
12" x 9.6"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Package Contents

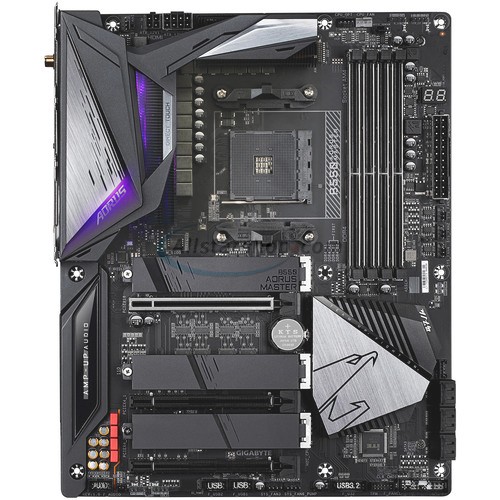

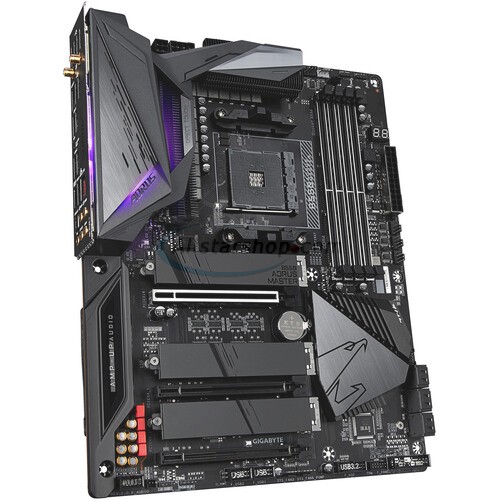

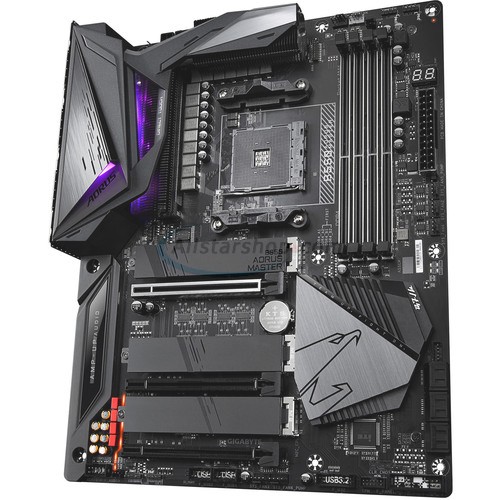

  • Gigabyte B550 AORUS MASTER motherboard
  • Quick Installation Guide
  • User's Manual
  • Support CD
  • 4 x SATA Data Cables
  • 2 x thermistor cables
  • 1 x noise detection cable
  • 1 x RGB LED strip extension cable
  • 1 x addressable LED strip adapter cable
  • 1 x G Connector
  • 2 x Velcro cable ties
  • 1 x Antenna
