SKU: 800-58133A
  • Max 64GB / 4x DDR4 DIMM / Up to 3200(O.C.)
  • 4x SATA 6Gb/s, 1x M.2 / RAID 0, 1, 10
  • Up to 6x USB 3.0, 8x USB 2.0
  • 2x PCIe X16, 1x PCIe X1
Our Price: Login to see price
Discontinued - Not orderable


Specifications

CPU Support
AMD AM4 Socket AMD Ryzen 2nd Generation / Ryzen with Radeon Vega Graphics / Ryzen 1st Generation Processors
Number of Processor (s)
Single (Not Included)
Chipset
AMD B450
System Bios
AMI UEFI BIOS
Video card slot
PCIe 3.0 X16
Number of Memory Slots
4
Type of Memory Supported
288-pin DDR4 3200(O.C.)/2933/2667/2400/2133 MHz Non-ECC, Un-buffered Memory
Maximum RAM
64GB

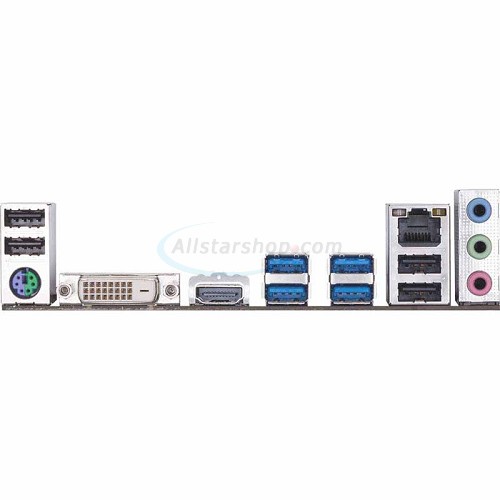

Back Panel I/O
  • 1 x PS/2 keyboard/mouse port
  • 4 x USB 3.0 (USB 3.1 Gen1) Type-A ports
  • 4 x USB 2.0 ports
  • 1 x HDMI
  • 1 x DVI-D
  • 1 x RJ45 LAN
  • 1 x Audio I/O
Number of PCI/PCI-Express Slots
  • 1 x PCIe 3.0 x16
  • 1 x PCIe 2.0 x16 (max at x4)
  • 1 x PCIe 2.0 x1
Integrated SATA/SAS
4 x SATA 6Gb/s
# of M.2 Ports
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
Integrated SATA/SAS RAID
RAID 0, 1, 10
Integrated Audio
Realtek ALC887 8-Channel High Definition Audio CODEC
Integrated Video
Integrated AMD Radeon Vega Graphics (Actual support may vary by CPU)
Integrated LAN
Realtek Gigabit LAN
USB
    Up to 14 x USB ports:
    • 4 x USB 3.0 (USB 3.1 Gen1) Type-A ports on Back Panel I/O
    • 2 x USB 3.0 (USB 3.1 Gen1) Type-A ports via headers
    • 4 x USB 2.0 Type-A ports on Back Panel I/O
    • 4 x USB 2.0 ports via headers
Serial/Parallel Ports
1 x Serial port via header
Form Factor
Micro ATX
Dimensions
9.6" x 8.46"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Package Contents

  • B450M DS3H motherboard
  • User's manual
  • 1 x Supporting CD
  • I/O Shield
  • 2 x SATA cables
  • M.2 Screw / M.2 standoff
