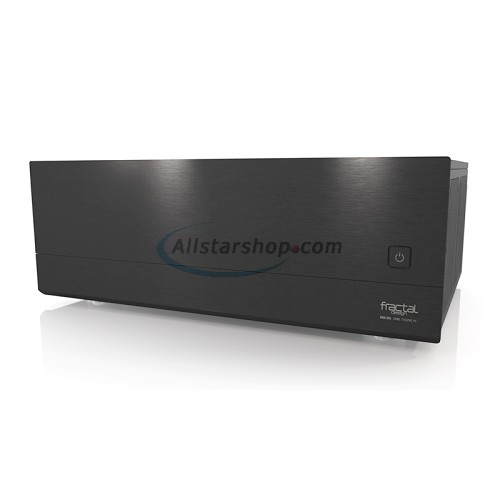

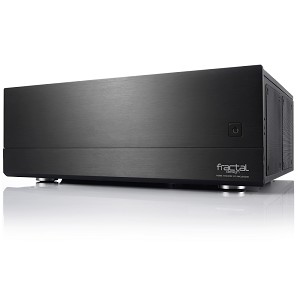

Fractal Design Node 605 Desktop Chassis - (Discontinued)

Support: 855-446-3722

Fractal Design Node 605 Desktop Chassis - (Discontinued)

SKU:	990-08900A

Motherboard: ATX, mATX, Mini ITX, DTX
Drive Bays: Ext - 1 x Slim ODD / Int - 4 x 3.5" or 2.5"
Front Panel I/O: 2 x USB 3.0, 1 x FireWire 1394, 1 x Audio In, 1 x Audio Out
Fans: 2 x 120mm Included
Max VGA Card Length: 280mm / Max CPU Cooler Height: 125mm

Our Price:	Login to see price
Discontinued	- Not orderable

Similar Items

: Antec VSK2000-U3 Micro-ATX Slim Desktop Case

The Node 605 highlights a minimalistic, sleek Scandinavian appeal which is designed to integrate into your home theatre equipment.Featuring a stunning exterior appearance accompanied by a modern, black interior with sound and vibration dampening materials, the Fractal Design Node 605 supports a full ATX motherboard as well as a graphics card up to 280mm in length.Cleverly hidden behind the access panel on the solid 8mm thick aluminum front panel are two USB 3.0 ports, a FireWire port and a multi-format card reader for multiple formats.

Graphics Card Compatibility:

180 mm with both hard drive cages mounted

255 mm with one hard drive cage mounted

290 mm in the top two ATX expansion card slots with two hard drive cages mounted

280 mm in the top four ATX expansion card slots with one hard drive cage mounted, containing one 3.5" HDD and one 2.5" SSD

Description

180 mm with both hard drive cages mounted

255 mm with one hard drive cage mounted

290 mm in the top two ATX expansion card slots with two hard drive cages mounted

280 mm in the top four ATX expansion card slots with one hard drive cage mounted, containing one 3.5" HDD and one 2.5" SSD

Specifications

M/B Format

ATX

mATX

Mini-ITX

DTX

Ext. Bay (s)

1 x Slim ODD

Int. Bay (s)

4 x 3.5" or 2.5"

Cooling Fan (s)

Included

2 x 120mm

Up to 5 Fans (3 x 120mm + 2 x 80mm)

Power Supply

Not Included
180 mm (including any modular connectors) with both hard drive cages mounted or 190 mm (excluding cables and any modular connectors) with one hard drive cage mounted

USB Port (s)

2 x USB 3.0

FireWire Port (s)

1 x 1394

Audio Port

1 x In

1 x Out

Expansion Slots

Dimensions

445 x 164 x 349 mm

General Information

Manufacturer

Fractal Design

Manufacturer Part Number

FD-CA-NODE-605-BL

Manufacturer Website Address

www.fractal-design.com

Product Line

Node

Product Model

605

Product Type

System Cabinet

Technical Information

Motherboard Supported

DTX

ATX

Mini ITX

Micro ATX

Number of Fans Supported

Number of Fans Installed

Features

Fan Speed Controller

Bays

Number of Total Bays

I/O Expansions

Number of Expansion Slots

Interfaces/Ports

Front USB

Yes

Front FireWire

Yes

Front Audio In

Yes

Front Audio Out

Yes

Interfaces/Ports

1 x Mini-phone Audio Out Front

1 x IEEE 1394 FireWire Front

1 x Mini-phone Audio In Front

2 x USB 3.0 USB Front

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Warranty Length: 1 year
Warranty Provider: Fractal Design
Service Contact:
1. First 30-day from invoice date: Allstarshop On-line RMA Request
2. After 30-day from invoice date: Contact Fractal Design at 855-446-3722
Technical Support: Fractal Design 855-446-3722 or visit Fractal Design technical support online.

Package Contents

Node 605 Desktop Chassis
User Manual
Accessory Box
