SKU: 992-21355D
  • 92% Efficiency - 80PLUS Platinum
  • 1 x +12V Rail
  • 6x 6+2-pin PCI-E connector
  • Dimensions: 150mm x 86mm x 200mm
  • Zero RPM Fan Mode
Our Price: Login to see price
Discontinued - Not orderable


Specifications

Efficiency
92% 80 PLUS Platinum
Fans
1 x 135mm
MTBF
100,000 Hours
Protection
  • Over-voltage protection
  • Over-current protection
  • Short-circuit protection
  • Over-temperature protection
    • Version Support
    ATX12V v2.4 and EPS 2.92
    Current
    12A - 6A
    Frequency
    47Hz - 63Hz
    Output Power
    850W
    Output Voltage
    Output VoltageOutput Current
    +3.3V25A
    +5V25A
    +12V170.8A
    -12V0.8A
    +5Vsb3AA
    Input Voltage
    100V - 240V

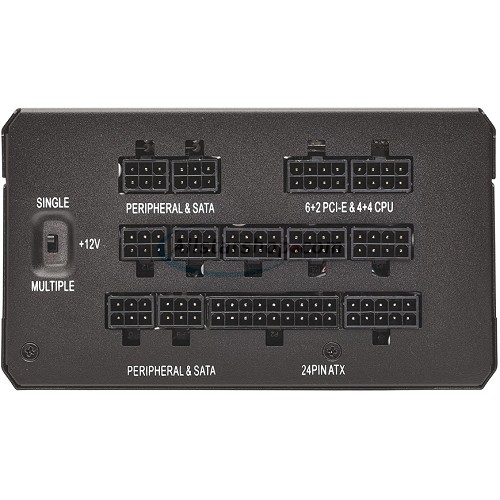

    Connectors
  • 1 x 24-Pin Main
  • 2 x 8-pin EPS-12V
  • 1 x Floppy
  • 6 x 4-pin Molex
  • 16 x SATA
  • 6 x PCI-E
    • Dimensions
    150mm x 86mm x 200mm
    Certifications & Standards
    80 PLUS Platinum

    The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

    Warranty and Service

    • Warranty Length: 7 years
    • Warranty Provider: Corsair
    • Service Contact:
      1. First 30-day from invoice date: Allstarshop On-line RMA Request
      2. After 30-day from invoice date: Contact Corsair at 888-222-4346
    • Technical Support: Corsair 888-222-4346

    Package Contents

    • Corsair PSU
    • Power Cord
    • Mounting screw

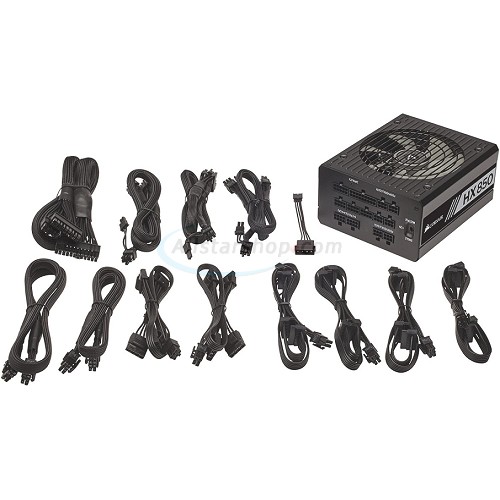

    • Modular Cables
