SKU: 992-21348
  • 80 Plus Bronze
  • 1 x +12V Rail
  • 2 x PCI-E Connector / 6 x SATA Connector
Our Price: Login to see price
Discontinued - Not orderable


Specifications

General Information
Manufacturer
Corsair
Manufacturer Part Number
CP-9020015-NA
Manufacturer Website Address
Brand Name
Corsair
Product Series
CX
Product Model
CX750
Product Type
ATX12V & EPS12V Power Supply
Technical Information
Efficiency
85%
Power Factor Correction (PFC)
Active
Number of Fans
1
Protection Type
  • Over Power
  • Over Voltage
  • Short Circuit
  • Under Voltage
  • ATI CrossFire Supported
    Yes
    NVIDIA SLI Supported
    Yes
    Reliability
    MTBF
    100000 Hour
    Power Description
    Input Voltage Type
    AC
    Input Voltage
  • 220 V AC
  • 110 V AC
  • Input Voltage Range
    90 V AC to 264 V AC
    Number of +12V Rails
    1
    Output Voltage
  • -12 V DC @ 800 mA
  • 12 V DC @ 62 A
  • 5 V DC @ 25 A
  • 5 V DC @ 3 A
  • 3.3 V DC @ 25 A
  • Input Current
  • 5 A @ 220V
  • 10 A @ 110V
  • Output Power
    750 W
    Interfaces/Ports
    Receptacles
  • 1 x 24-pin ATX12V Motherboard
  • 2 x Serial ATA
  • 2 x Floppy Drive
  • 4 x PCI-E
  • 1 x 8-pin EPS12V Motherboard
  • Physical Characteristics
    Form Factor
    Internal
    Height
    3.4"
    Depth
    6.3"
    Weight (Approximate)
    7.20 lb
    Miscellaneous
    Green Compliant
    Yes
    Green Compliance Certificate/Authority
    80 Plus Bronze
    Country of Origin
    China

    The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

    Warranty and Service

    • Warranty Length: 7 years
    • Warranty Provider: Corsair
    • Service Contact:
      1. First 30-day from invoice date: Allstarshop On-line RMA Request
      2. After 30-day from invoice date: Contact Corsair at 888-222-4346
    • Technical Support: Corsair 888-222-4346

    Package Contents

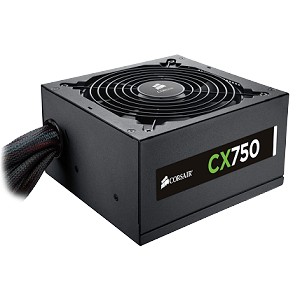

    • Corsair CX750 ATX12V / EPS12V 750W PSU
