SKU: 992-11415A
  • 80% + efficiency
  • 1 x +12V rail
  • 2 x 6+2-pin PCI-E connectors
  • MTBF: > 100,000 hours
  • ATX 12V V2.3
Our Price: Login to see price
Discontinued - Not orderable


Specifications

Efficiency
80%
Fans
1 x 120mm
MTBF
> 100,000 Hours
Protection
OVP / UVP / OPP / OTP / SCP
Version Support
ATX12V V2.3
Current
10A@115Vac , 6A@230Vac
Frequency
47-63Hz
Output Power
700W
Output Voltage
Output VoltageOutput Current
+3.3V25A
+5V25A
+12V152A
-12V0.5A
+5Vsb2.5A
Input Voltage
90-264Vac (Auto Range)
Connectors
  • 1 x 20+4-pin MB Power
  • 1 x 4+4-pin CPU 12V
  • 2 x 6+2-pin PCI-E
  • 6 x SATA
  • 3 x 4-pin Peripheral
  • 1 x 4-pin Floppy

    • The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

    Warranty and Service

    • Warranty Length: 2 years
    • Warranty Provider: Cooler Master
    • Service Contact:
      1. First 30-day from invoice date: Allstarshop On-line RMA Request
      2. After 30-day from invoice date: Contact Cooler Master at (909) 673-9880
    • Technical Support: Cooler Master (909) 673-9880

    Package Contents

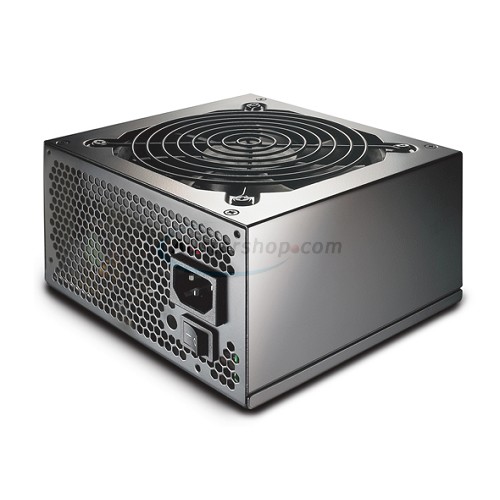

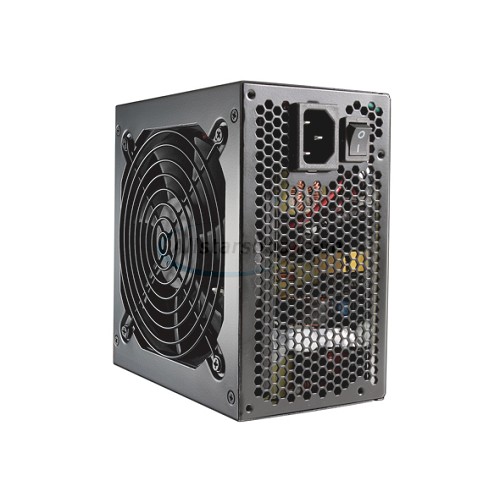

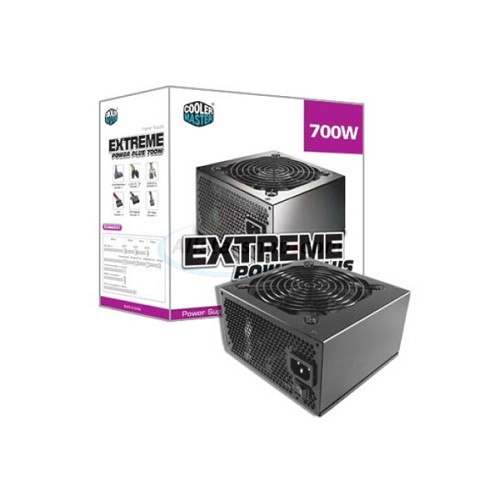

    • Cooler Master eXtreme Power Plus 700W PSU
